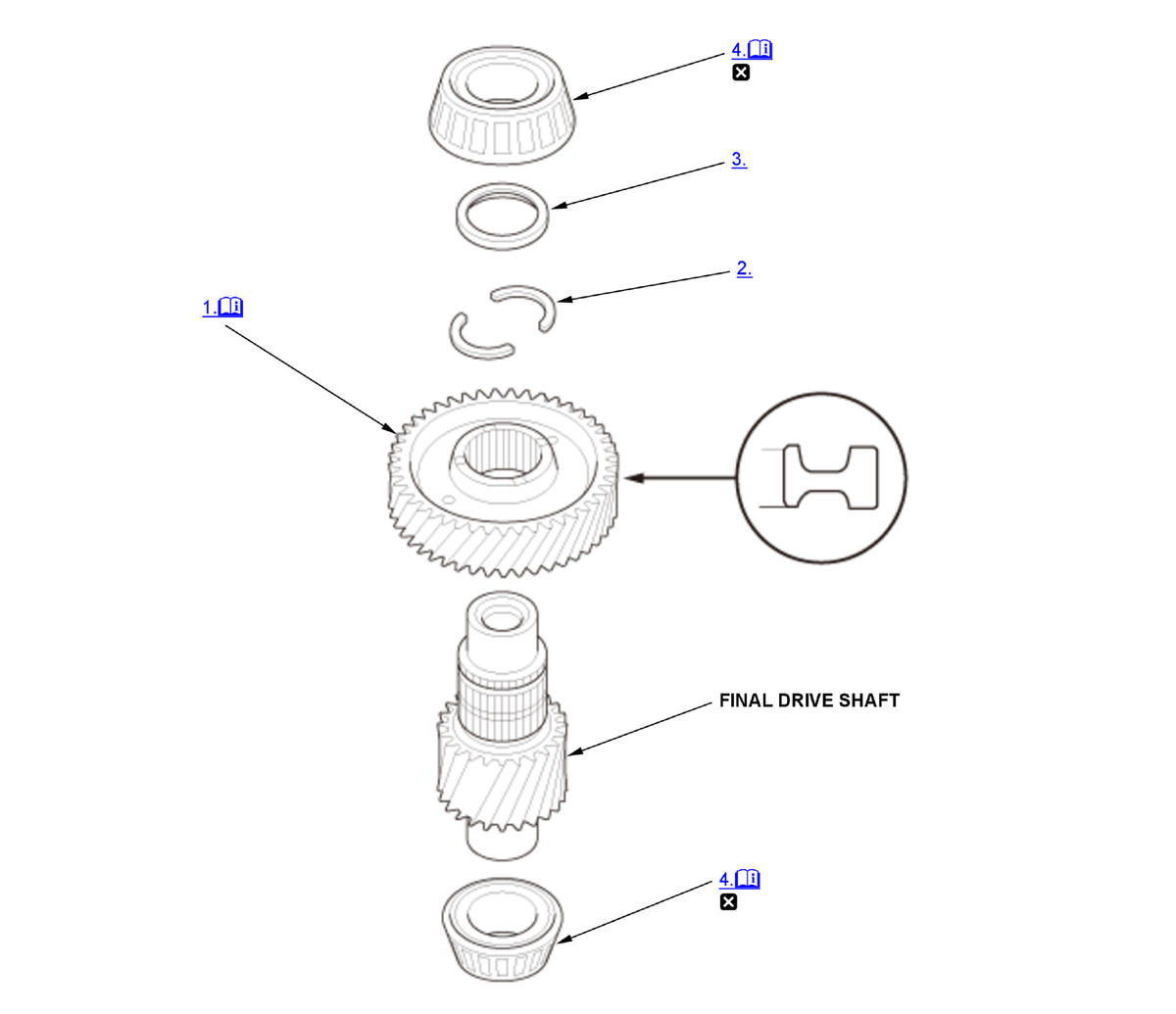

Final Drive Shaft Disassembly and Reassembly: Reassembly

NOTE:

• Where icon is shown, further information shown below.
• The bearing and the bearing outer race should be replaced as a set.
• Adjust the final drive shaft tapered roller bearing preload whenever the bearing is replaced.
• Apply a light coat of clean transmission fluid on all parts before installation.

1

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes and precautions
	Replace

1. Secondary Driven Gear - Install

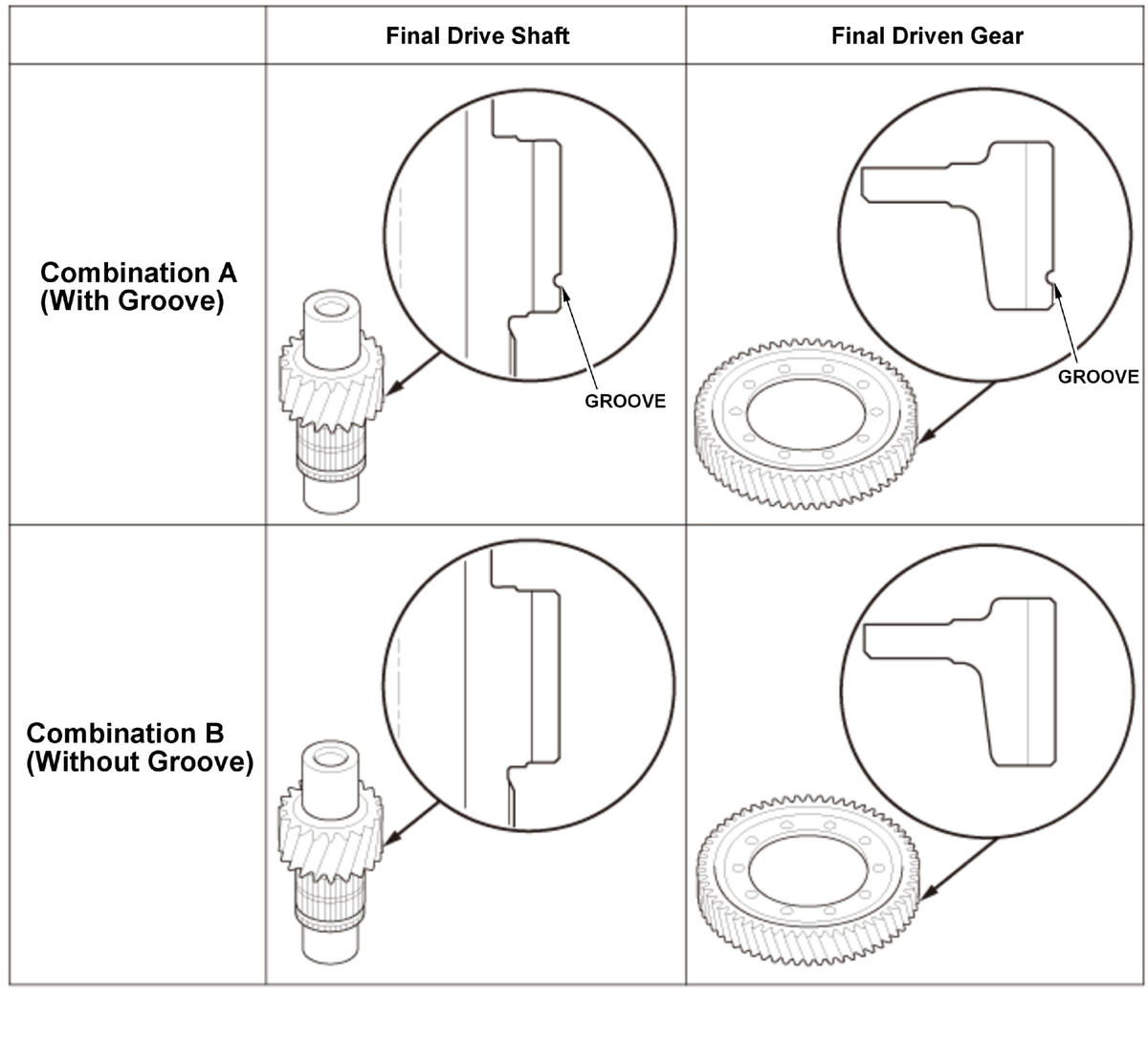

   NOTE: Make sure to assemble the final drive shaft and the final driven gear correctly (Combination A or B) as shown in the chart if either one of them or both are to be replaced. Correct combinations of the shaft and gear can be identified by the presence or the absence of the groove as shown in the chart.

   Courtesy of HONDA, U.S.A., INC.

   Courtesy of HONDA, U.S.A., INC.

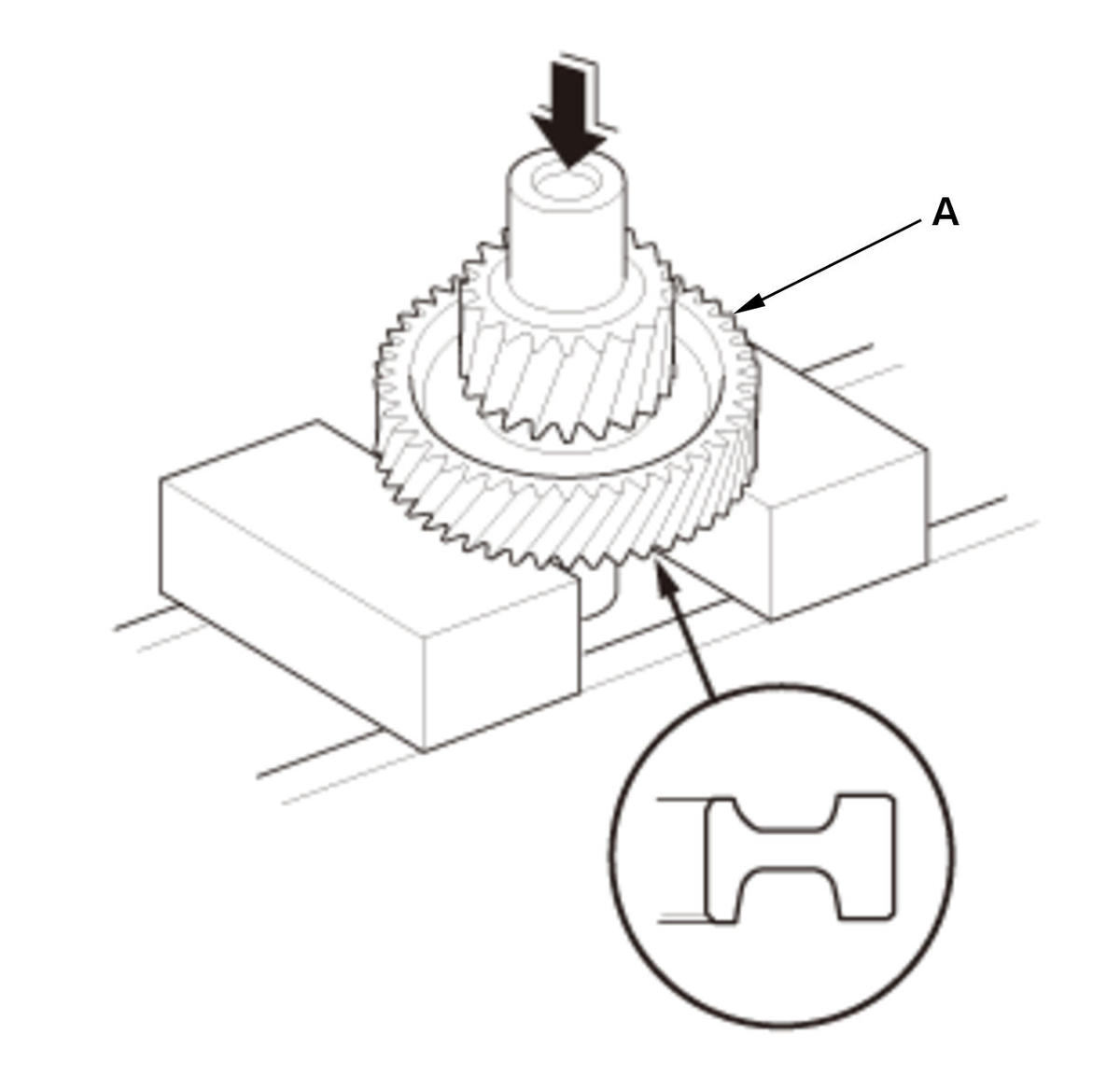

   1. Install the secondary driven gear (A) until it bottoms in the direction shown using a press.

2. 38 mm Cotter - Install
3. Cotter Retainer - Install
4. Final Drive Shaft Tapered Roller Bearing - Install

   Courtesy of HONDA, U.S.A., INC.

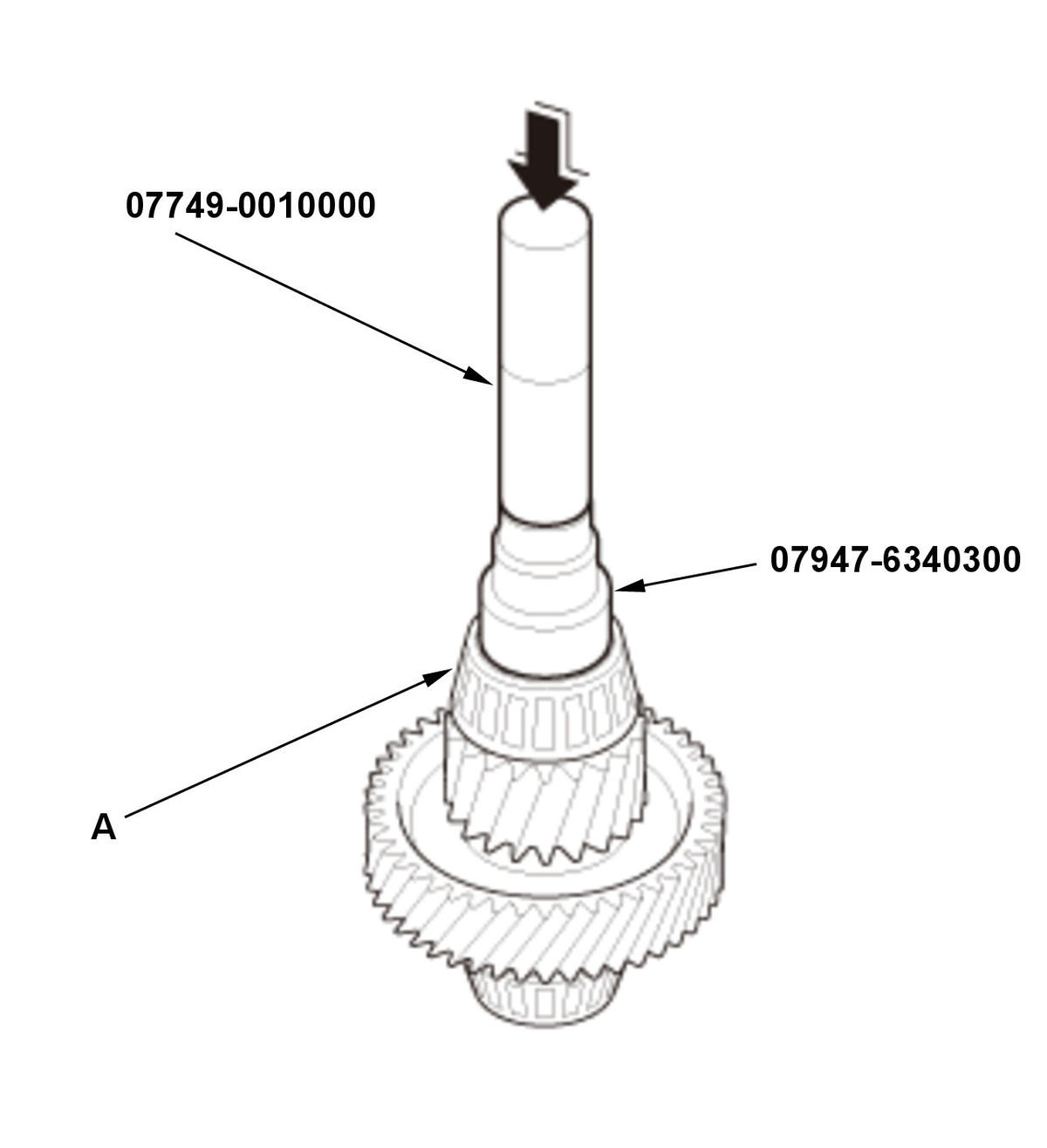

   Transmission Housing Side  1. Install the final drive shaft tapered roller bearing (A) until it bottoms using the 15 x 135L driver handle, the 40 mm attachment, and a press.

   Courtesy of HONDA, U.S.A., INC.

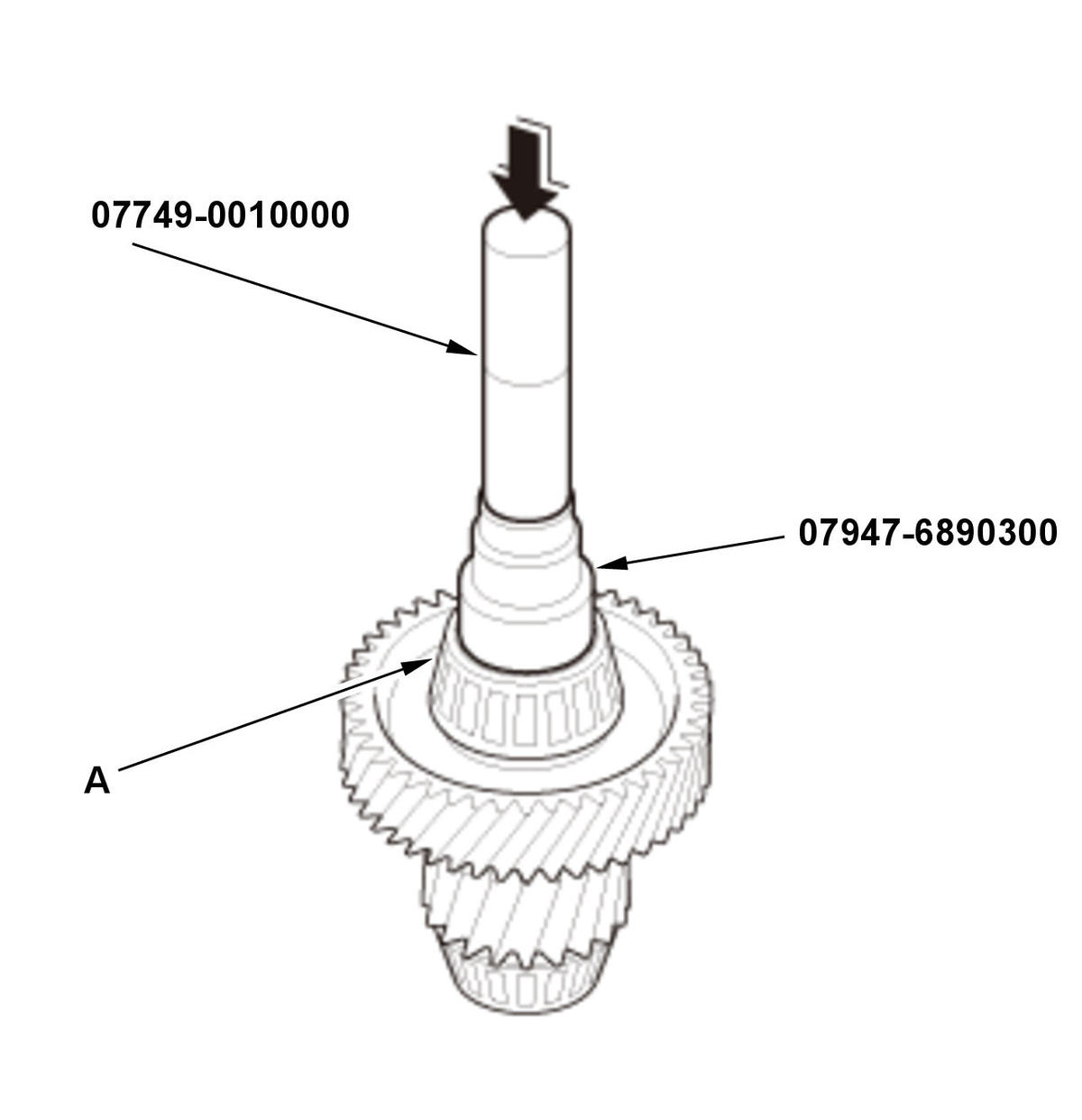

   Torque Converter Housing Side  2. Install the final drive shaft tapered roller bearing (A) until it bottoms using the 15 x 135L driver handle, the 45 mm attachment, and a press.
