Final Drive Shaft Disassembly and Reassembly: Disassembly

NOTE:

• Where icon is shown, further information shown below.
• The bearing and the bearing outer race should be replaced as a set.

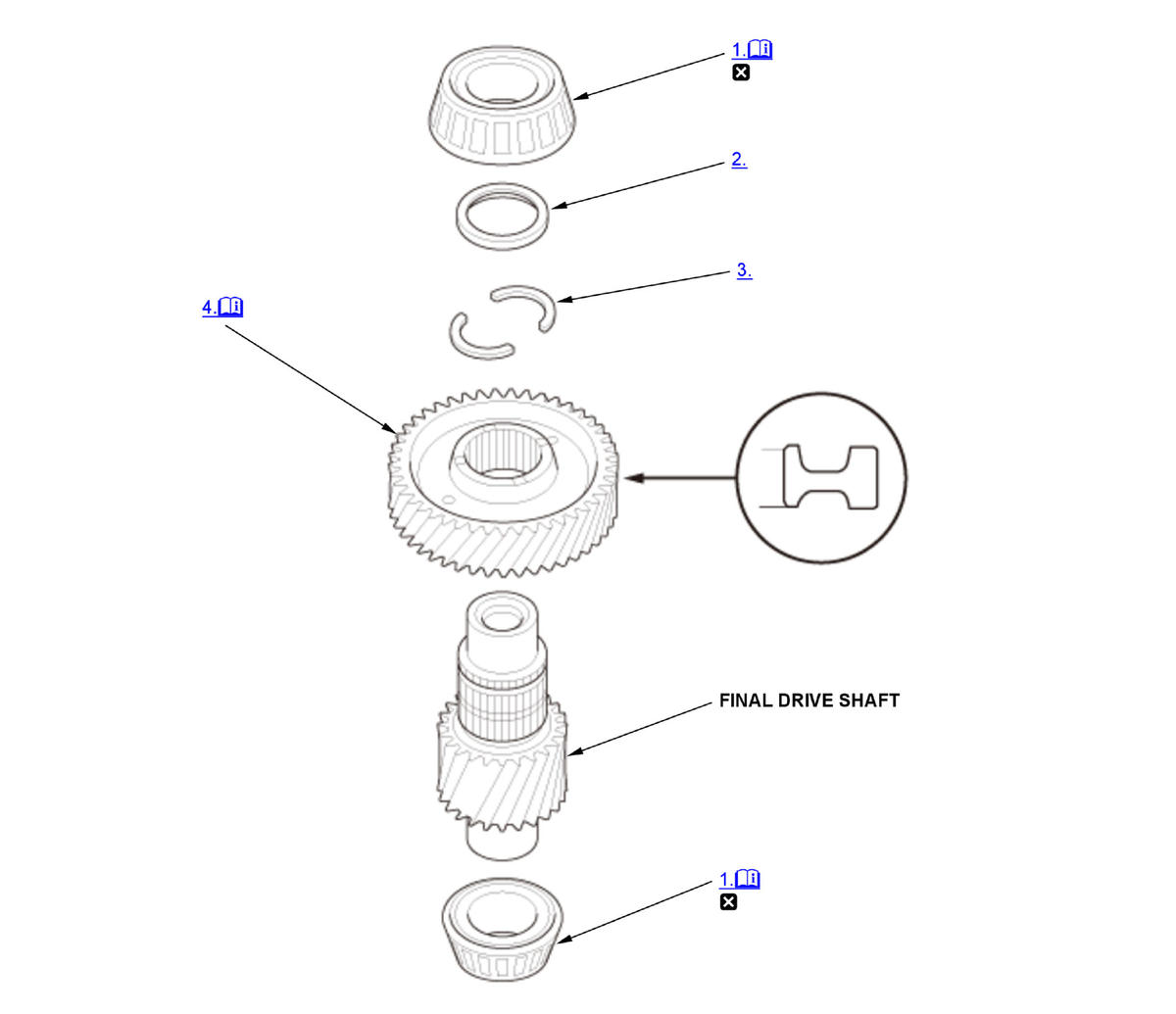

1

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes and precautions
	Replace

1. Final Drive Shaft Tapered Roller Bearing - Remove

   Transmission Housing Side  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Torque Converter Housing Side  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

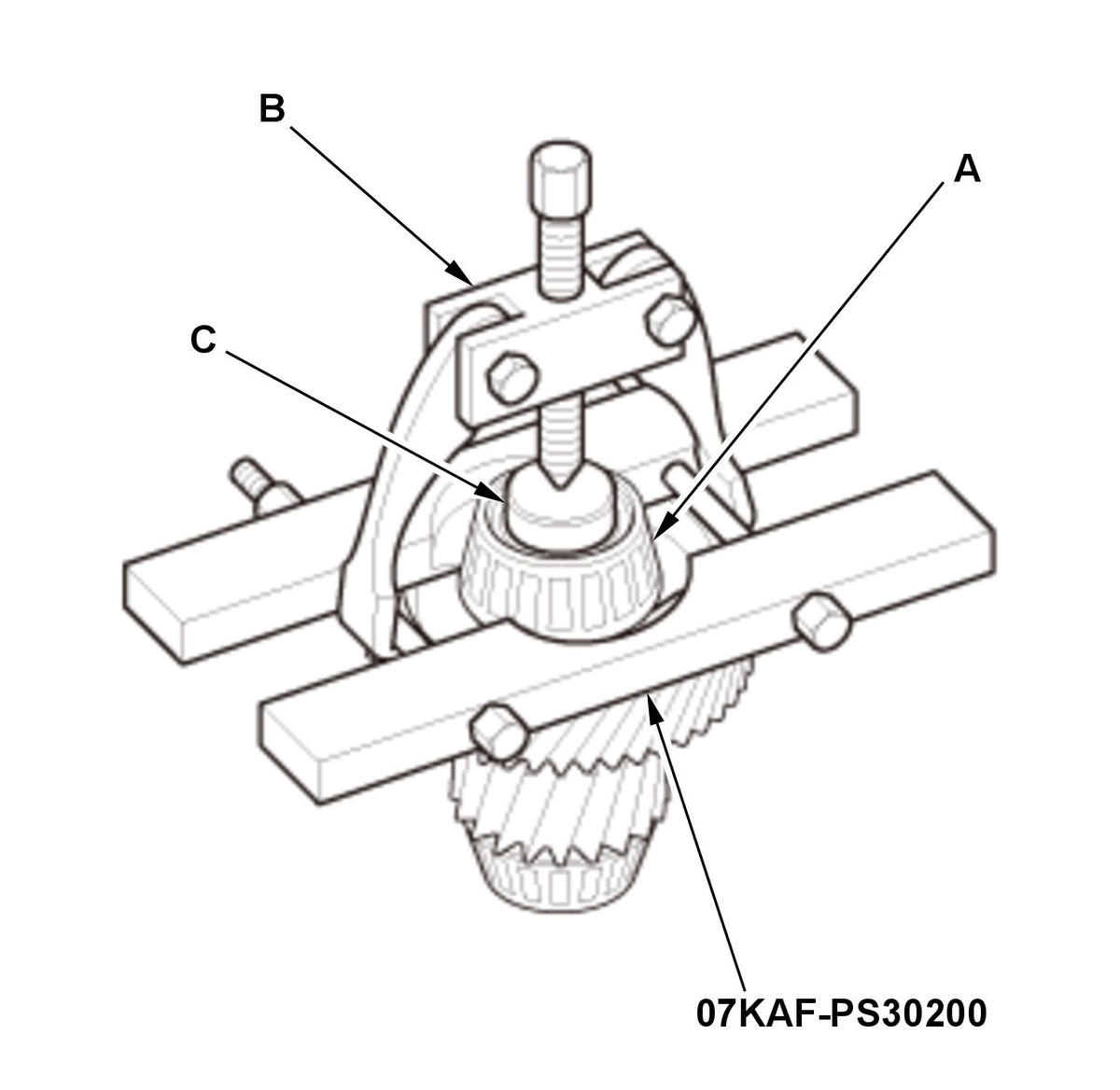

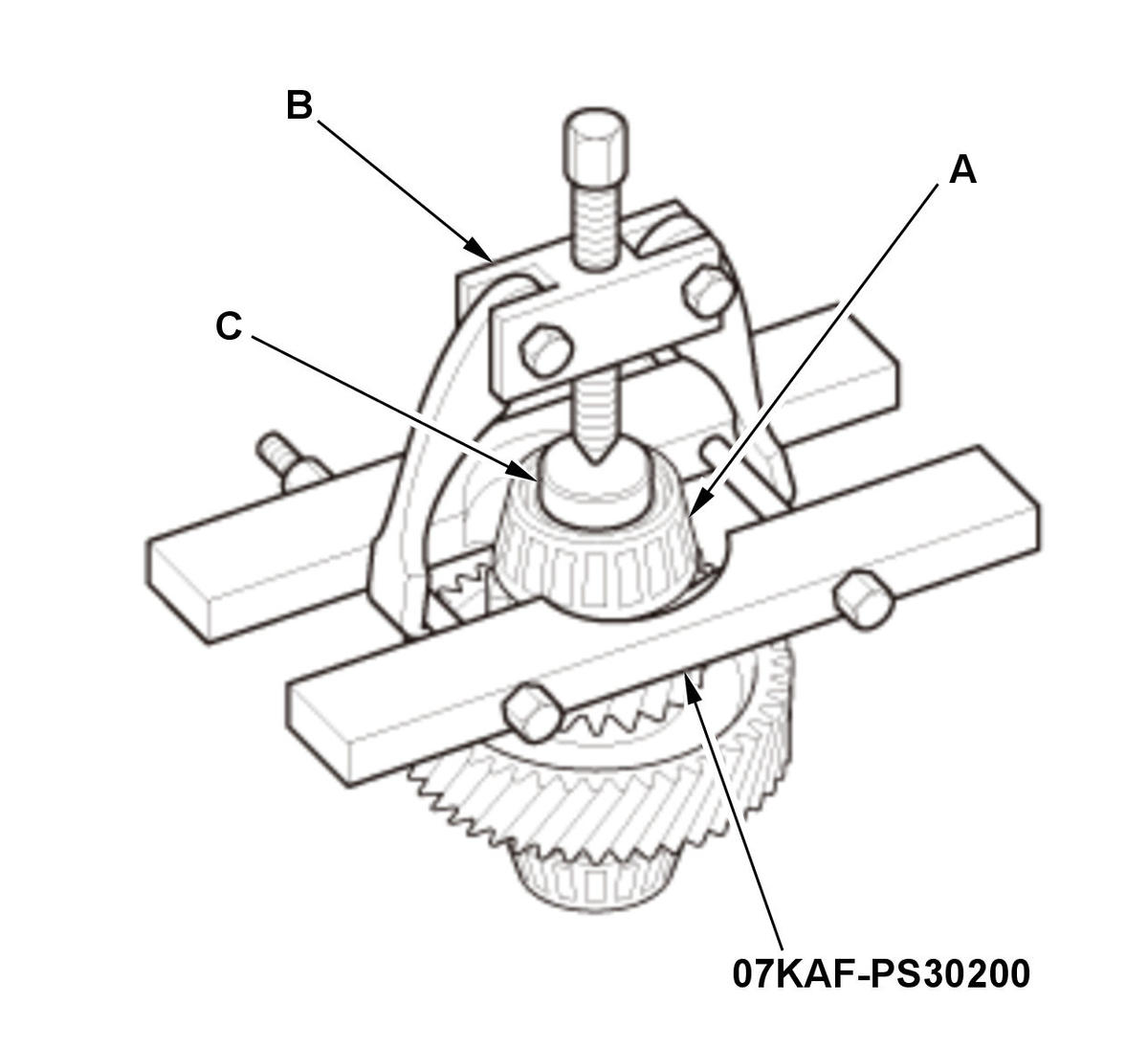

   1. Remove the final drive shaft tapered roller bearings (A) using the bearing separator, a commercially available bearing puller (B), and a commercially available spacer (C).

2. Cotter Retainer - Remove
3. 38 mm Cotter - Remove
4. Secondary Driven Gear - Remove

   Courtesy of HONDA, U.S.A., INC.

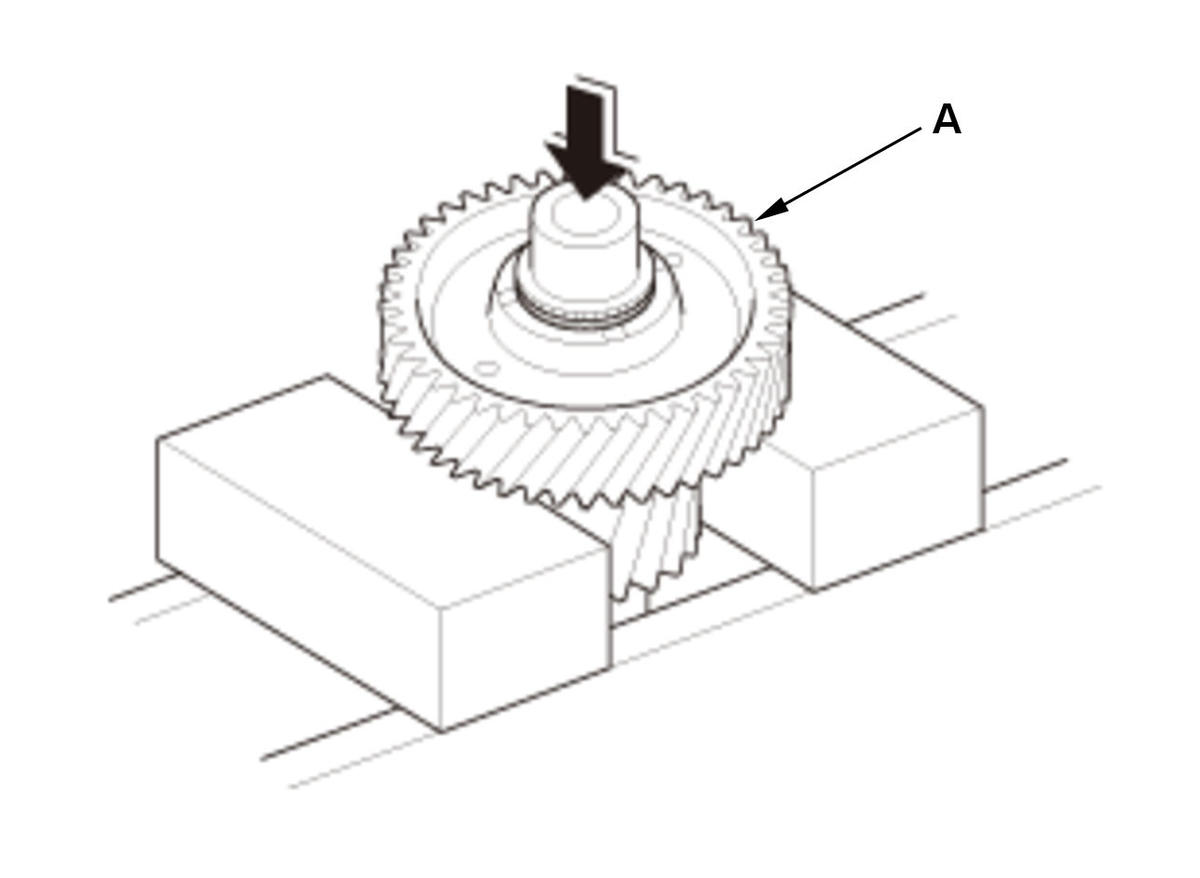

   1. Remove the secondary driven gear (A) using a press.
