CVT Differential Carrier Disassembly and Reassembly: Disassembly

NOTE:

• Where icon is shown, further information shown below.
• The bearing and the bearing outer race should be replaced as a set.

1

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes and precautions
	Replace

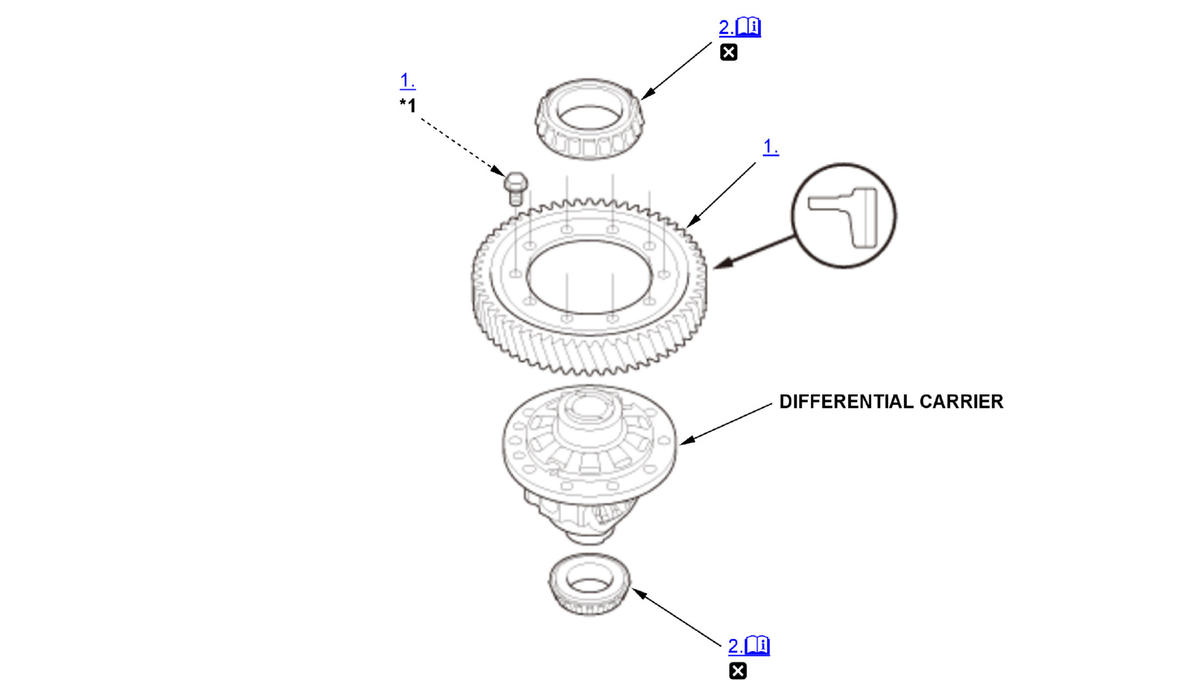

*1	Left-hand threads

1. Final Driven Gear - Remove
2. Differential Carrier Tapered Roller Bearing - Remove

   Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

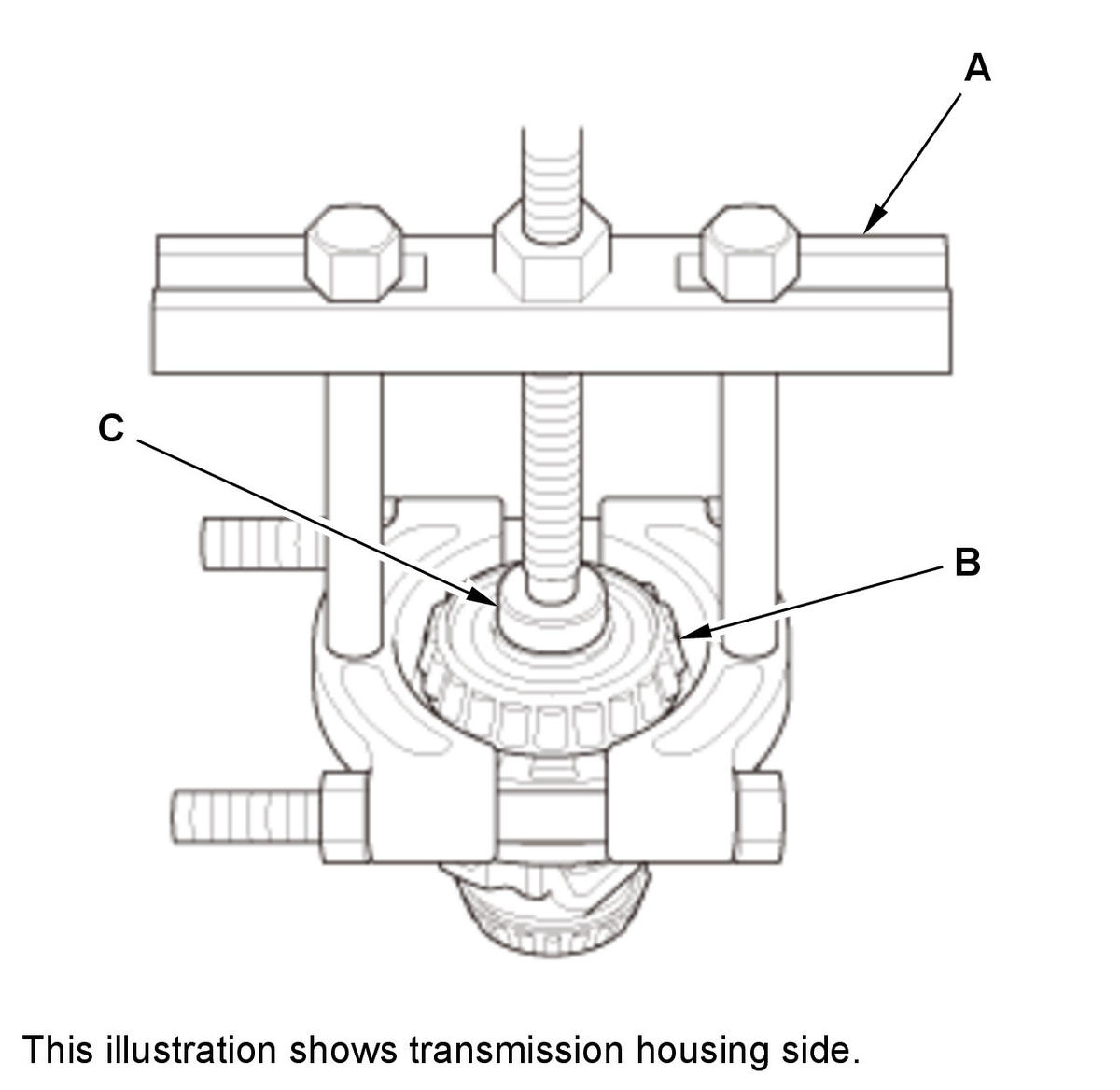

   1. Set a commercially available bearing puller (A) under the differential carrier tapered roller bearings (B) as shown. 2. Remove the bearings using the commercially available bearing puller and a commercially available spacer (C).
