DTC Troubleshooting: P0705(CVT (TCM))
DTC P0705 : Transmission Range Switch Multiple Shift Position Input
NOTE:
- Before you troubleshoot, review the General Troubleshooting Information .
- This code is caused by an electrical circuit problem and cannot be caused by a mechanical problem in the transmission.
| DTC Description | Confirmed DTC | Pending DTC | Freeze Frame |
|---|---|---|---|
| P0705 Transmission Range Switch Multiple Shift Position Input |
DTC(CVT)
- Problem verification
-1. Turn the vehicle to the ON mode.
-2. Compare the transmission range switch signal inputs with the HDS to the following table, in each shift lever position/mode.
Signal Threshold Current conditions P R N D S L Values Unit A/T P Switch ON OFF OFF OFF OFF OFF A/T R Switch OFF ON OFF OFF OFF OFF A/T N Switch OFF OFF ON OFF OFF OFF Signal Threshold Current conditions P R N D S L Values Unit A/T D Switch OFF OFF OFF ON OFF OFF A/T S Switch OFF OFF OFF OFF ON OFF A/T L Switch OFF OFF OFF OFF OFF ON ATP-FWD OFF OFF OFF ON ON ON ATP-RVS OFF ON OFF OFF OFF OFF Do the transmission range switch signals match?
YES
Intermittent failure, the system is OK at this time. Check for poor connections and loose terminals between the transmission range switch and the TCM. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot.
NO
The failure is duplicated. Go to step 2.
- Transmission range switch signal check
-1. Compare the transmission range switch signal inputs with the HDS to the following table, in each shift lever position/mode.
Signal Threshold Current conditions P R N D S L Values Unit A/T P Switch ON OFF OFF OFF OFF OFF A/T R Switch OFF ON OFF OFF OFF OFF A/T N Switch OFF OFF ON OFF OFF OFF A/T D Switch OFF OFF OFF ON OFF OFF A/T S Switch OFF OFF OFF OFF ON OFF A/T L Switch OFF OFF OFF OFF OFF ON Forward Switch OFF OFF OFF ON ON ON Reverse Switch(ATPRVS) OFF ON OFF OFF OFF OFF Are any transmission range switch signals ON in all shift lever positions/modes?
YES
Record the abnormal circuit, then go to step 4.
NO
Record the abnormal circuit, then go to step 3.
- Transmission range switch check
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Disconnect the following connector.

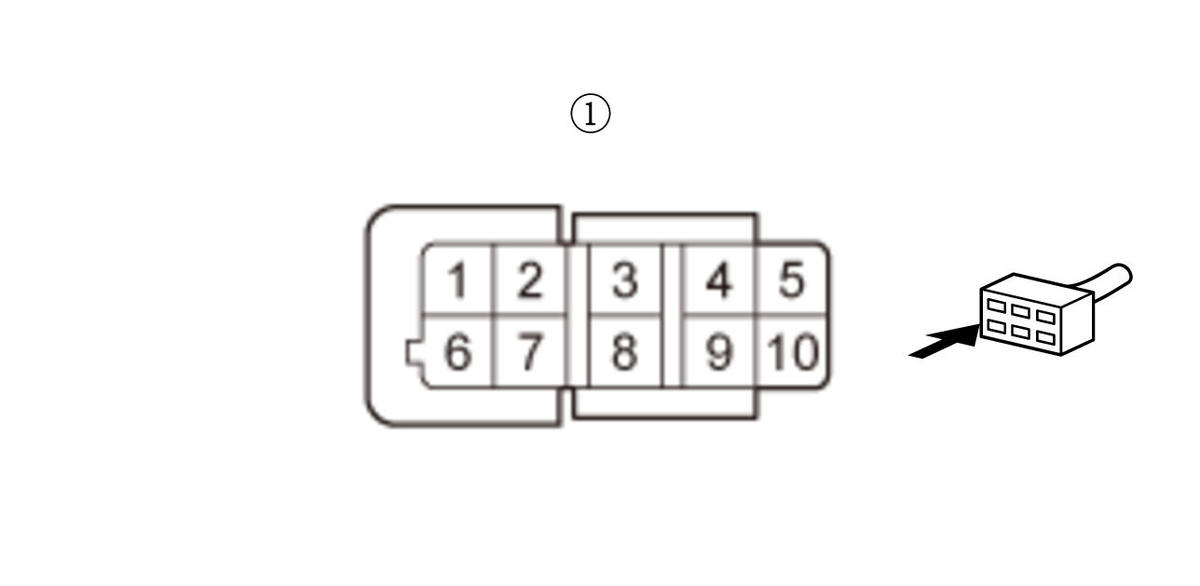

Transmission range switch 10P connector -3. Connect the transmission range switch connector terminal that incorrectly indicates ON in step 2 to ground with a jumper wire.
Signal Transmission range switch 10P connector (female terminals) : Terminal number A/T P Switch 5 A/T R Switch 4 A/T N Switch 9 A/T D Switch 3 Signal Transmission range switch 10P connector (female terminals) : Terminal number A/T S Switch 8 A/T L Switch 2 Forward Switch 6 Reverse Switch(ATPRVS) 10 -4. Turn the vehicle to the ON mode.
-5. Compare the transmission range switch signal inputs with the HDS to the following table.
Signal Current conditions Values Unit A/T P Switch A/T R Switch A/T N Switch A/T D Switch A/T S Switch A/T L Switch Forward Switch Reverse Switch(ATPRVS) Do multiple transmission range switch signals indicate ON?
YES
The transmission range switch is OK. Repair a short in the wires between the corresponding transmission range switch connector terminal and the TCM. Refer to the following table.
ATPP ATPR ATPN ATPD ATPS ATPL ATP-FWD ATP-RVS TCM 48 47 46 37 36 35 44 43 Transmission range switch 5 4 9 3 8 2 6 10 NO
- Transmission range switch check
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Disconnect the following connector.
Transmission range switch 10P connector -3. Turn the vehicle to the ON mode.
-4. Check the transmission range switch signal input that remained ON with the HDS to the following table.
Signal Current conditions Values Unit A/T P Switch A/T R Switch A/T N Switch A/T D Switch A/T S Switch A/T L Switch Forward Switch Reverse Switch(ATPRVS) Do any transmission range switch signals remain ON?
YES
The transmission range switch is OK. Go to step 5.
NO
- Shorted wire check (corresponding line)
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Jump the SCS line with the HDS, and wait more than 1 minute.
NOTE: This step must be done to protect the TCM from damage.
-3. Disconnect the following connector.
TCM 50P connector -4. Check for continuity between the connector terminal on the circuit that remained ON in step 4 and ground; refer to the following table.
Signal Transmission range switch 10P connector (female terminals) : Terminal number A/T P Switch 5 A/T R Switch 4 A/T N Switch 9 A/T D Switch 3 A/T S Switch 8 A/T L Switch 2 Forward Switch 6 Reverse Switch(ATPRVS) 10 Does the circuit that indicated ON have continuity to ground?
YES
Repair a short to ground in the wire between the corresponding transmission range switch connector terminal, the shift position indicator, and the TCM.
NO
The wires are OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or replace the original TCM .
