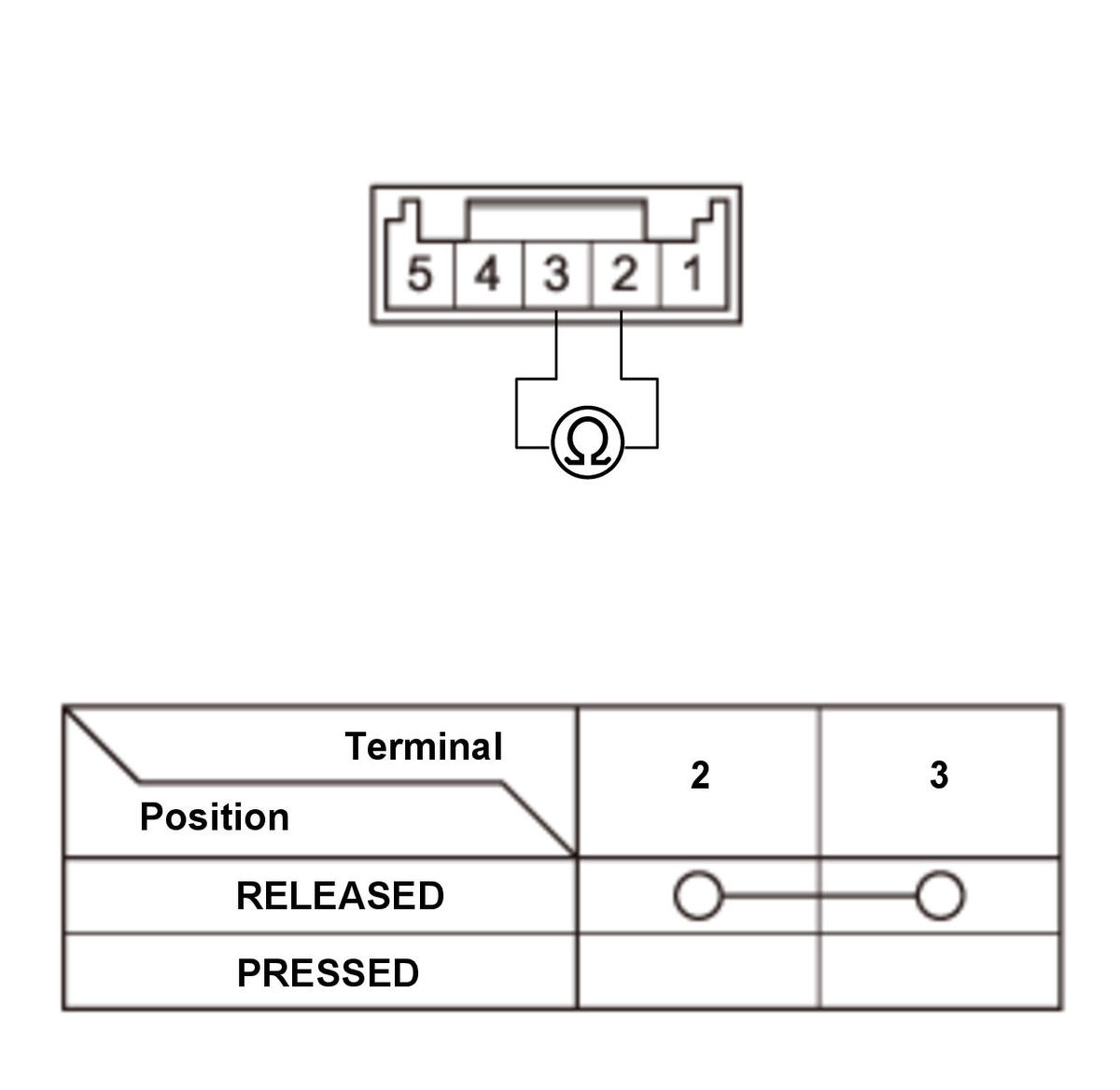

TPMS switch 5P connector (male terminals)
 Courtesy of HONDA, U.S.A., INC.
|
1. On the switch side, check for continuity between the connector terminal in each switch position according to the table. 2. If the switch does not work as described in the table, replace the switch.
|
