Removal and Installation

  1. Driver's Dashboard Undercover - Remove
  2. Driver's Dashboard Lower Cover- Remove

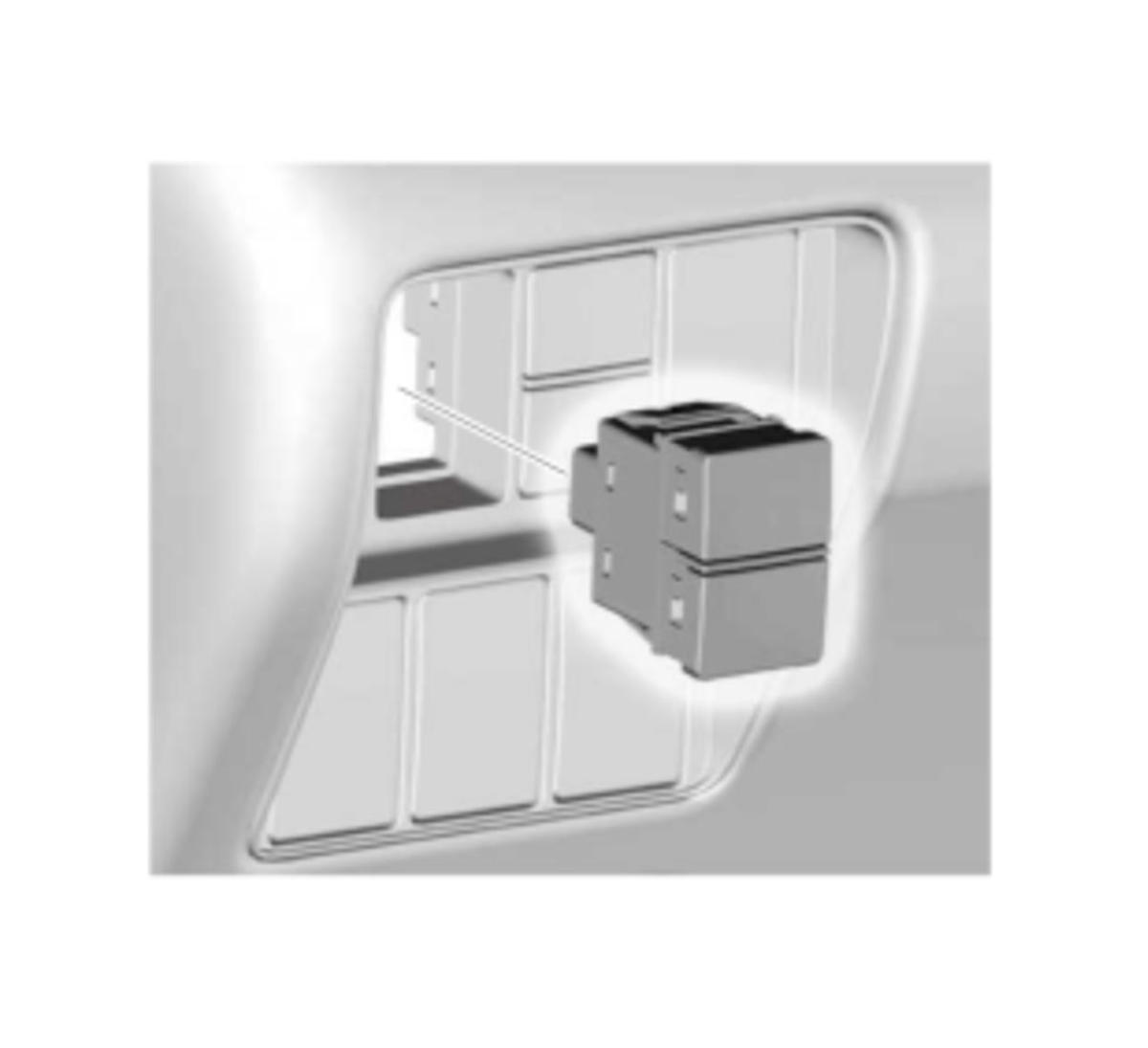

  3. TPMS Switch - Remove
    GHH431653Courtesy of HONDA, U.S.A., INC.

    NOTE:  Position of the switch is different depending on the model.

  4. All Removed Parts - Install
    1. Install all removed parts in the reverse order of removal.
