Wheel Bolt Removal and Installation: Removal

NOTICE:

• Do not use a hammer or impact tools (pneumatic or electric).
• Be careful not to damage the threads of the wheel bolts.

Front

1. Vehicle - Lift
2. Front Wheel - Remove
3. Front Hub - Remove
4. Wheel Bolt - Remove

   Courtesy of HONDA, U.S.A., INC.

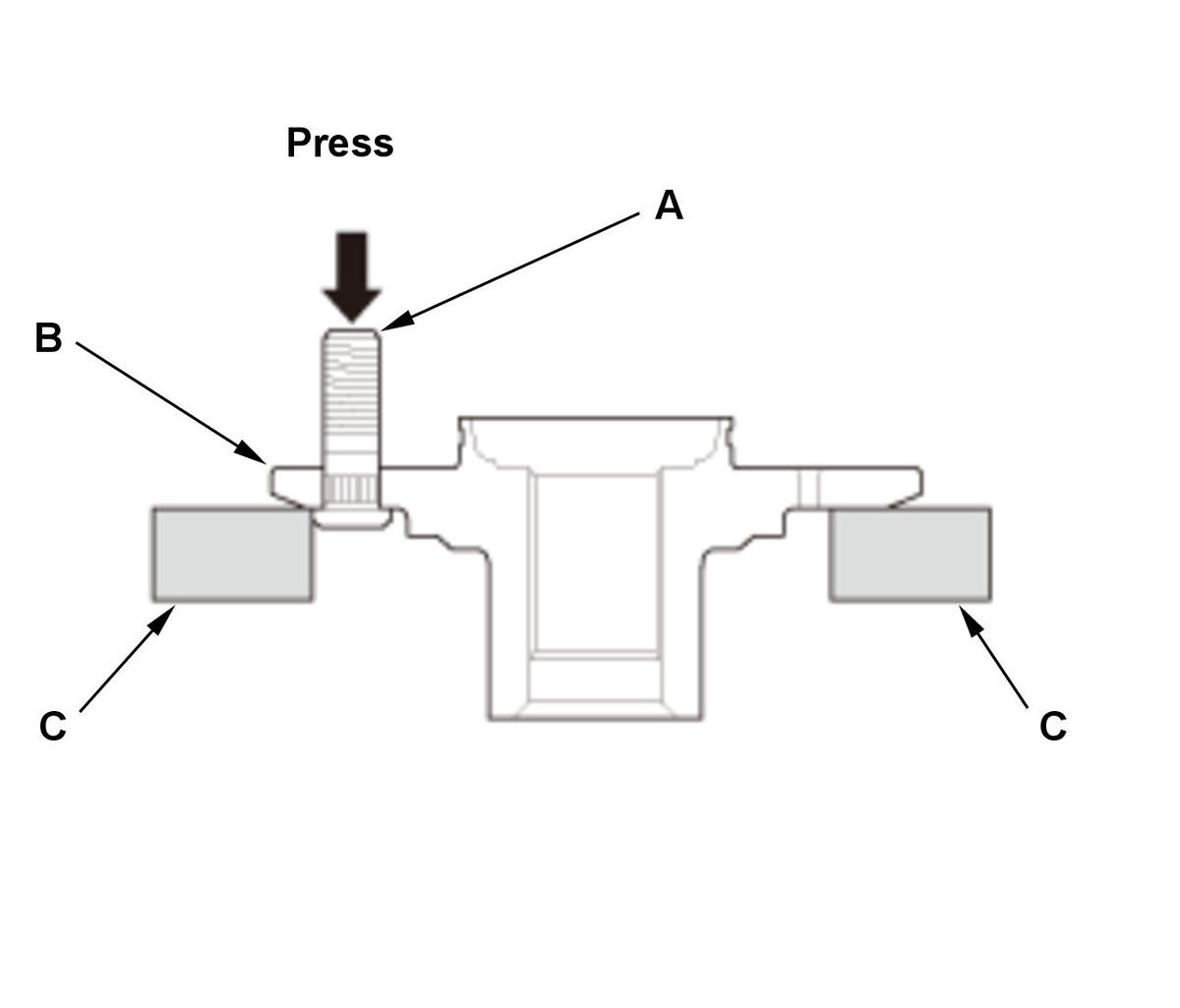

   1. Separate the wheel bolt (A) from the hub (B) using a hydraulic press. NOTE: Support the hub with hydraulic press attachments (C) or equivalent tools.

   Rear

5. Vehicle - Lift
6. Rear Wheel - Remove
7. Rear Brake Disc - Remove
8. Wheel Bolt - Remove

   Courtesy of HONDA, U.S.A., INC.

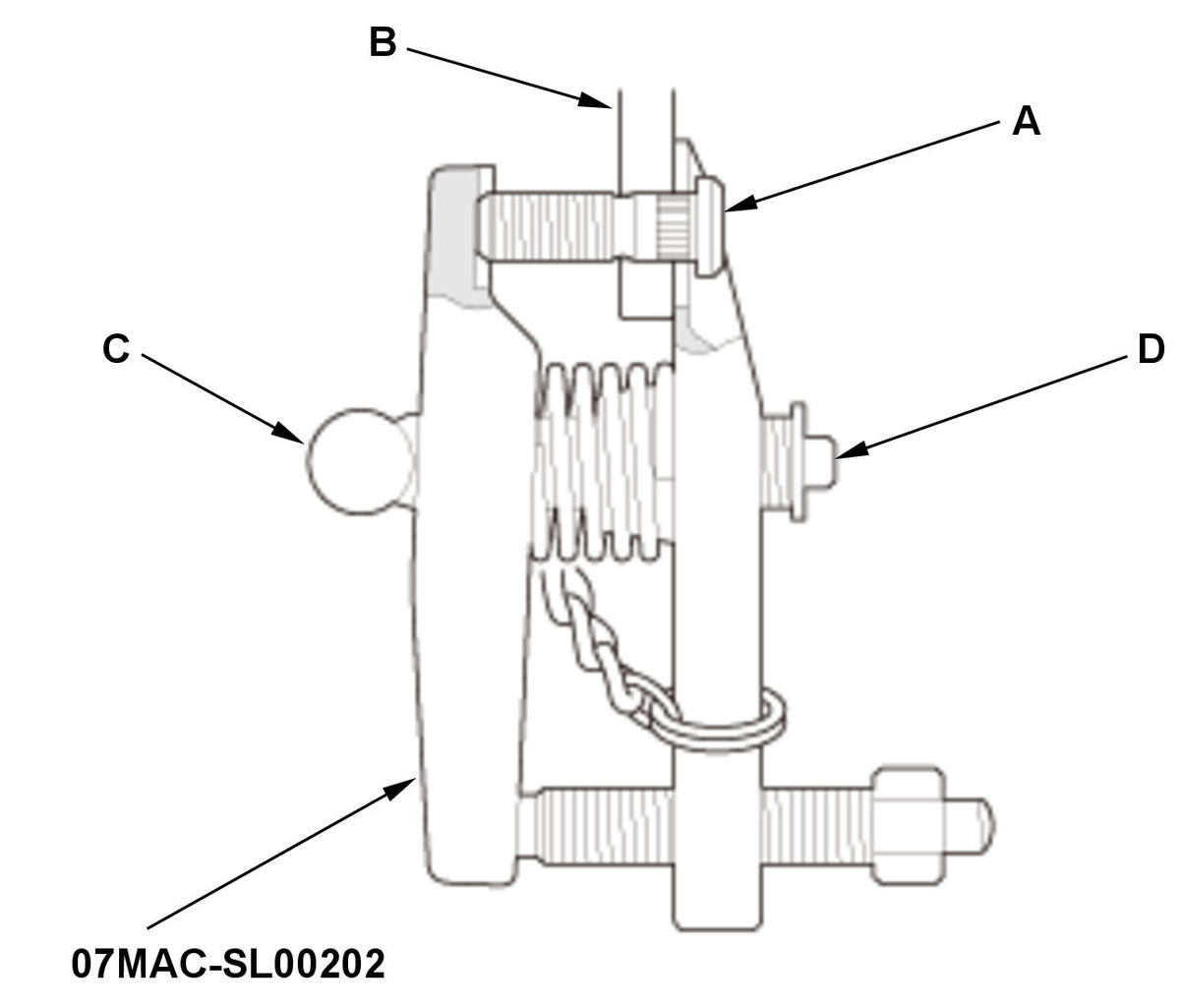

   1. Separate the wheel bolt (A) from the hub (B). NOTE: If the angle of the remover against the wheel bolt is not vertical, readjust the ball joint remover by turning the head (C) of the adjusting bolt (D).
