Removal and Installation

NOTE:

• How to read the torque specifications .
• Unless otherwise indicated, illustrations used in the procedure are for AWD model.

1. Vehicle - Lift
2. Rear Wheel - Remove
3. Rear Wheel Speed Sensor - Remove

   1. Remove the rear wheel speed sensor from the trailing arm . NOTE: Do not disconnect the wheel speed sensor connector.

4. Trailing Arm - Remove

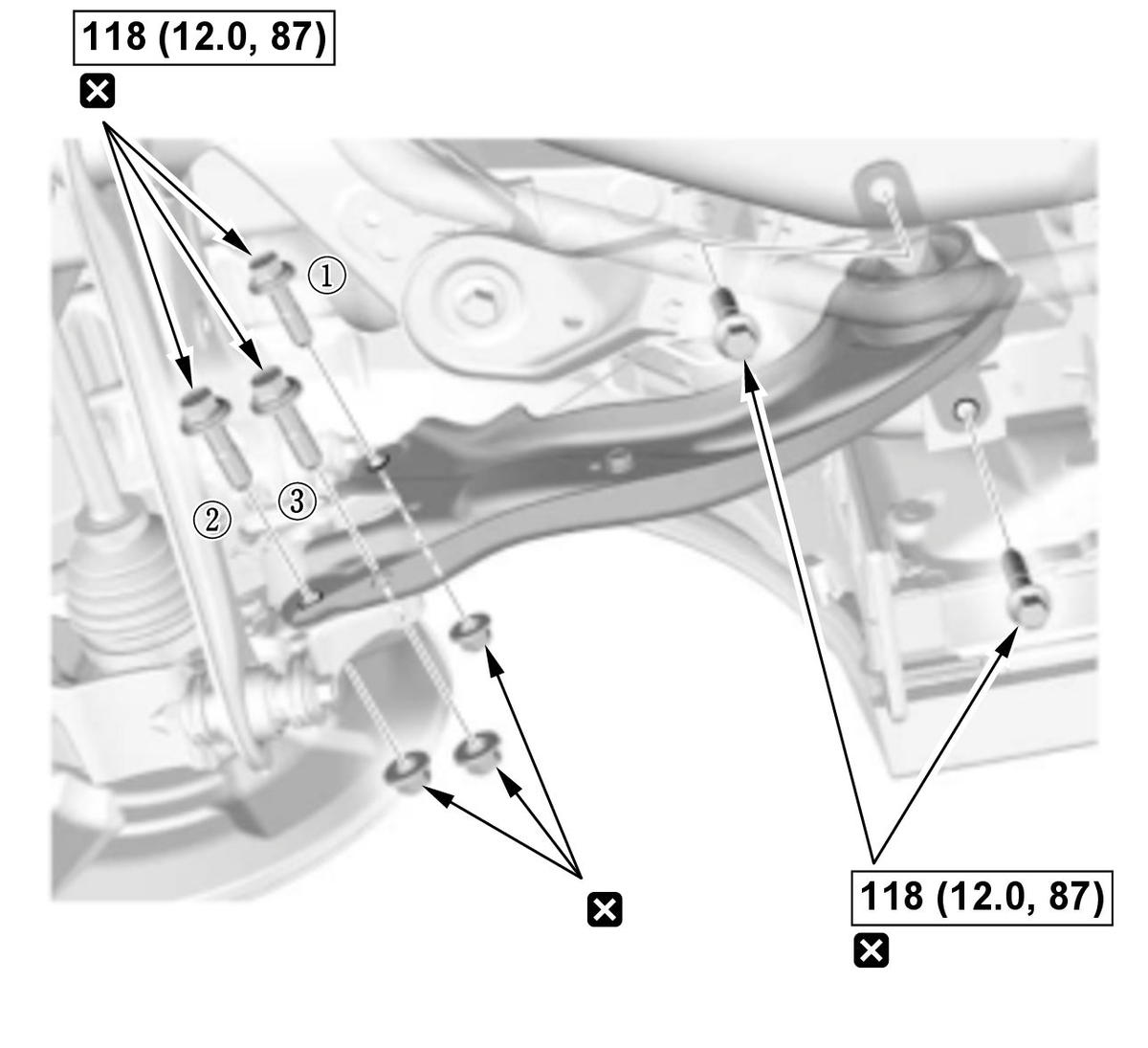

   Fig 1: Tightening Trailing Arm Bolt In Sequence With Torque Specifications

   Courtesy of HONDA, U.S.A., INC.

   NOTE:

   • Use new bolts and nuts during reassembly.
   • Tighten the bolt side to the specified torque in the numbered sequence shown in illustration.
5. All Removed Parts - Install

   1. Install all removed parts in the reverse order of removal. NOTE: Loosely install the nuts and/or bolts to install the bushings, load the suspension with the vehicle's weight, and then tighten the nuts and/or bolts to the specified torque.

6. Wheel Alignment - Check
