Rear Lower Arm B Removal and Installation: Removal

NOTE:  Unless otherwise indicated, illustrations used in the procedure are for AWD model.

1. Vehicle - Lift
2. Rear Wheel - Remove
3. Rear Spring - Remove
4. Lower Arm B - Remove

   Courtesy of HONDA, U.S.A., INC.

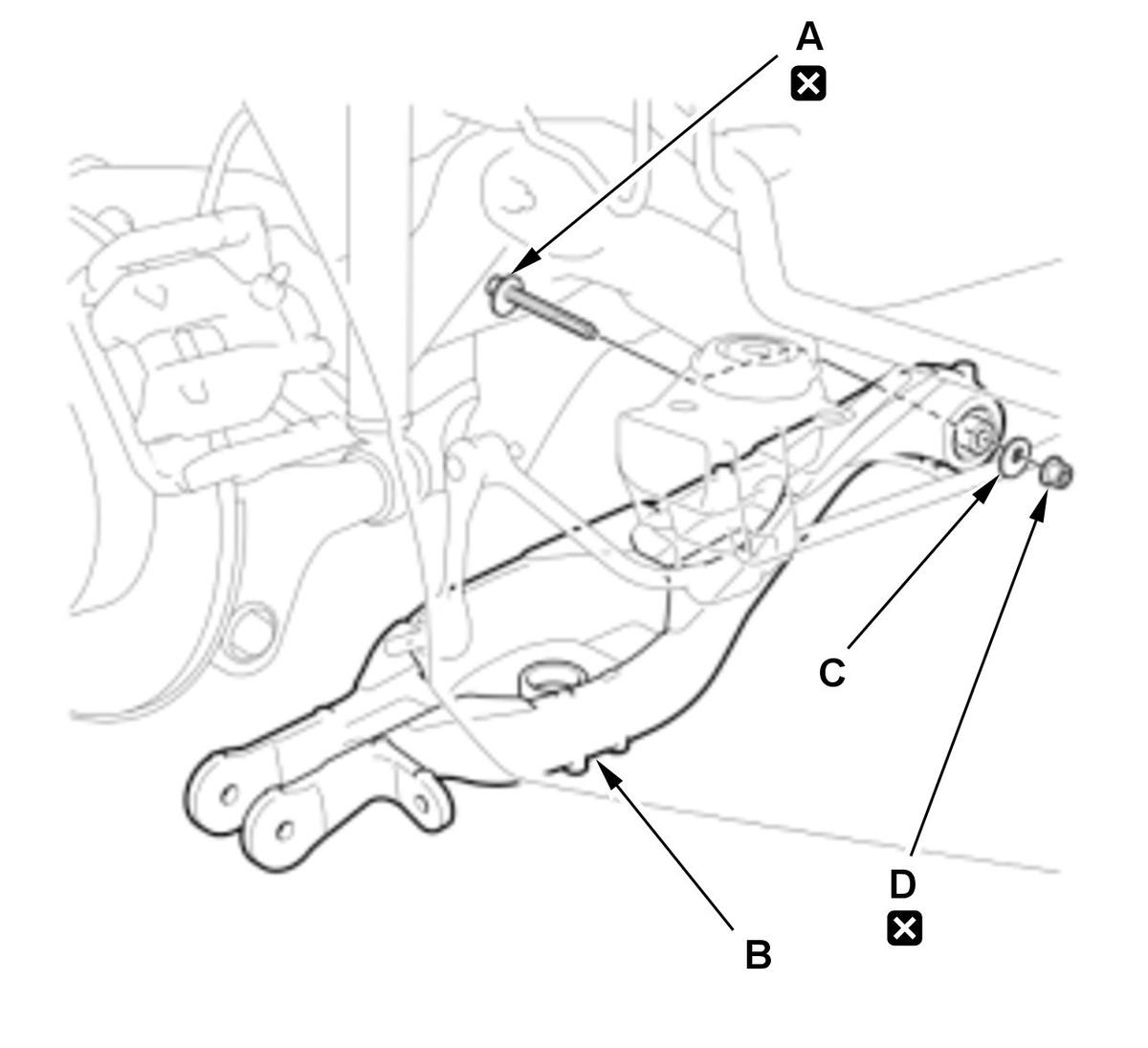

   1. Mark the cam positions of the adjusting bolt (A) and the adjusting cam plate (C). 2. Remove the self-locking nut (D), the adjusting cam plate, and the adjusting bolt. 3. Remove the lower arm B.
