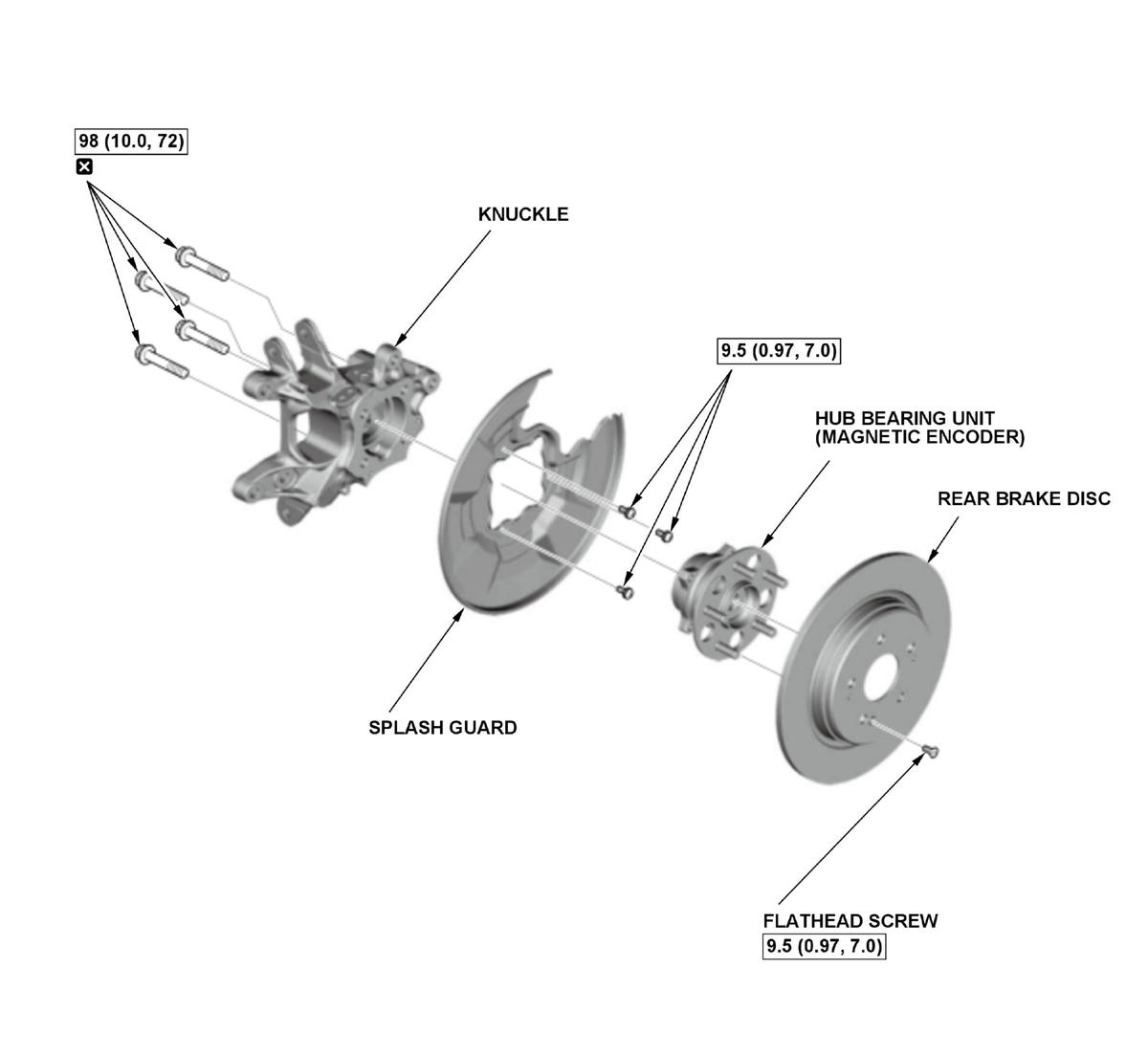

Exploded View

NOTE: How to read the torque specifications .

  1. Knuckle/Hub Bearing Unit
    GHH431607Courtesy of HONDA, U.S.A., INC.
