Front Lower Arm Compliance Bush Removal and Installation: Removal

Lower Arm Compliance Bushing - Remove

Courtesy of HONDA, U.S.A., INC.

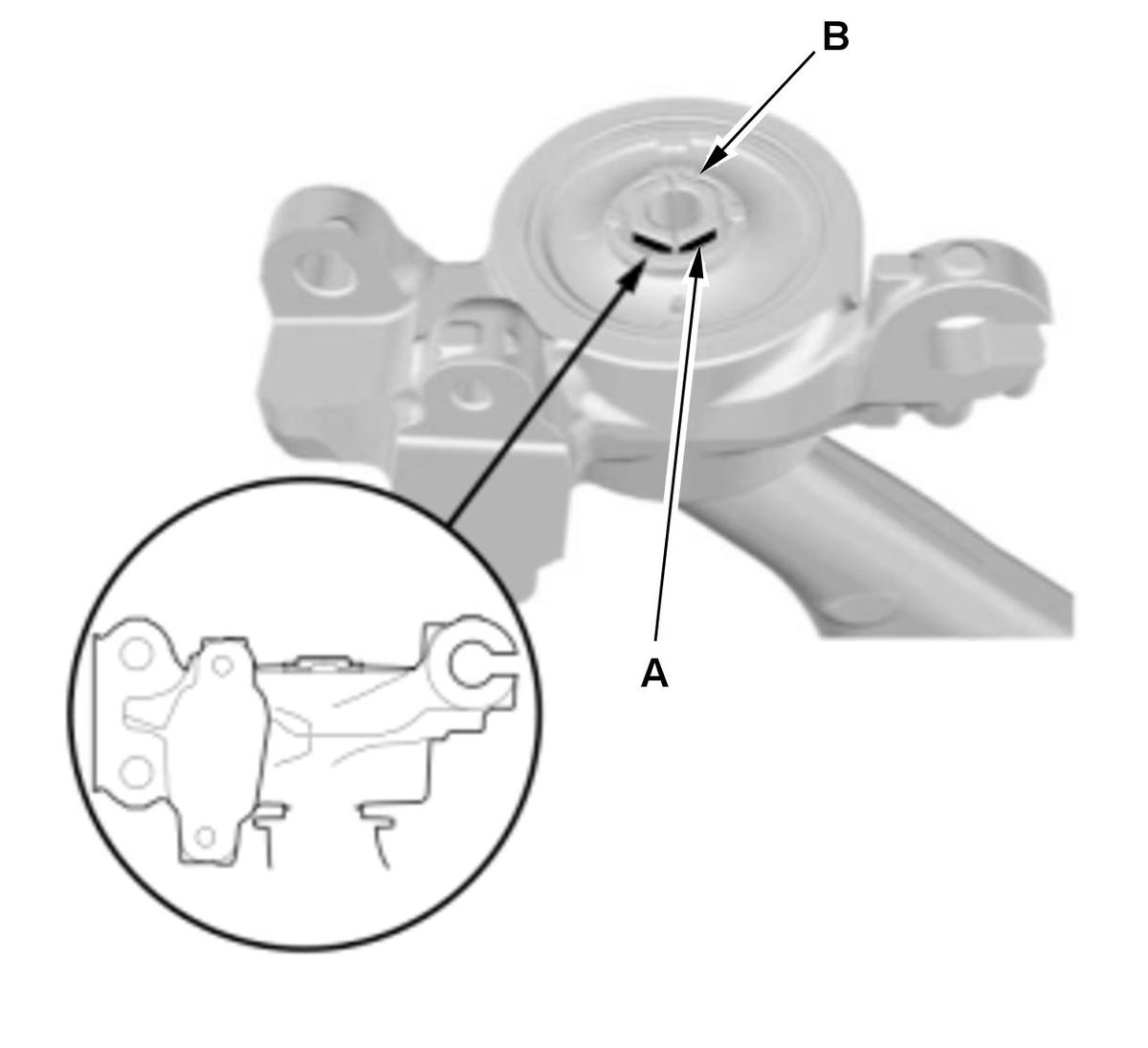

1. Make a mark (A) on the lower arm (B) right above the bushing opening.

NOTE: This mark will aid you during the bushing installation process.

Courtesy of HONDA, U.S.A., INC.

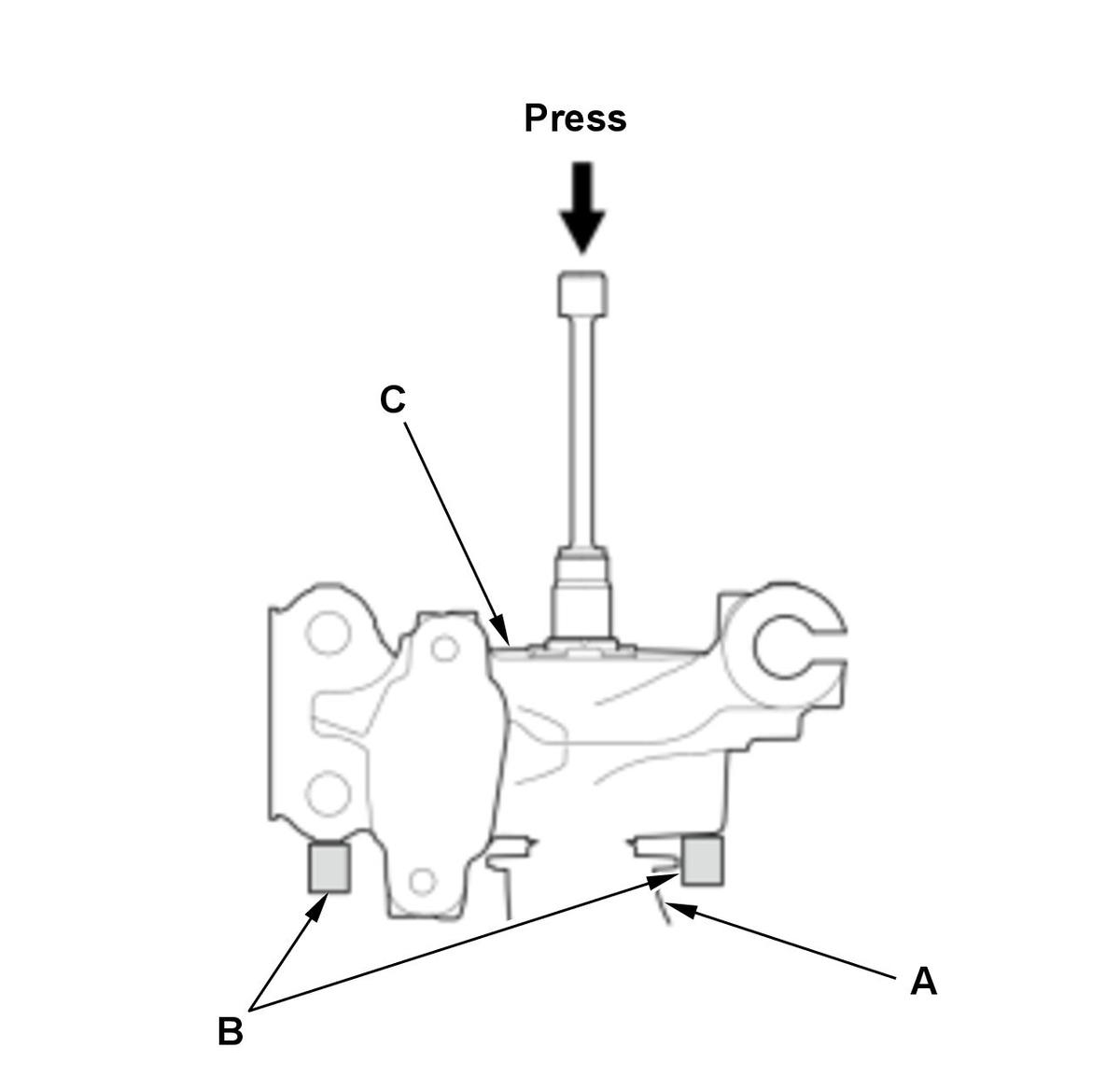

2. Support the lower arm (A) on suitable bar (B) as shown in illustration.

3. Press out the lower arm with a suitable socket and a hydraulic press, and remove the lower arm from the bushing (C).

NOTE:

Be careful not to damage the inside of the bushing hole when pressing on the bushing.
