Removal and Installation
NOTE:
- How to read the torque specifications .
- Refer to the Exploded View as needed during the following procedures.
- Check for deterioration and damage to each part during removal.
Knuckle/Hub
- Vehicle - Lift
- Front Wheel - Remove
- Front Wheel Speed Sensor - Remove
NOTE: Do not disconnect the wheel speed sensor connector.

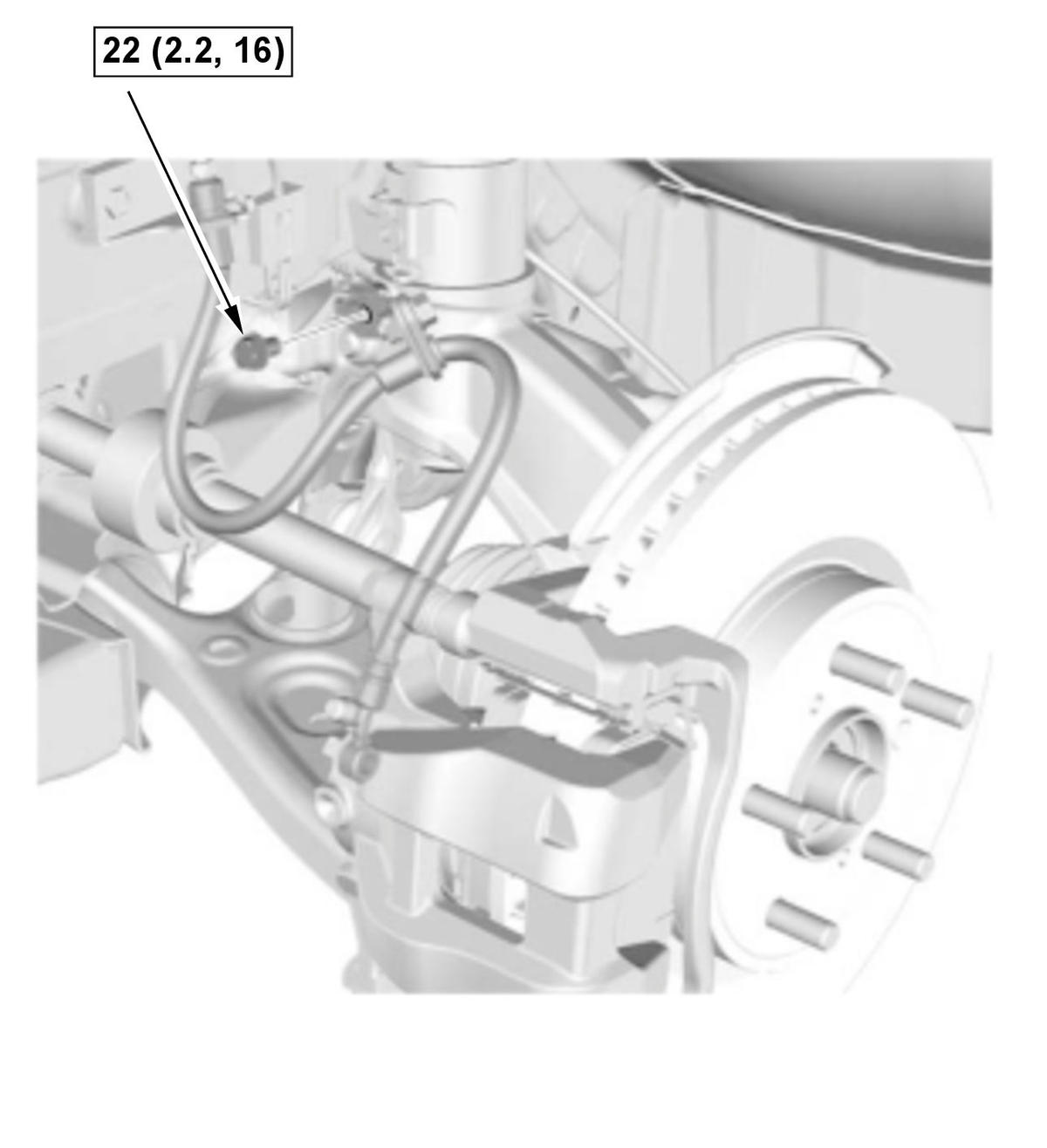

- Brake Hose Bracket - Remove
- Brake Caliper - Remove
1. Remove the caliper assembly without disconnecting the brake hose from the caliper body . NOTE:- To prevent damage to the caliper assembly or brake hose, use a short piece of wire to hang the caliper assembly from the undercarriage.
- Do not twist the brake hose excessively.
- Front Spindle Nut - Remove
- Front Brake Disc - Remove
- Hub for Damage and Cracks - Check
- Tie-Rod End Ball Joint - Disconnect
- Lower Arm Ball Joint - Remove
1. Disconnect the lower arm ball joint from the lower arm and the knuckle . - Knuckle/Hub Assembly - Remove

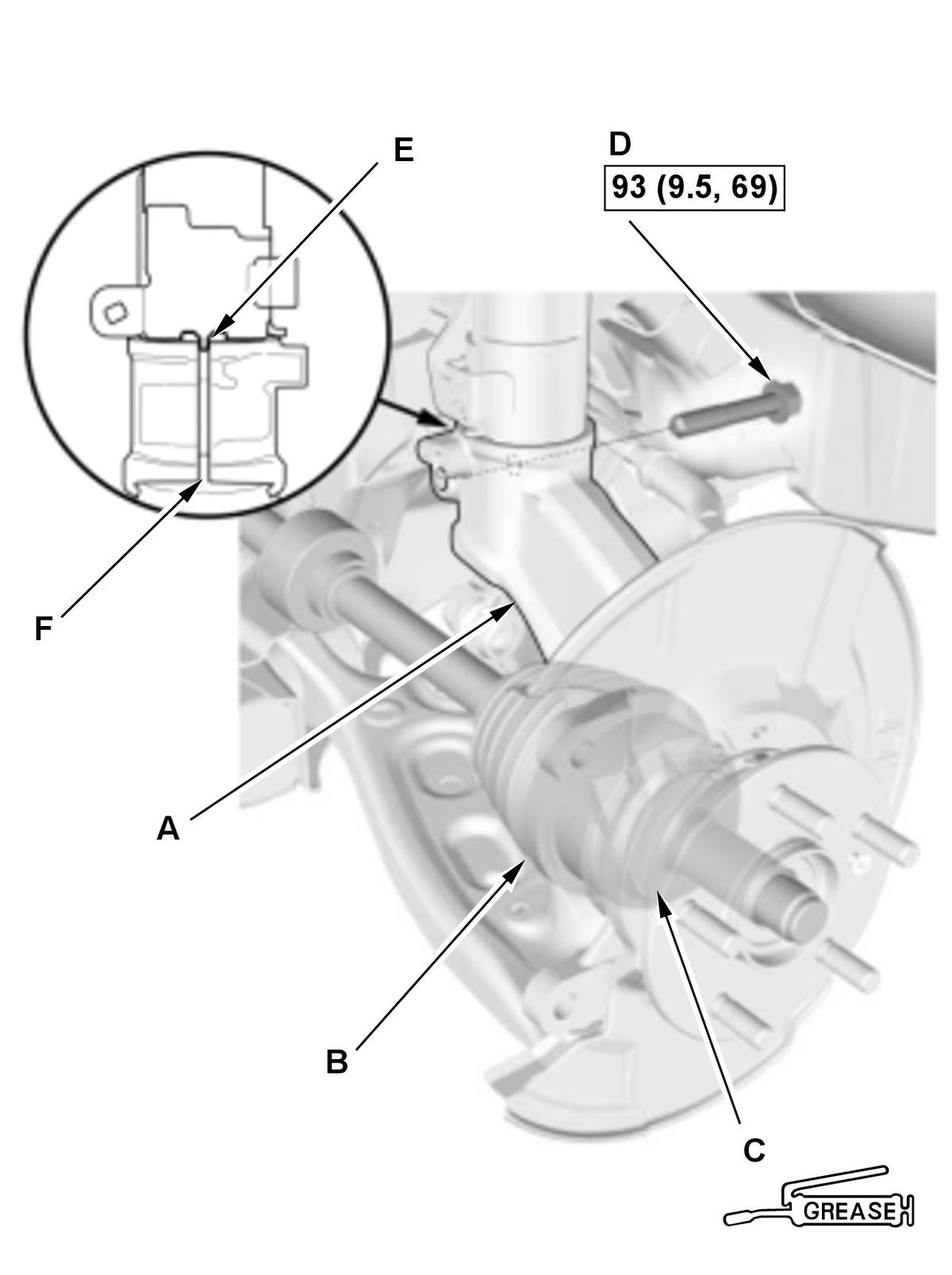

1. Pull the knuckle (A) outward, and separate the outboard joint (B) from the front hub using a soft face hammer outward.NOTE: - Do not pull the driveshaft end outward. The inner driveshaft inboard joint may come apart.
- During installation, apply specified grease to the contact area (C) of the outboard joint and the front wheel bearing .
2. Remove the damper pinch bolt (D).
3. Move the knuckle downward, and remove the knuckle from the damper.
NOTE:During installation, install the aligning tab (E) on the damper unit into the slot (F) of the knuckle.
- All Removed Parts - Install
1. Install all removed parts in the reverse order of removal. - Wheel Alignment - Check
