Suspension System - Inspection & Service Information (Except Hybrid)
>>
Replacement
>>
Front Knuckle/Hub/Wheel Bearing Replacement
>>

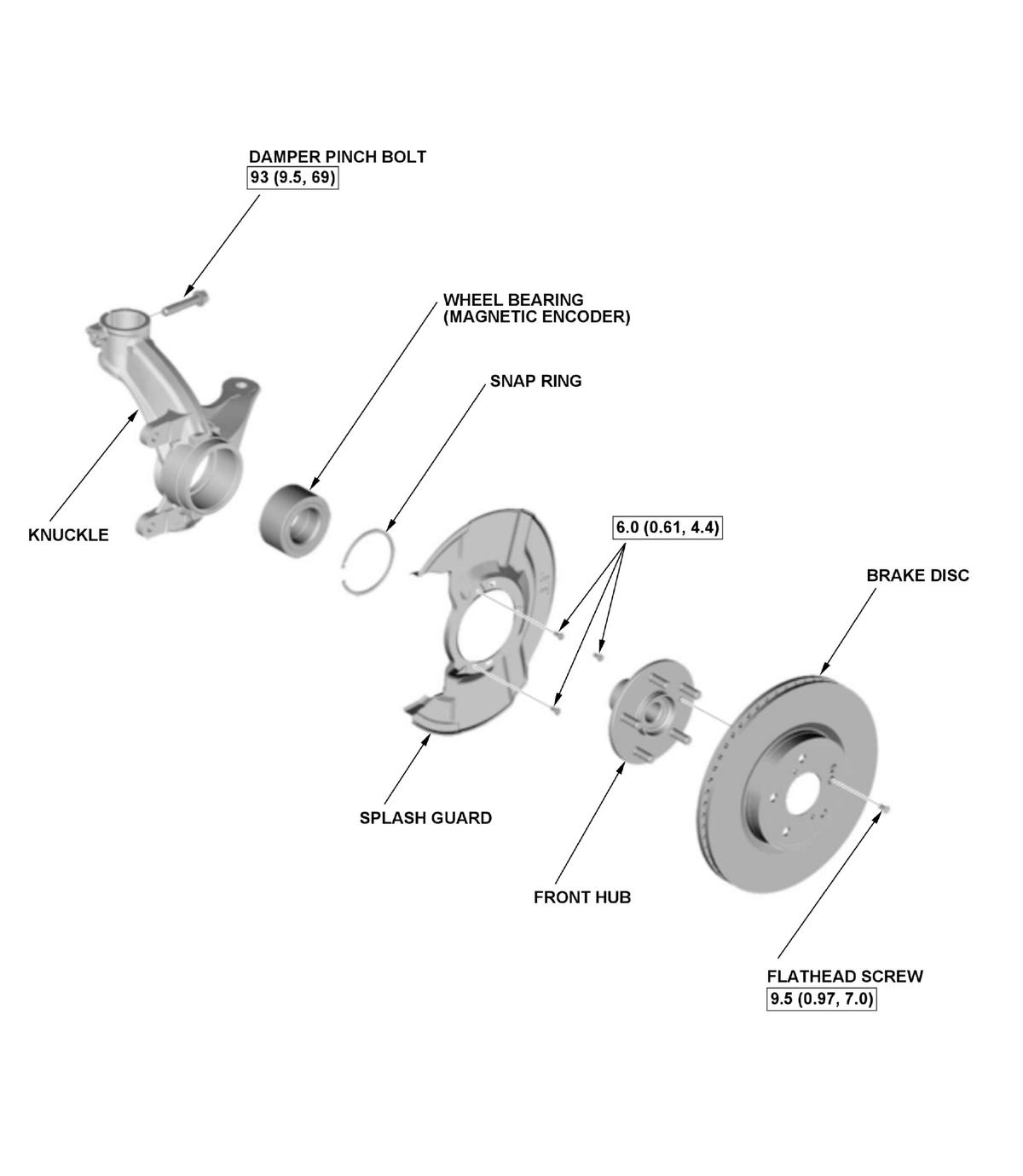

Exploded View
Exploded View
NOTE:
How to read the torque specifications
.
Knuckle/Hub/Wheel Bearing
Courtesy of HONDA, U.S.A., INC.
