Removal and Installation

NOTE:

• How to read the torque specifications .
• Refer to the Exploded View as needed during the following procedures.
• Check for deterioration and damage to each part during removal.
• Unless otherwise indicated, illustrations used in the procedure are for AWD model.

1. Vehicle - Lift
2. Rear Wheel - Remove
3. Damper - Remove

   Courtesy of HONDA, U.S.A., INC.

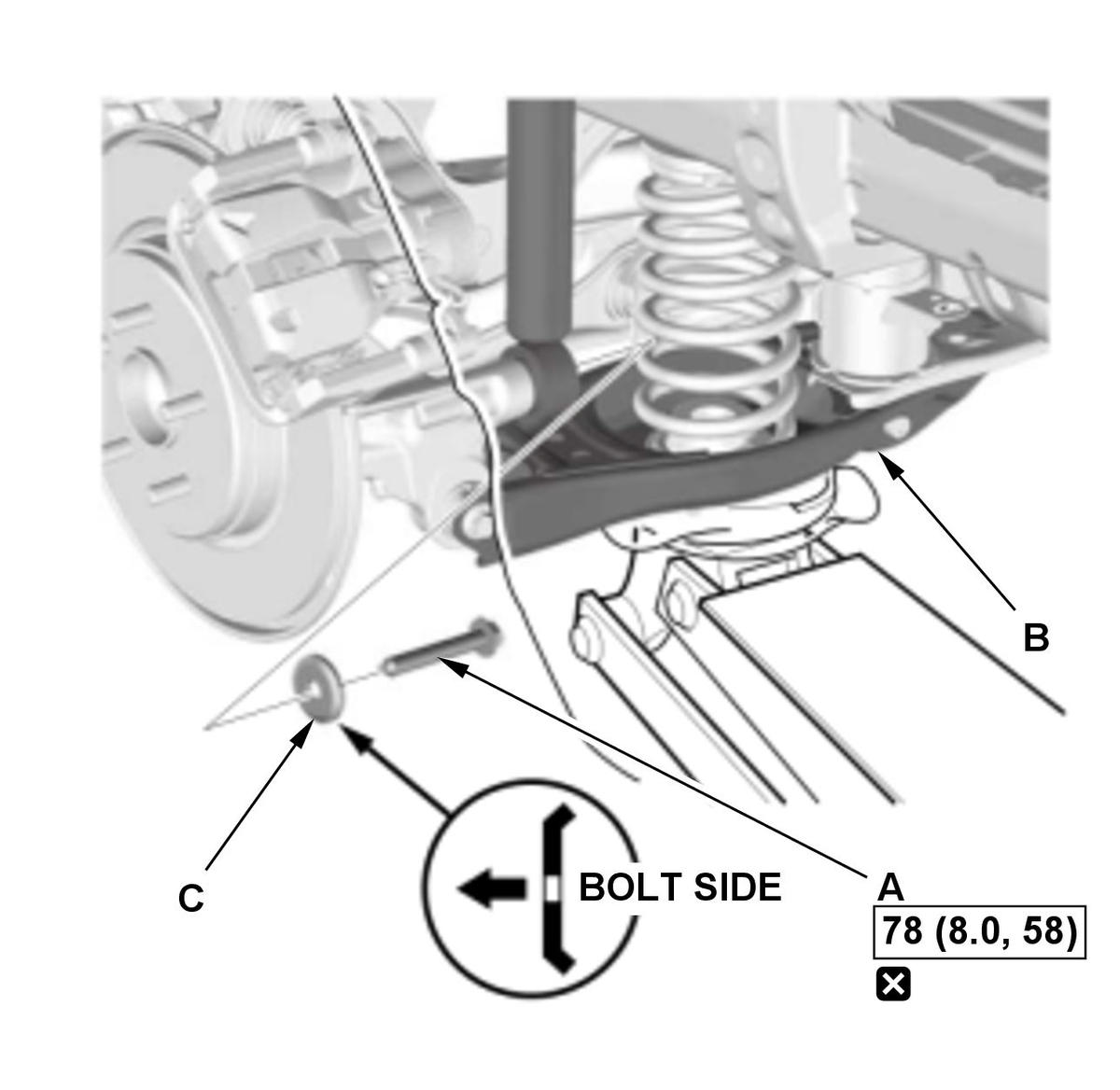

   1. Position a floor jack under lower arm B. 2. Raise the floor jack until the suspension begins to compress. 3. Remove the damper lower mounting bolt (A) and the washer (C). NOTE: Use a new bolt during reassembly.

   Courtesy of HONDA, U.S.A., INC.

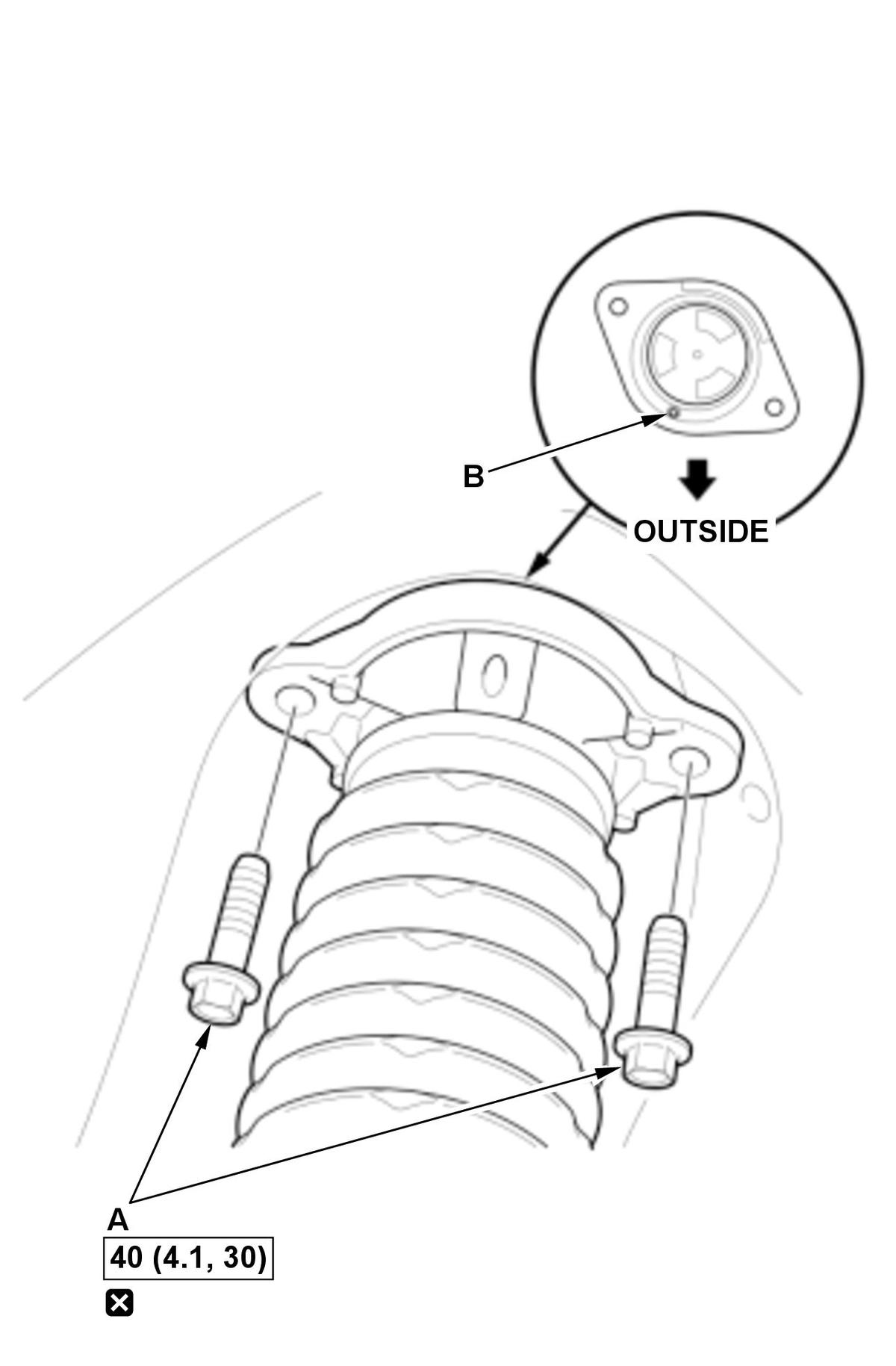

   4. Remove the damper upper mounting bolts (A). NOTE: During installation, install the damper unit in the body with the hole (B) facing outside. Do not let the damper drop down under its own weight. Be careful not to damage the body. Use new flange bolts during reassembly.

4. All Removed Parts - Install

   1. Install all removed parts in the reverse order of removal. NOTE: Loosely install the nuts and/or bolts to install the bushings, load the suspension with the vehicle's weight, and then tighten the nuts and/or bolts to the specified torque.

5. Wheel Alignment - Check
