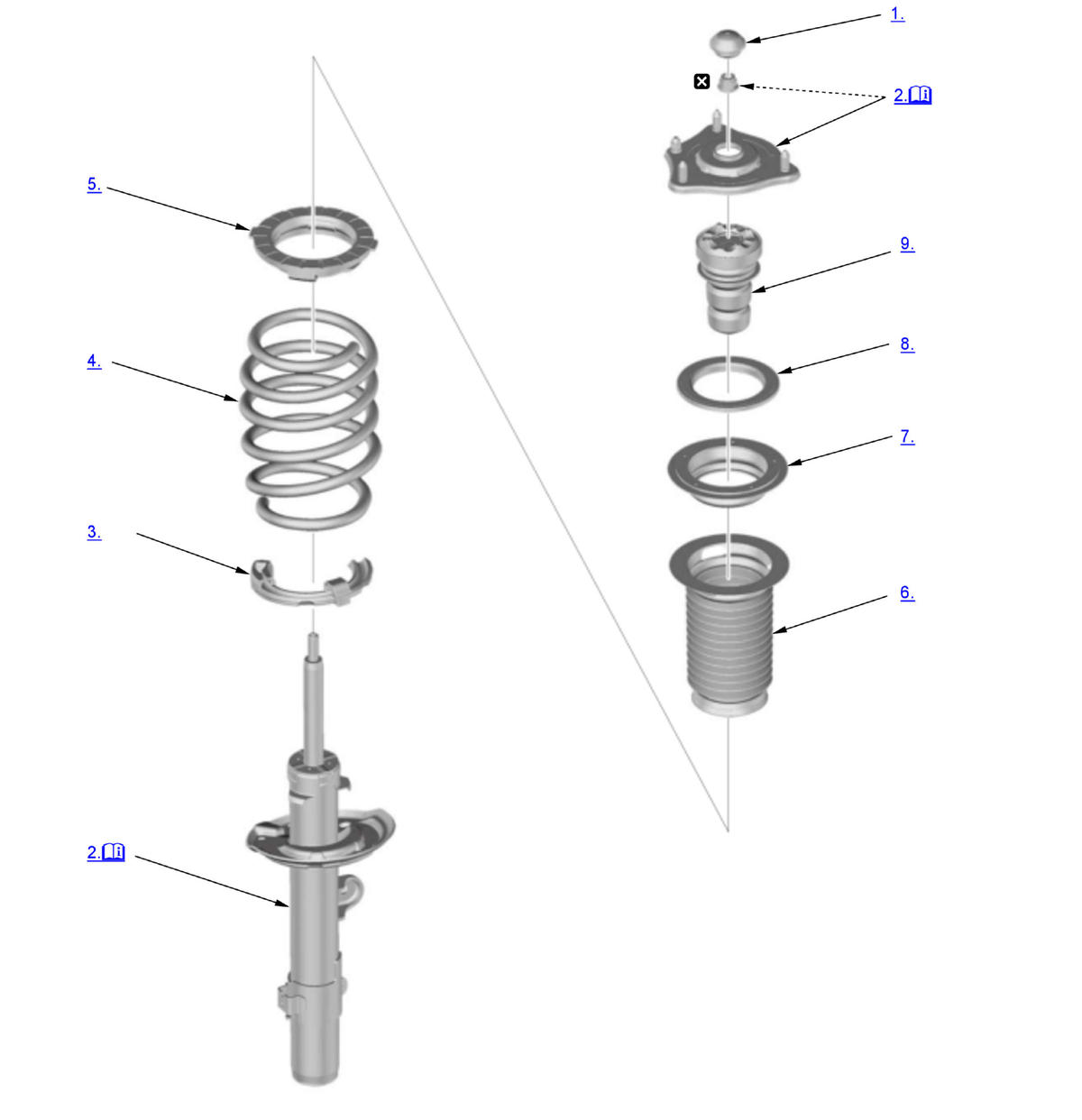

Front Damper/Spring Disassembly, Reassembly, and Inspection: Disassembly

NOTE:

Where icon is shown, further information shown below.
When compressing the damper spring, use a commercially available strut spring compressor according to the manufacturer's instructions.
Check for deterioration and damage to each part during removal.

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Replace

Damper Unit, Damper Mounting Base - Remove

Courtesy of HONDA, U.S.A., INC.

1. Set the damper/spring to the strut spring compressor.

2. Compress the damper spring.

NOTE:

Do not compress the spring more than necessary to remove the nut.

3. Remove the self-locking nut (A) with the strut nut adapter (B), while holding the damper shaft with a hex wrench (C).

4. Remove the damper unit.

5. Release the pressure from the strut spring compressor.

6. Remove the damper mounting base/damper spring from the strut spring compressor.
