Steering System - Testing & Troubleshooting (Except Hybrid)
>>
Circuit Diagram
>>

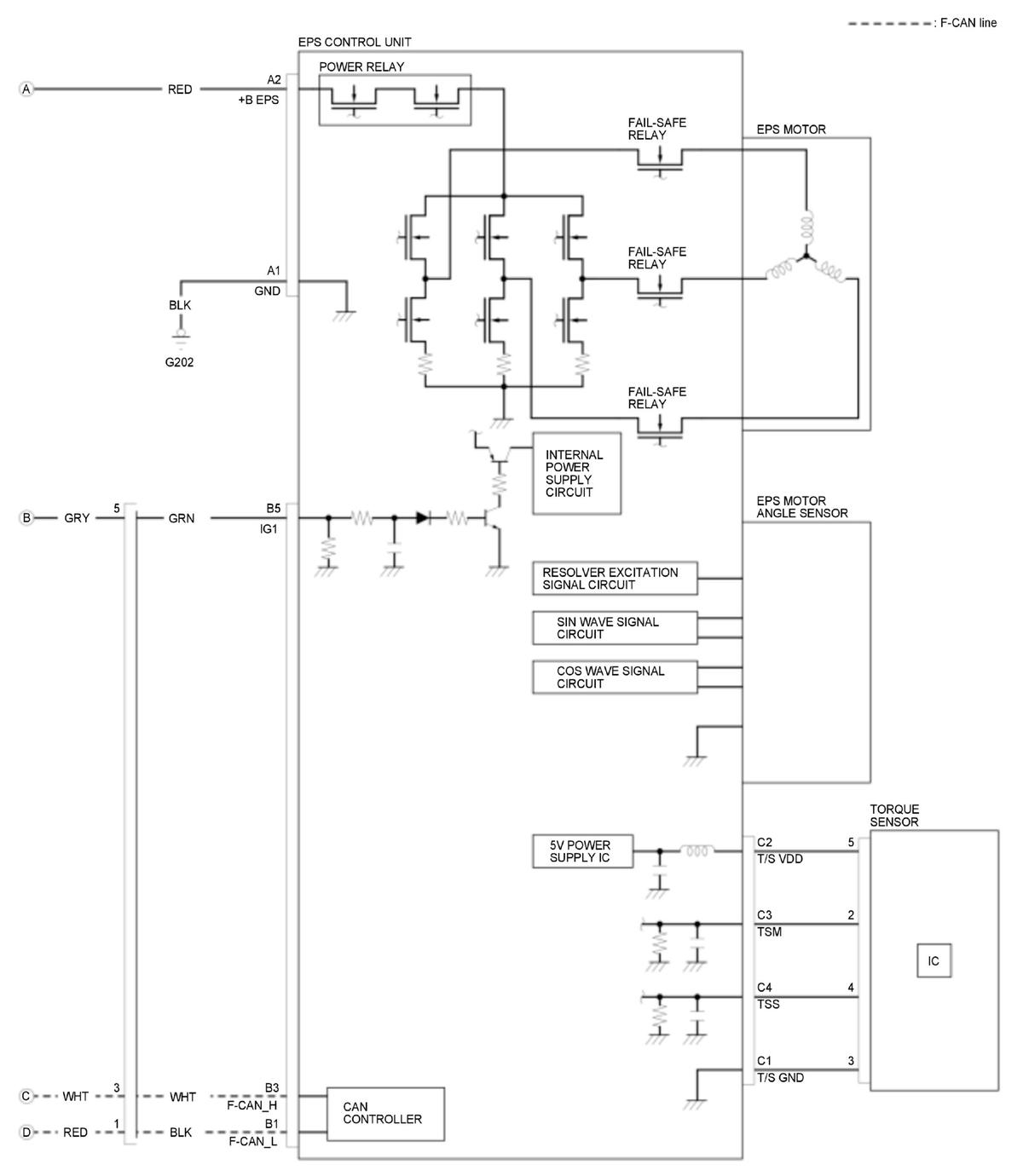

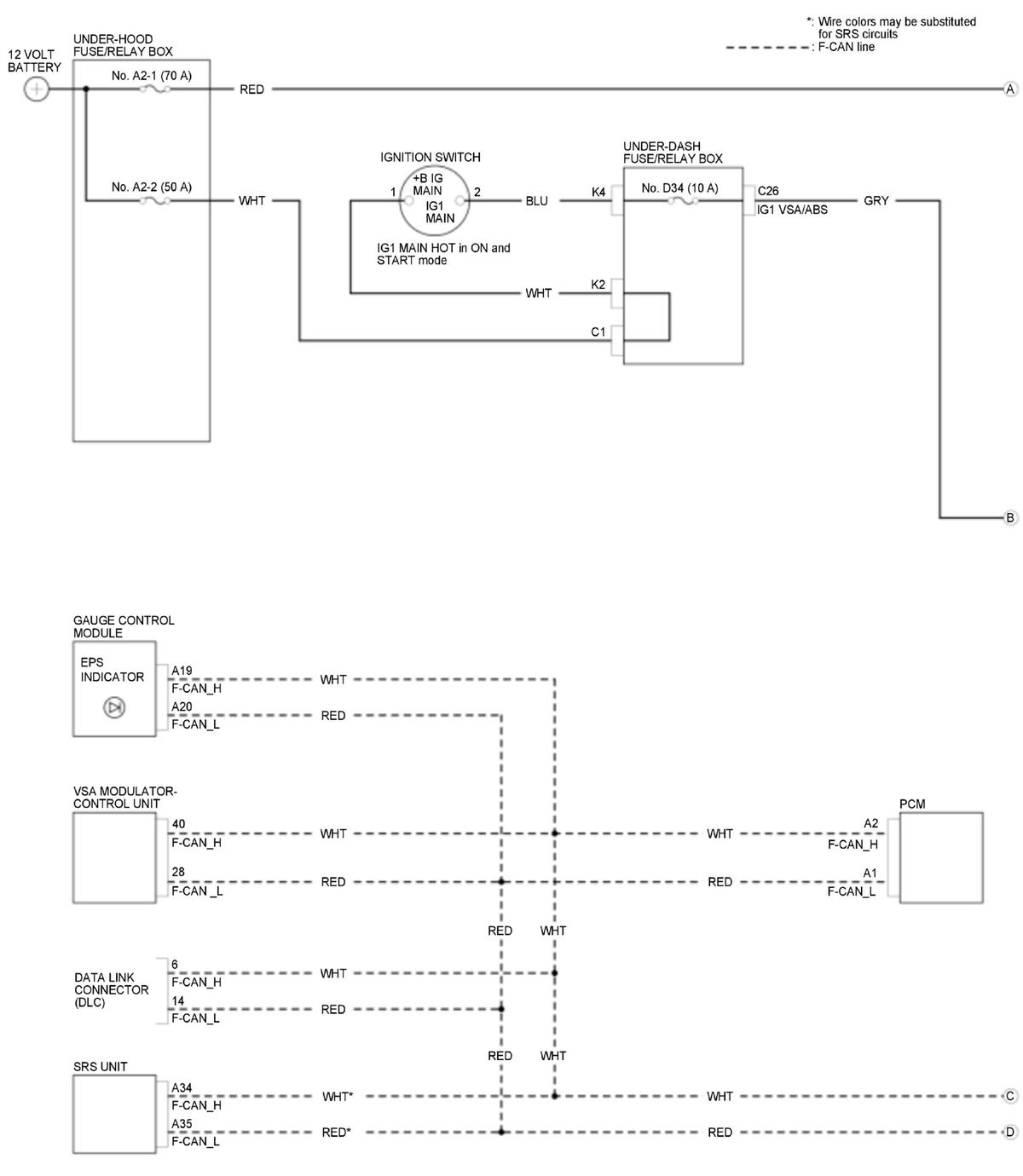

EPS Circuit Diagram(Without CAN Gateway) (2017 2018 2019)
EPS Circuit Diagram(Without CAN Gateway) (2017 2018 2019)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
