Steering System - Testing & Troubleshooting (Except Hybrid)
>>
Circuit Diagram
>>

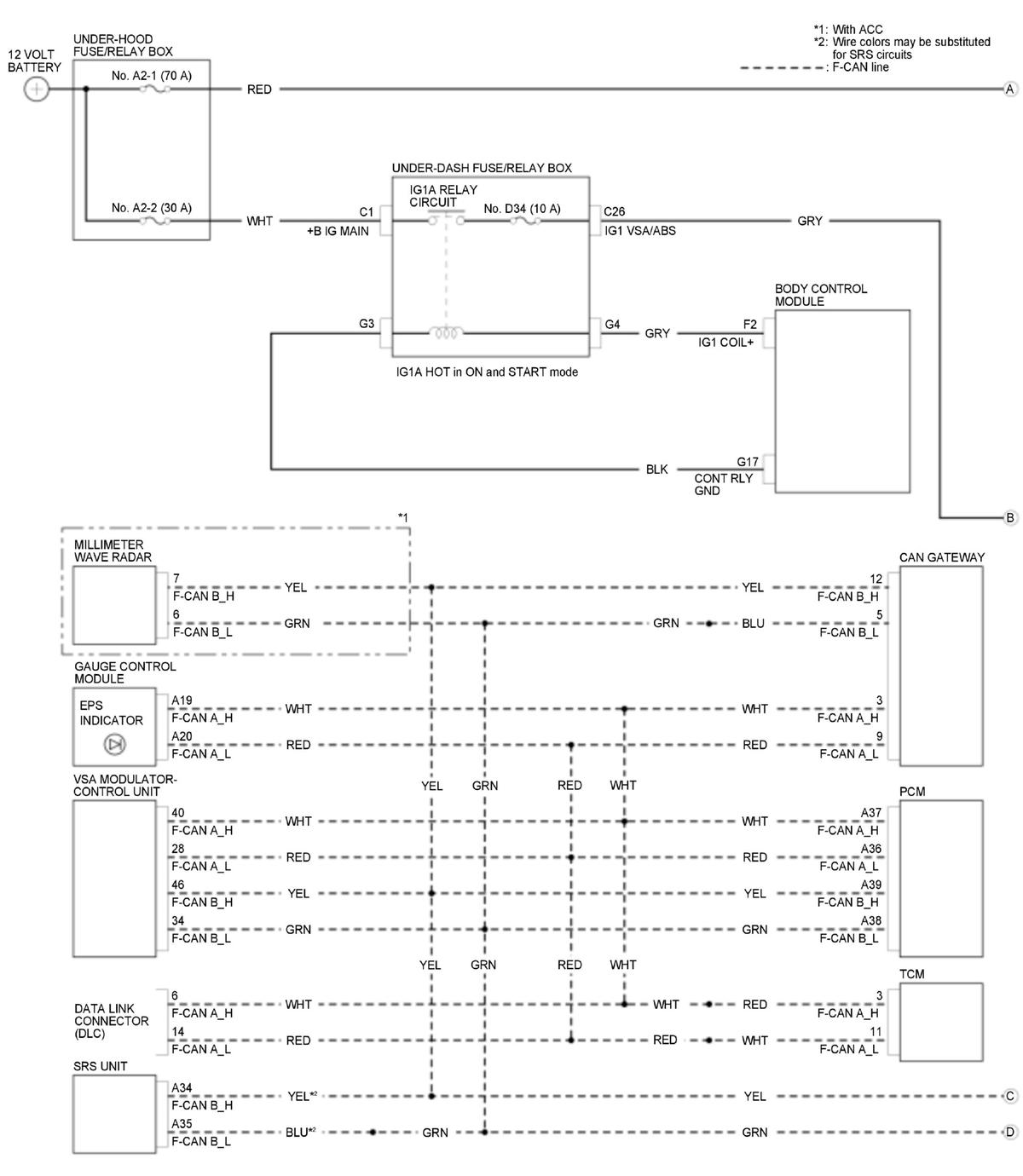

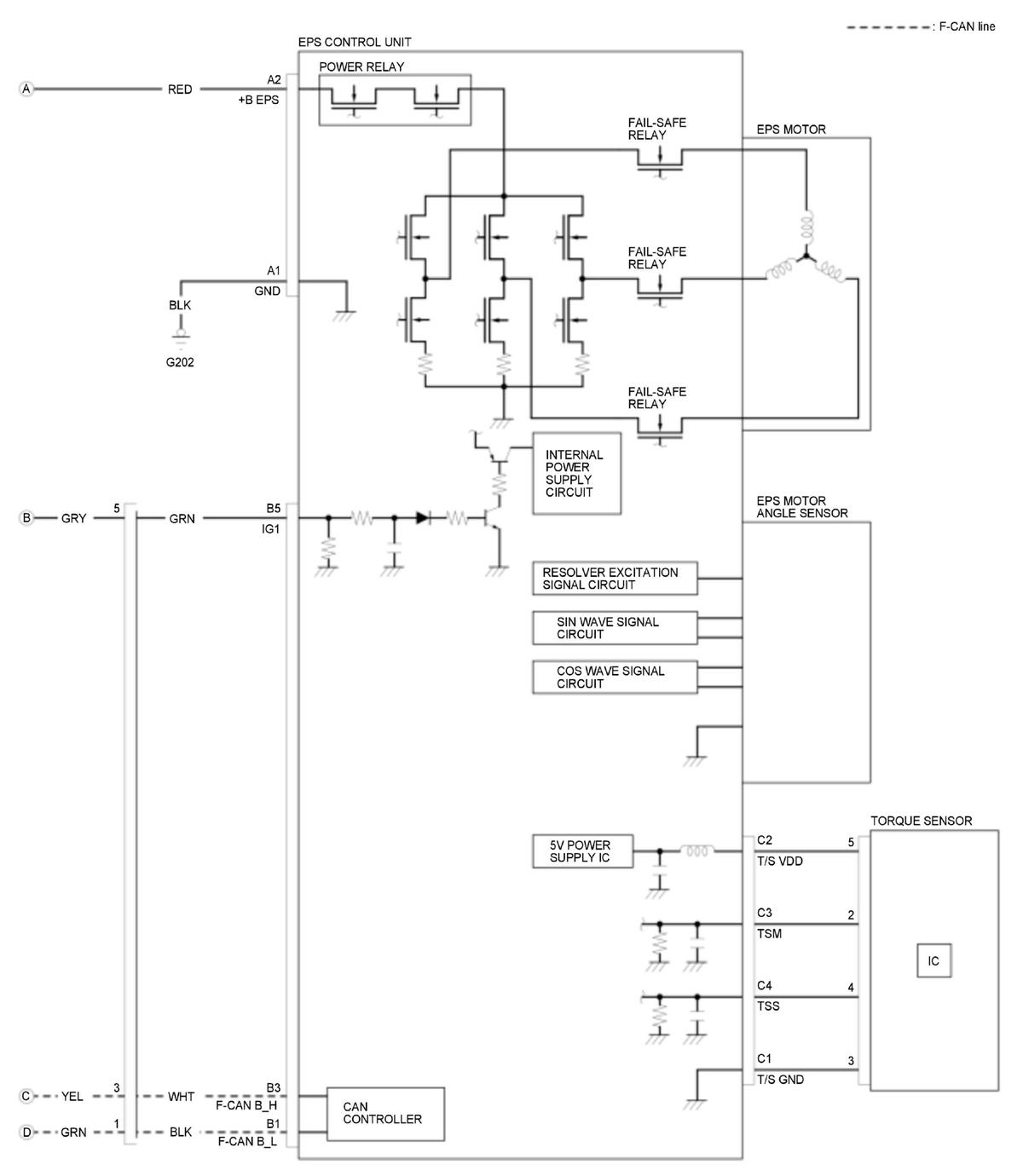

EPS Circuit Diagram(With CAN Gateway (Without Auto Idle Stop System))
EPS Circuit Diagram(With CAN Gateway (Without Auto Idle Stop System))
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
