Steering Joint Disconnection and Reconnection: Removal

NOTE:

• Where icon is shown, further information shown below.
• Do not turn a steering wheel while disconnecting a steering joint.

1

Courtesy of HONDA, U.S.A., INC.

Detailed information, notes and precautions

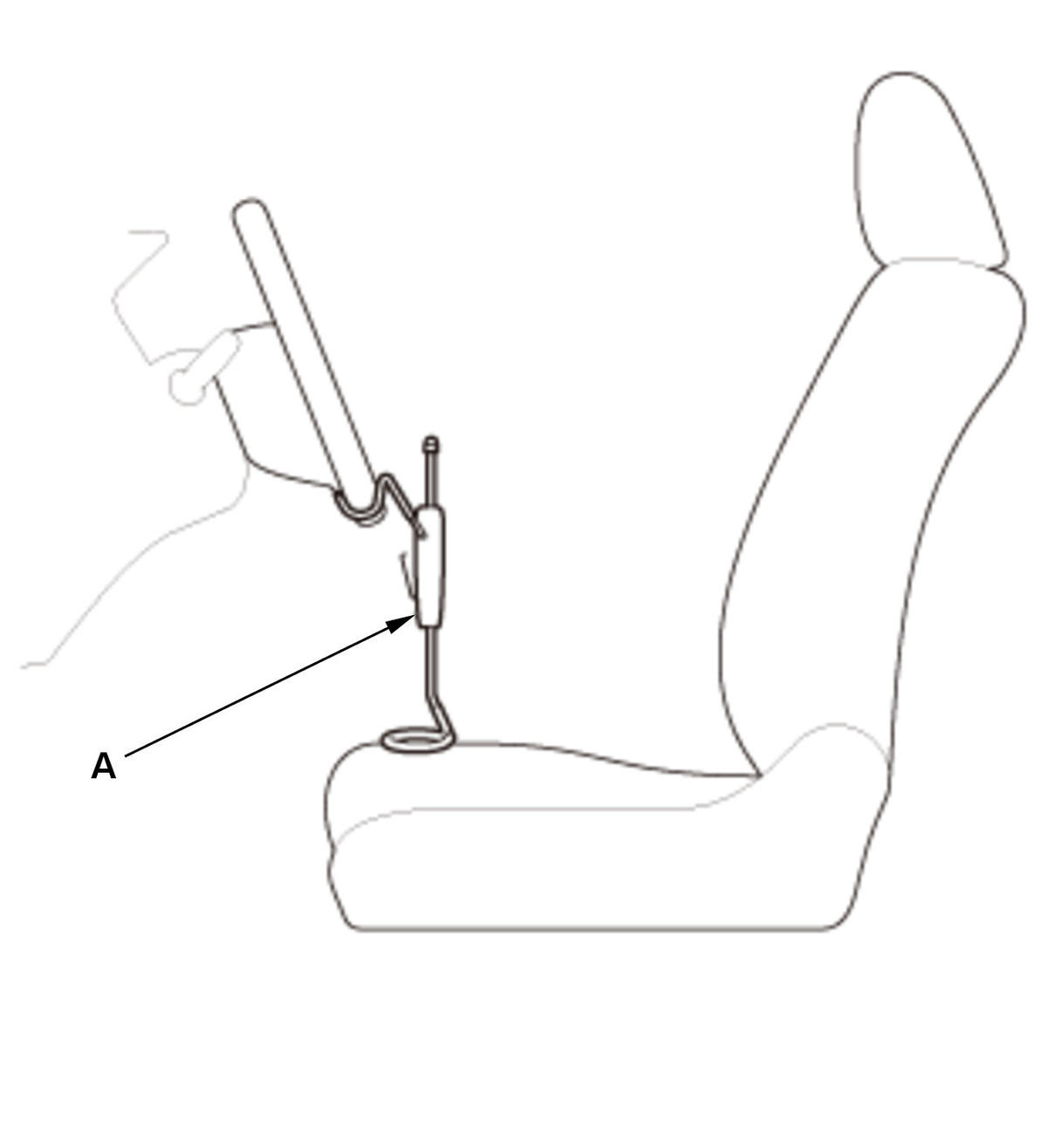

1. Steering Wheel Holder Tool - Install

   Courtesy of HONDA, U.S.A., INC.

   1. Center the steering wheel spoke angle. 2. Install a commercially available steering wheel holder tool (A).

2. Steering Joint Cover - Remove

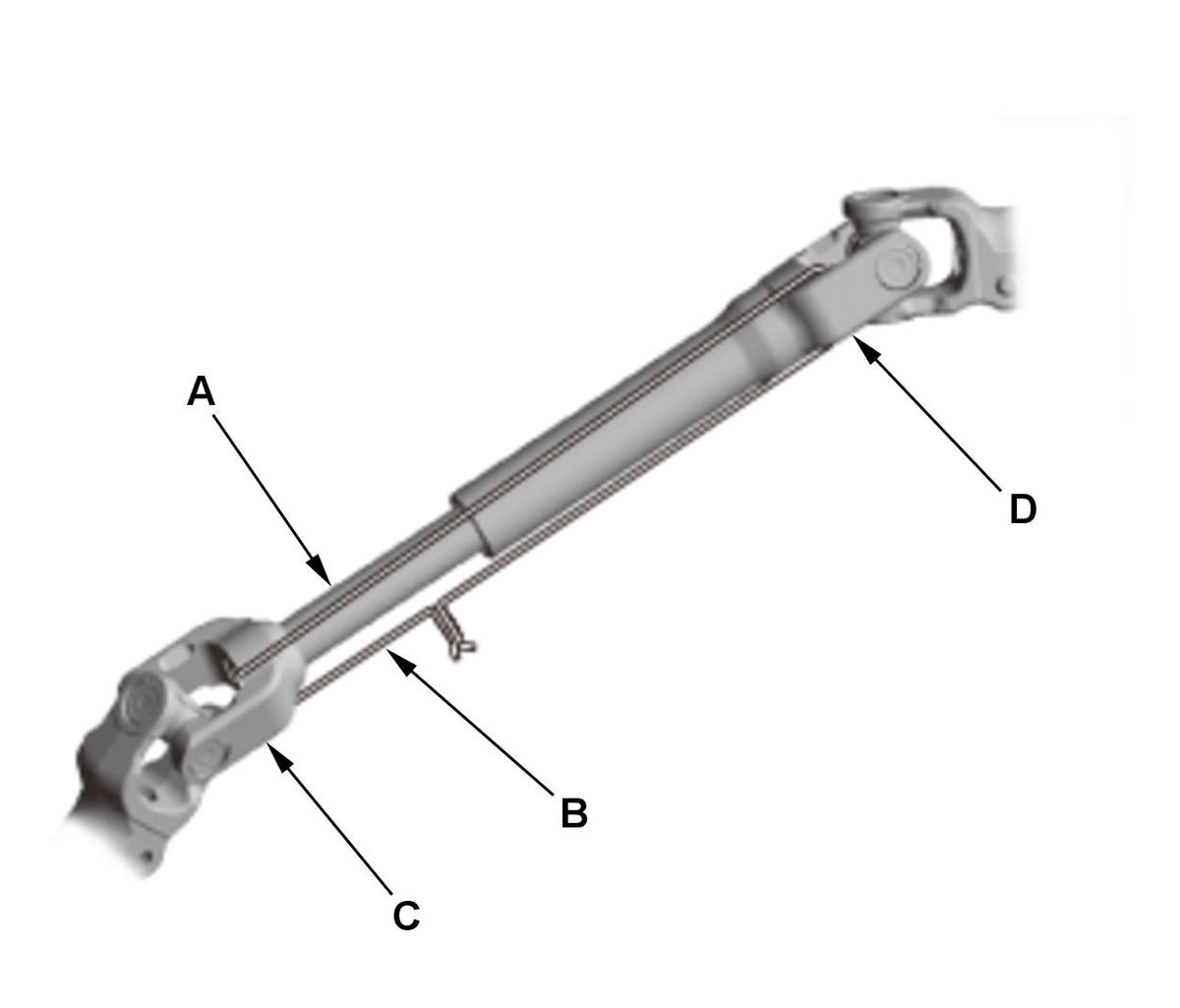

3. Lower Slide Shaft - Hold

   Courtesy of HONDA, U.S.A., INC.

   1. Hold the lower slide shaft (A) on the column with a piece of wire (B) between the joint yoke (C) of the lower slide shaft and the joint yoke (D) of the upper slide shaft to prevent the lower slide shaft from pulling out.

4. Steering Joint - Disconnect

   NOTE:

   • If the center guide is in place and has not moved, leave it in place.
   • If the center guide has come off, discard it.
