Steering Joint Disconnection and Reconnection: Installation

NOTE:

• Where icon is shown, further information shown below.
• Do not turn a steering wheel while connecting a steering joint.

1

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes and precautions
	Torque: N.m (kgf.m, lbf.ft)

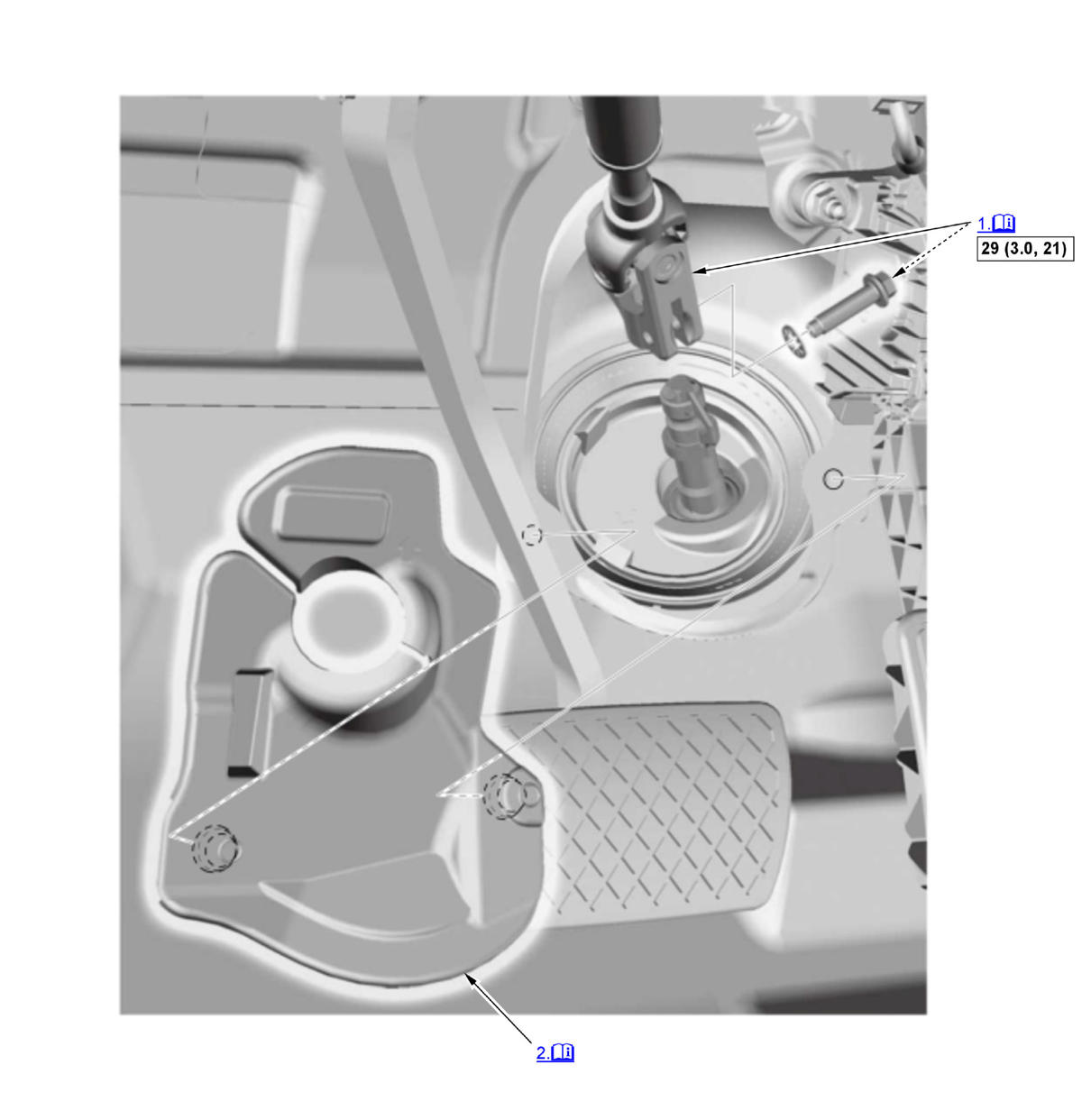

1. Steering Joint - Connect

   Courtesy of HONDA, U.S.A., INC.

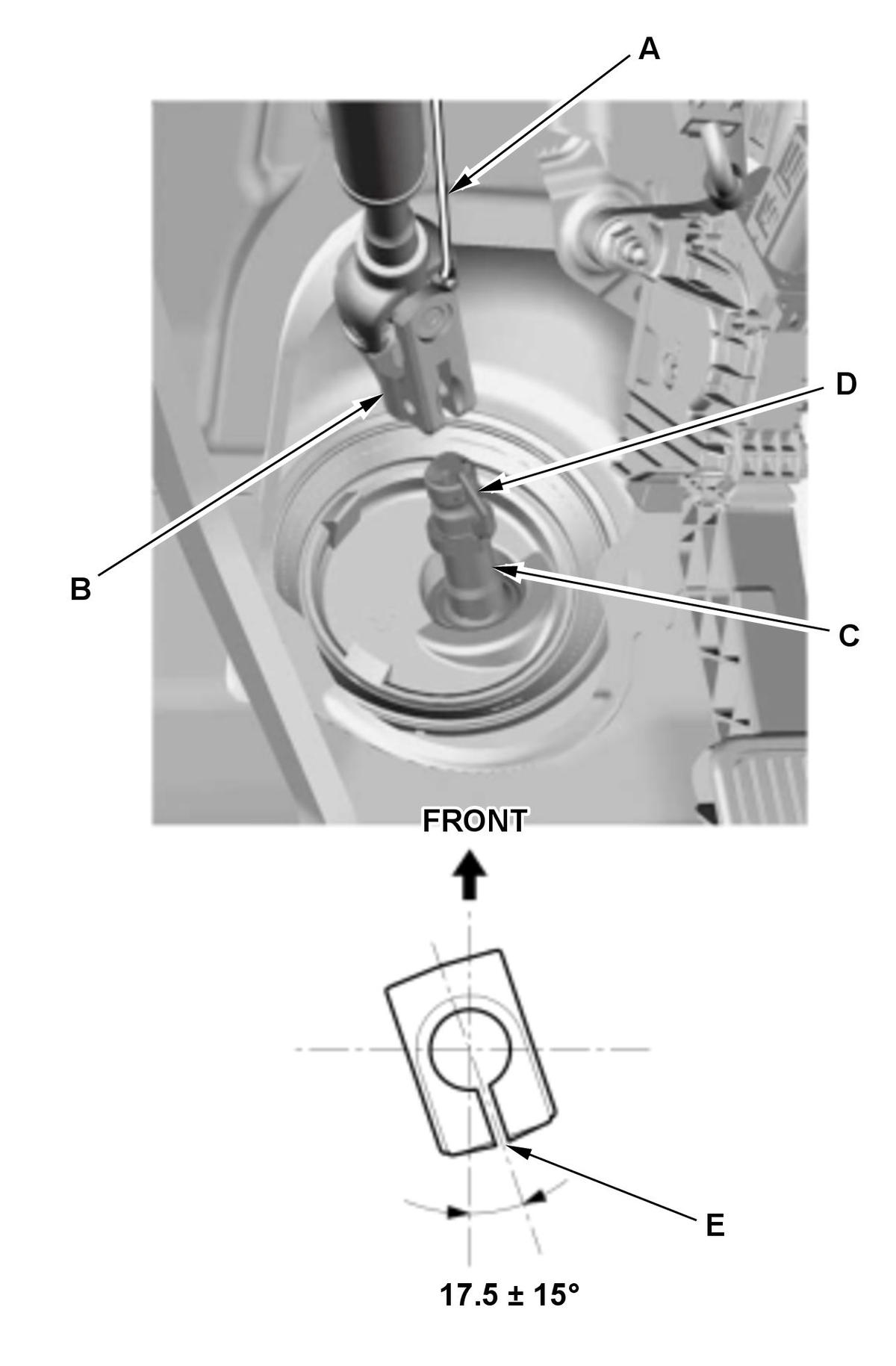

   1. Cut the lower slide shaft holding wire (A). 2. Slip the lower end of the steering joint (B) onto the pinion shaft (C). NOTE:  Pinion shaft with center guide: Install the steering joint by aligning the center guide (D). Pinion shaft without center guide: Position the steering column by aligning the gap (E) within the angle.

   Courtesy of HONDA, U.S.A., INC.

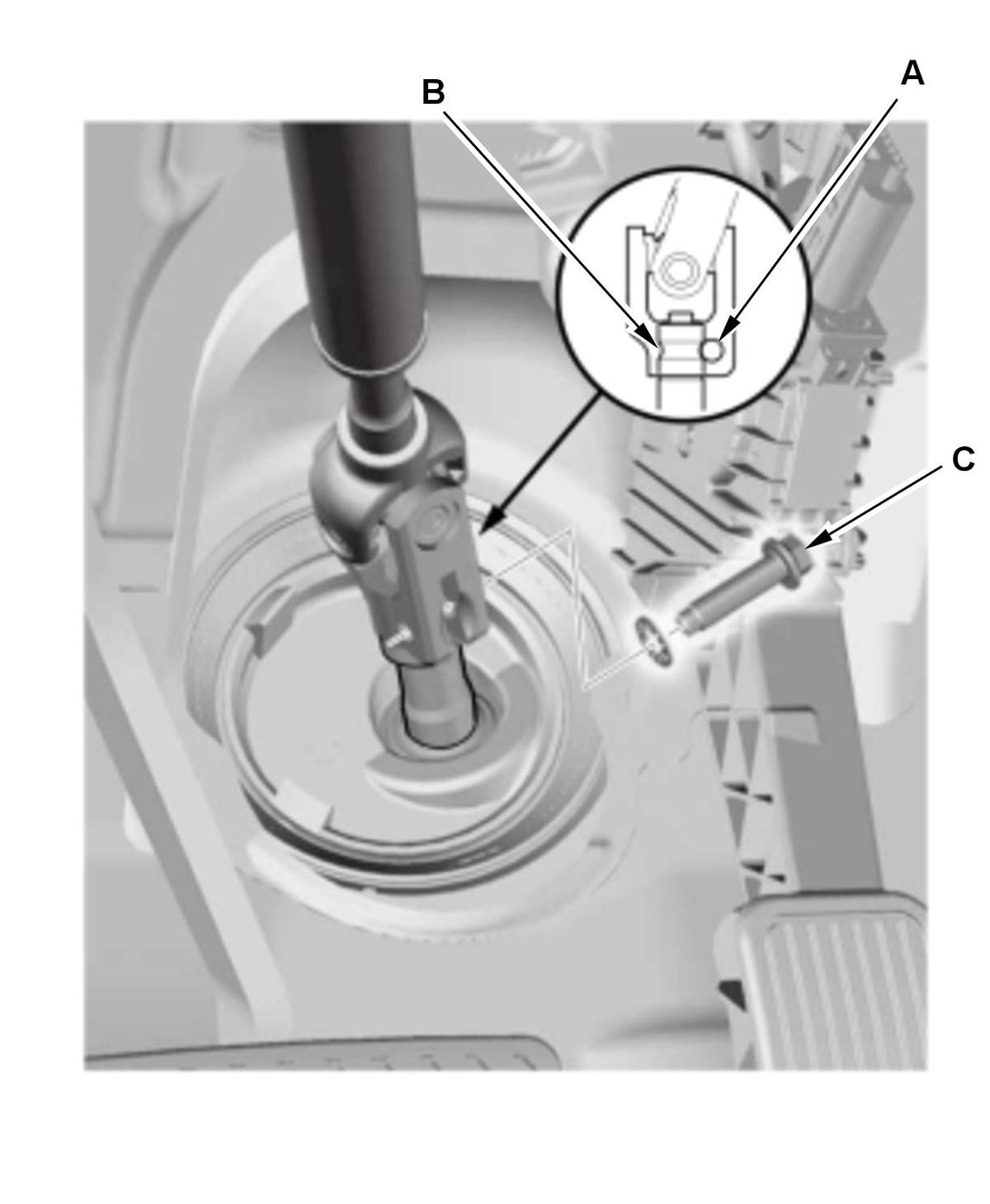

   3. Align the bolt hole (A) on the steering joint with the groove (B) around the pinion shaft. 4. Loosely install the steering joint bolt (C). 5. Be sure that the joint bolt is securely in the groove in the pinion shaft. 6. Pull on the steering joint to make sure that the steering joint is fully seated. 7. Tighten the steering joint bolt to the specified torque.

2. Steering Joint Cover - Install

   NOTE:  Check the steering joint cover for damage and cracks. If the steering joint cover is cracked, replace the steering joint cover.

3. Steering Wheel Holder Tool - Remove
4. VSA Sensor Neutral Position - Memorize
