Steering Gearbox Removal and Installation: Installation

NOTE:

Where icon is shown, further information shown below.
Using clean solvent and a brush, wash any oil and dirt off the end of the steering gearbox. Blow dry with compressed air.
Unless otherwise indicated, illustrations used in the procedure are for AWD model.

Courtesy of HONDA, U.S.A., INC.

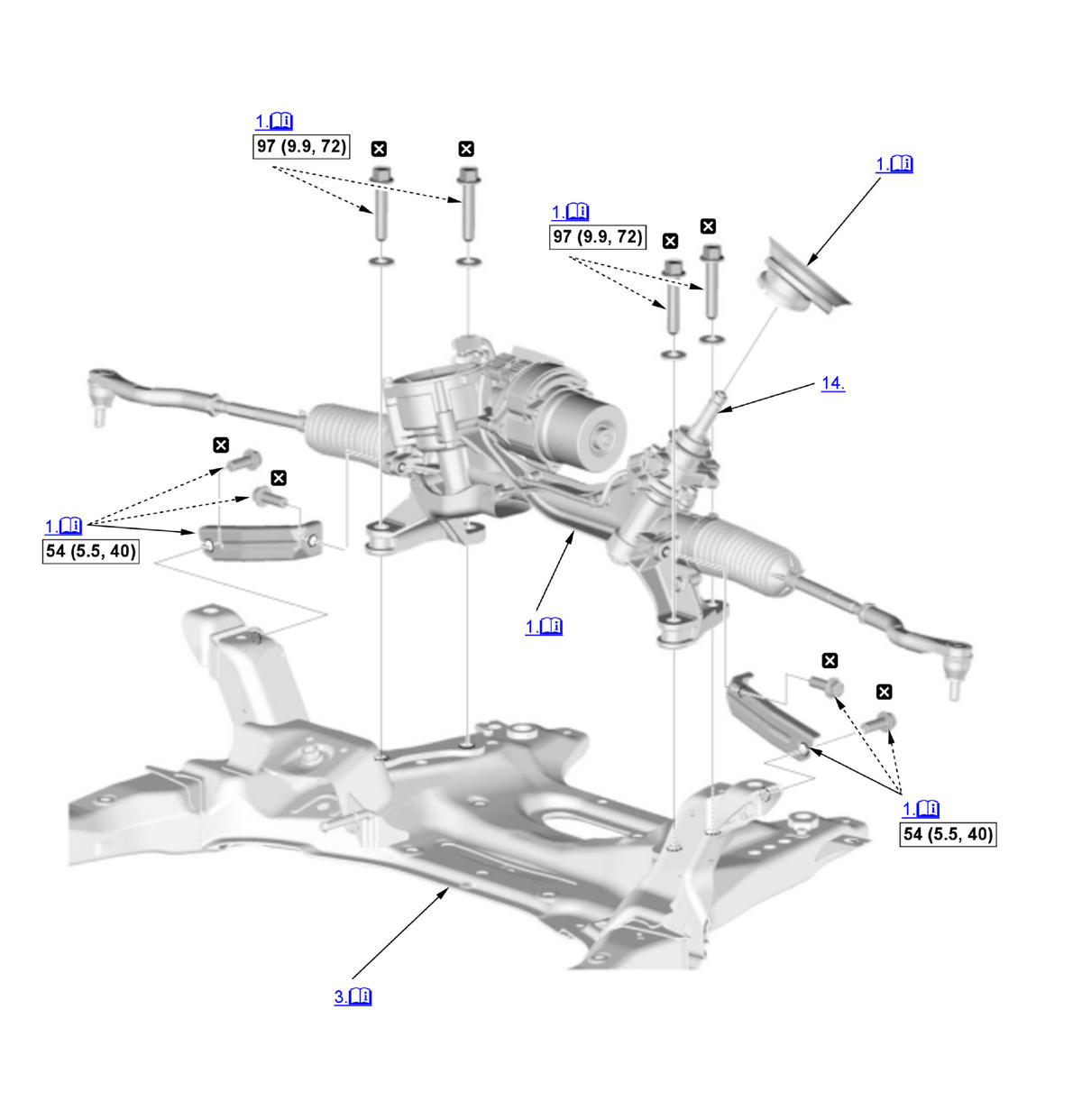

	Detailed information, notes and precautions
	Torque: N.m (kgf.m, lbf.ft)
	Replace

Steering Gearbox - Install

Courtesy of HONDA, U.S.A., INC.

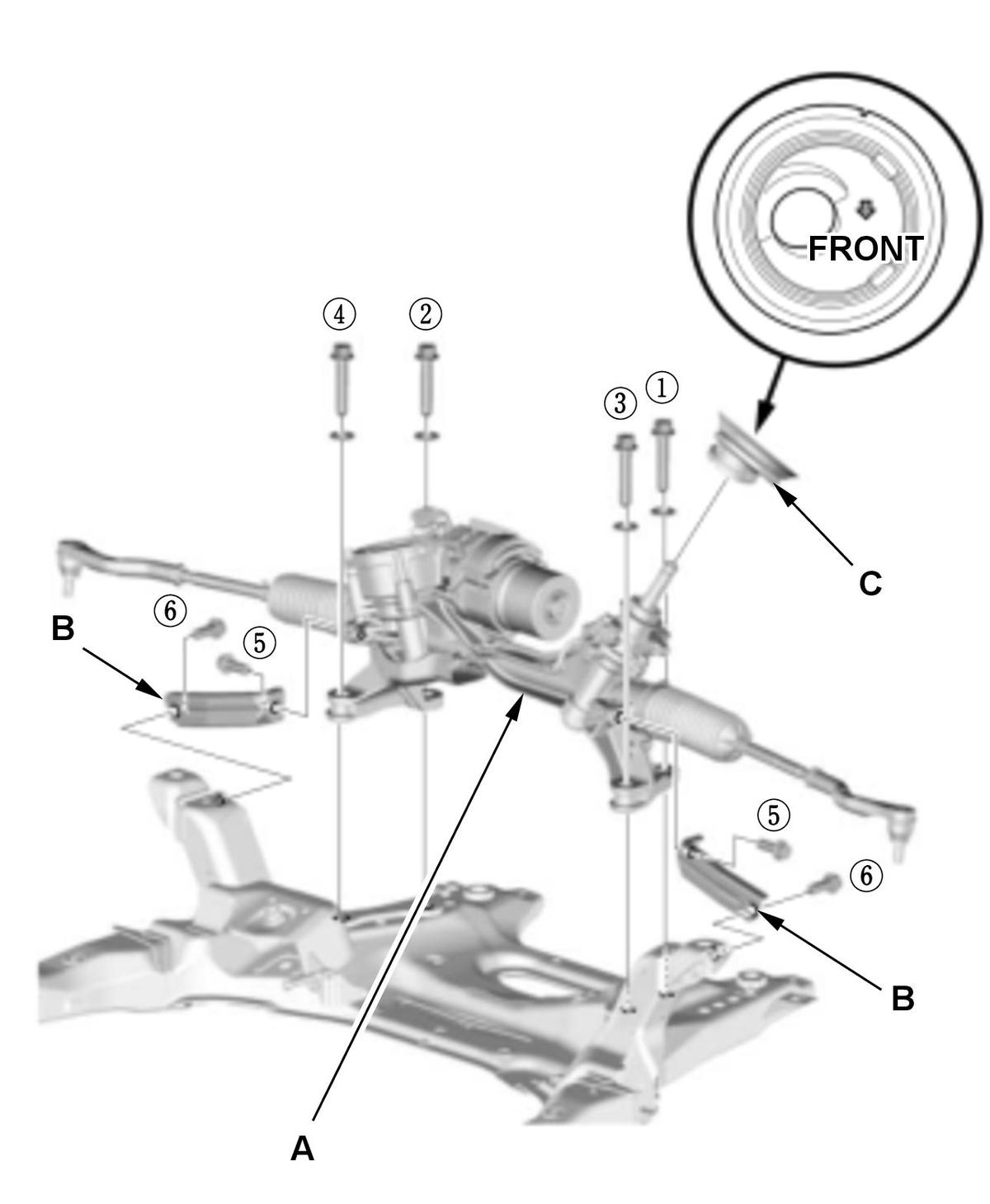

1. Loosely install the steering gearbox (A) and steering gearbox stiffeners (B) to the front subframe with new mounting bolts.

2. Tighten the mounting bolts to the specified torque in the numbered sequence shown.

3. Install the pinion shaft grommet (C).

NOTE: Install the grommet with the arrow facing towards the front of the vehicle.

Front Stabilizer Bar Bushing Holder - Install

1. Install both sides of the front stabilizer bar bushing holder .

Front Subframe - Install

Courtesy of HONDA, U.S.A., INC.

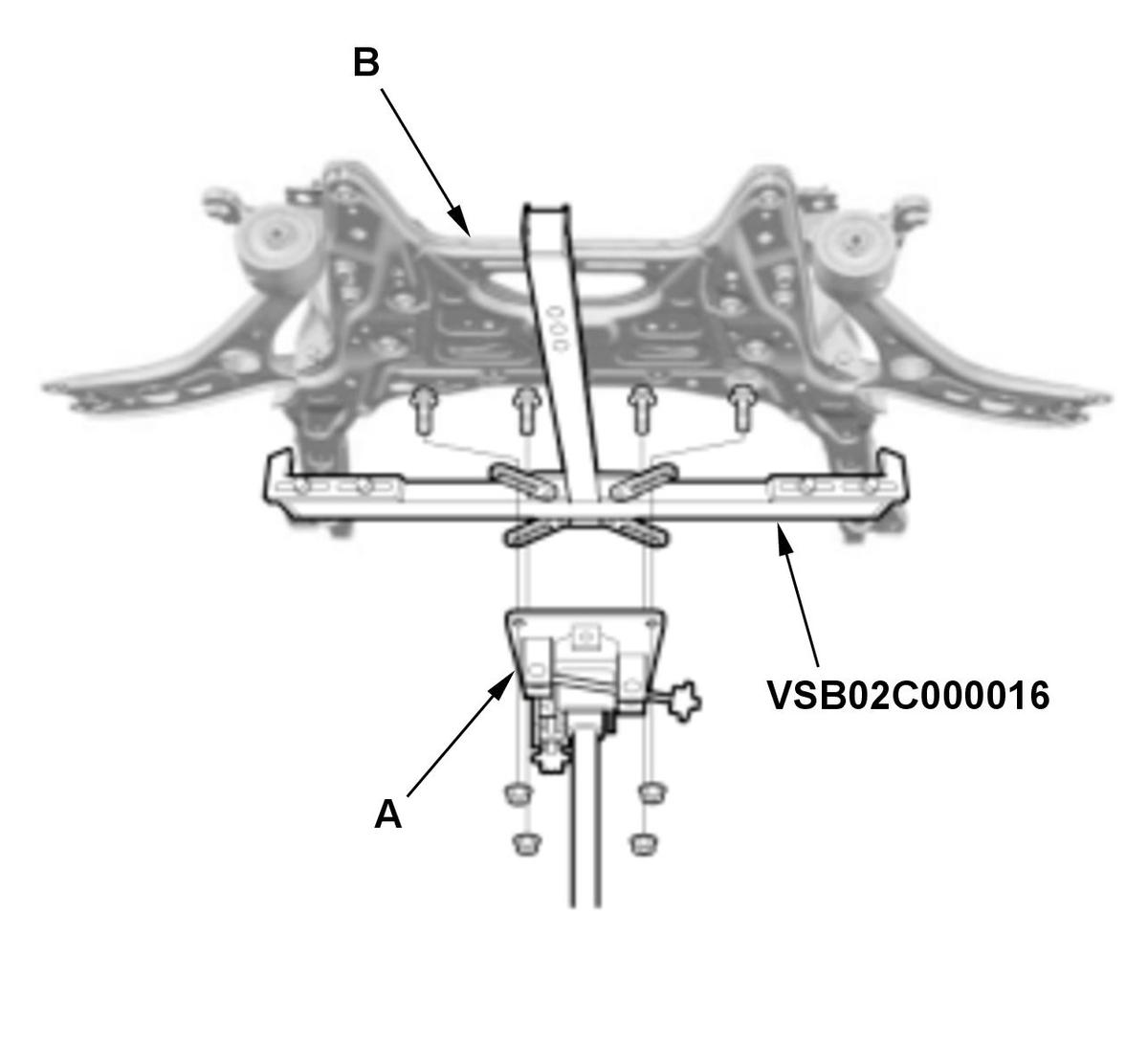

1. Set the subframe adapter (VSB02C000016) on a transmission jack (A), line up the slots in the arms with the bolt holes on the corner of the jack base, and tighten the bolts.

2. Attach the subframe adapter to the front subframe (B).

3. Install the front subframe

Front Lower Arm Mounting Bolt - Install

Courtesy of HONDA, U.S.A., INC.

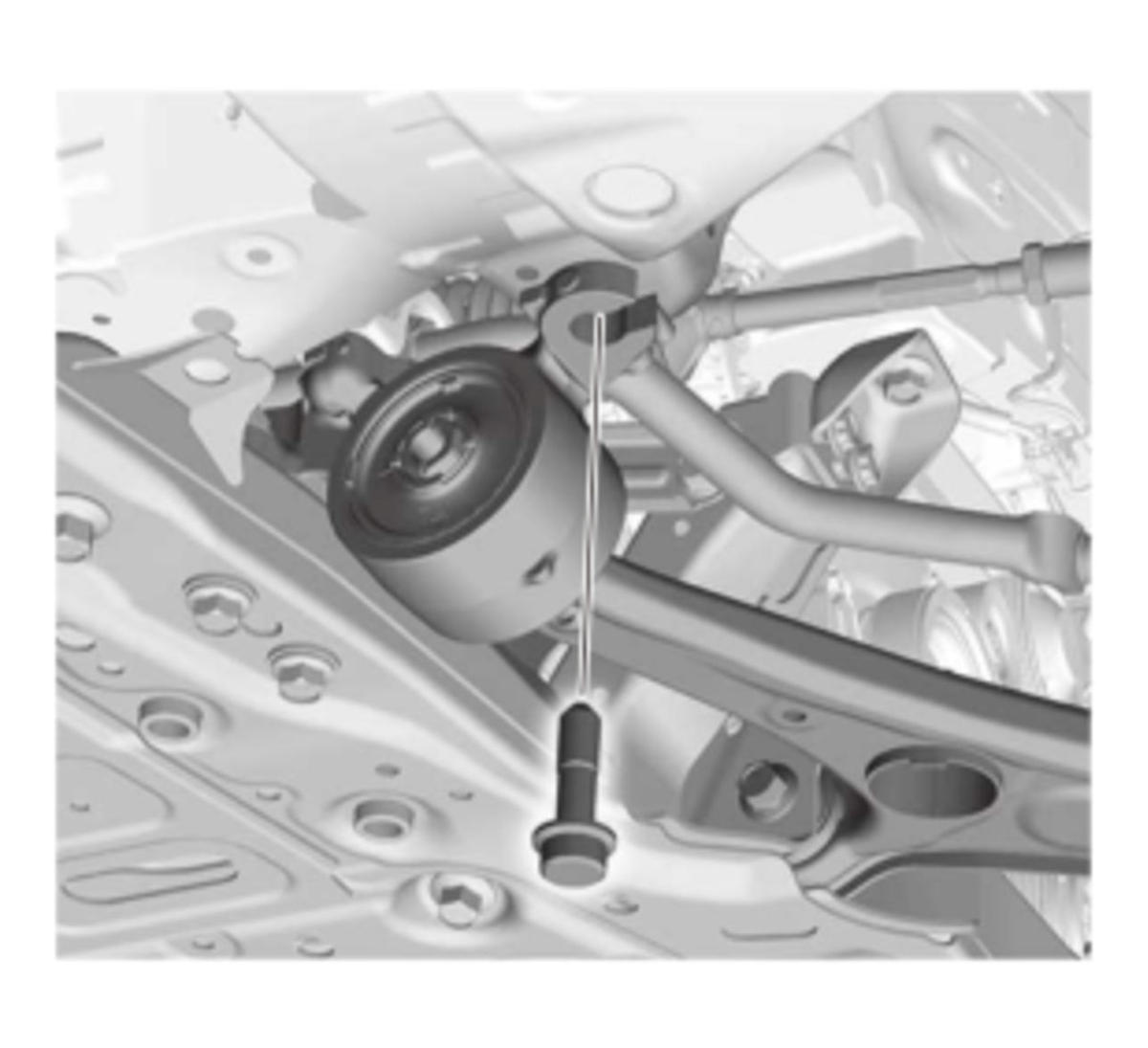

1. Install both sides of the front lower arm mounting bolt to the body .

Lower Torque Rod - Install
Front Subframe Brace - Install
Propeller Shaft - Install (AWD)
Exhaust Pipe A - Install
Front Lower Arm - Connect

1. Connect both sides of the front lower arm to the ball joints .
Stabilizer Link - Connect

1. Connect both sides of the stabilizer link to the stabilizer bar .

Connectors (EPS Harness) - Connect

Courtesy of HONDA, U.S.A., INC.

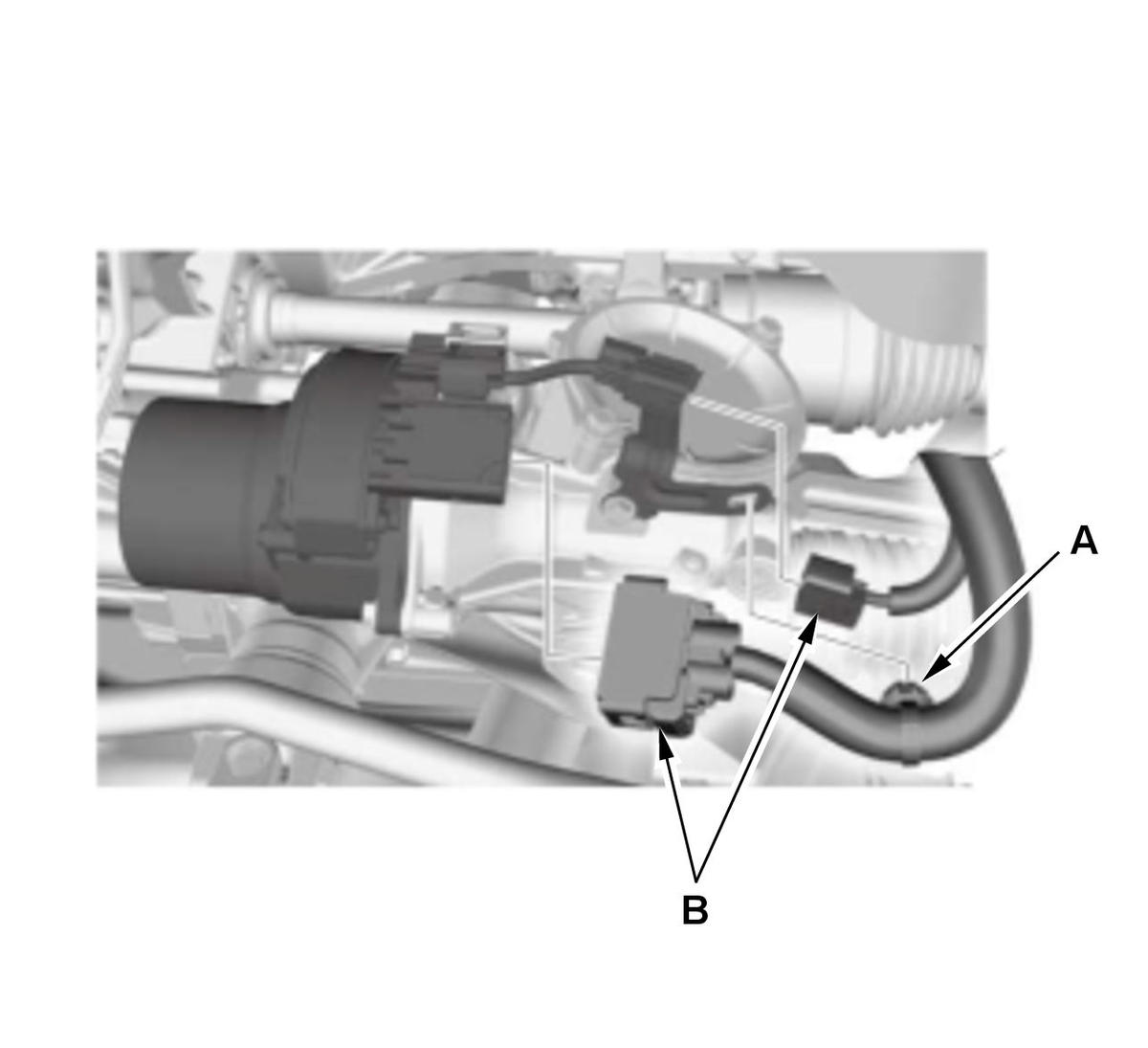

1. Install the harness clip (A).

2. Connect the connectors (B).

Engine Undercover - Install
Tie-Rod End Ball Joint - Connect (Both Sides)
Steering Joint - Connect
Front Wheel - Install
12 Volt Battery Terminal - Connect
Wheel Alignment - Check

Steering Gearbox After Install - Check

1. After installation, check these items:

With the front wheels straight ahead, make sure the steering wheel is centered and the turning revolutions from center to full lock (left and right) is equal. If not, check the installation of the steering wheel and the engagement of the joint/pinion shaft splines.
With the tires raised off the ground, check for noise and abnormality by turning the steering wheel fully to the right and left several times.
Check the power steering assist .
Check that the EPS indicator does not come on.

VSA Sensor Neutral Position - Memorize
