Exploded View

  1. Steering Wheel

    Exploded view

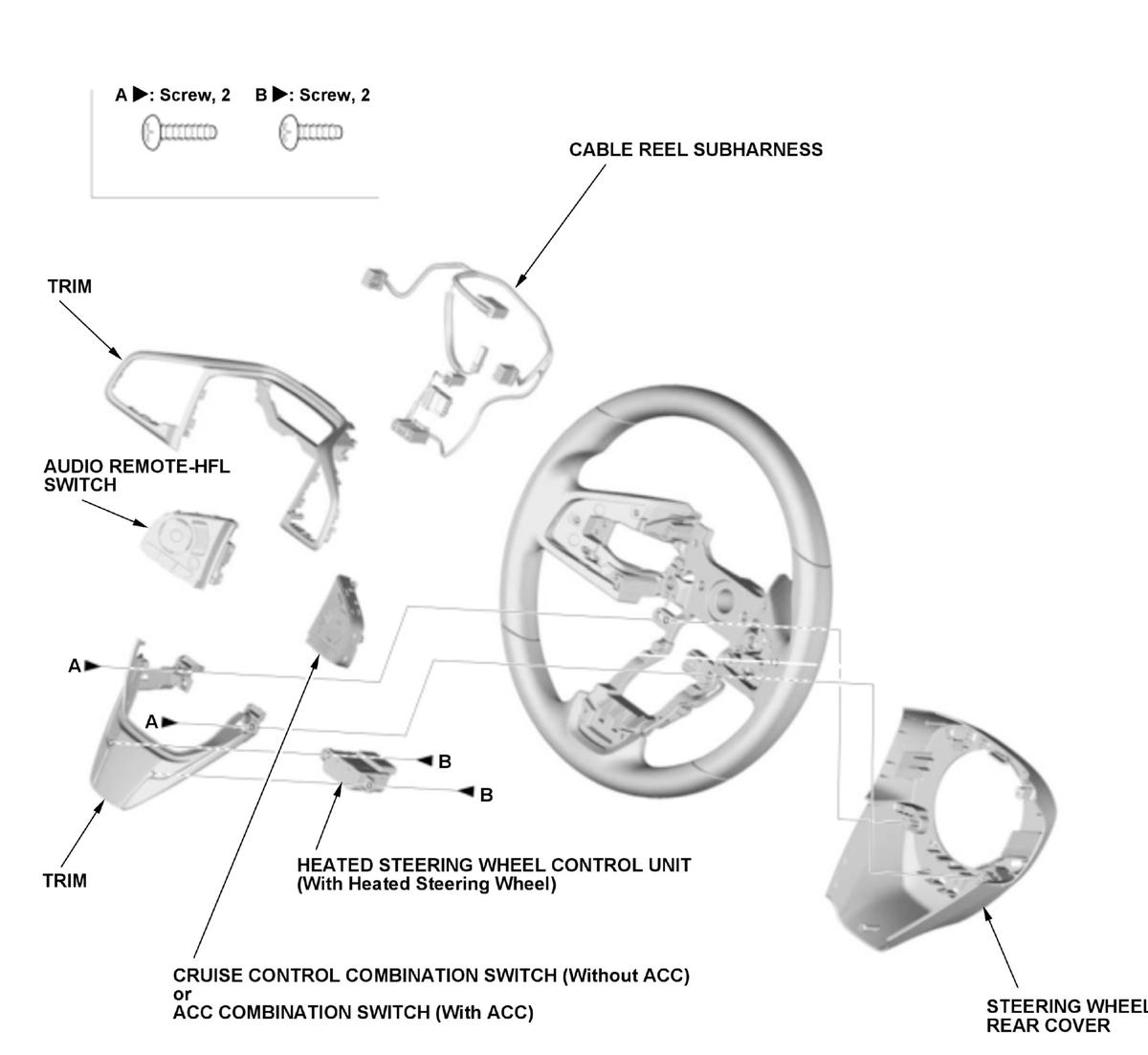

    Single Inflator Type

    GHH431118Courtesy of HONDA, U.S.A., INC.

    Dual Inflators Type

    GHH431119Courtesy of HONDA, U.S.A., INC.
