Removal and Installation

1

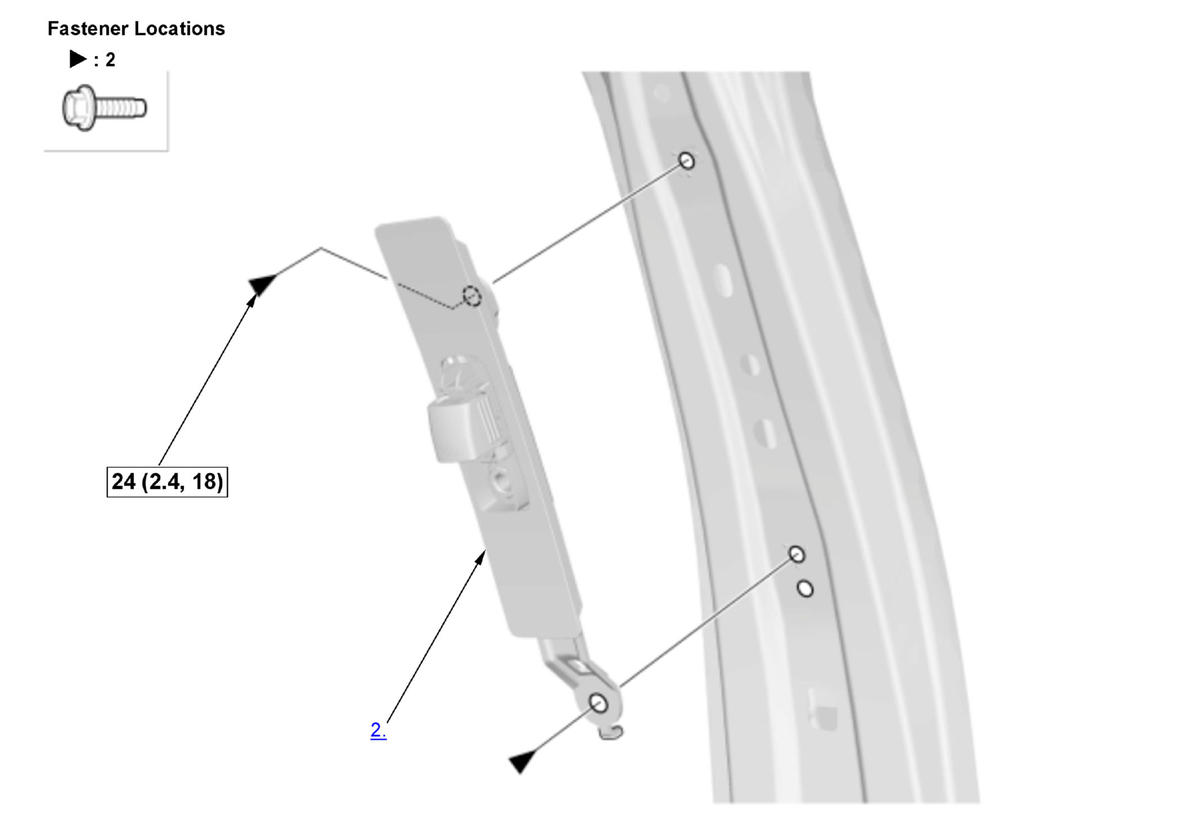

Fig 1: Seat Belt Shoulder Anchor Adjuster Replacement Components With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

Torque: N.m (kgf.m, lbf.ft)

1. B-pillar Upper Trim - Remove
2. Front Seat Belt Shoulder Anchor Adjuster - Remove
3. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.
