Wiring Precautions

Some of the SRS wiring can be identified by a special yellow outer covering, and the SRS connectors can be identified by their yellow color. Observe the following instructions.

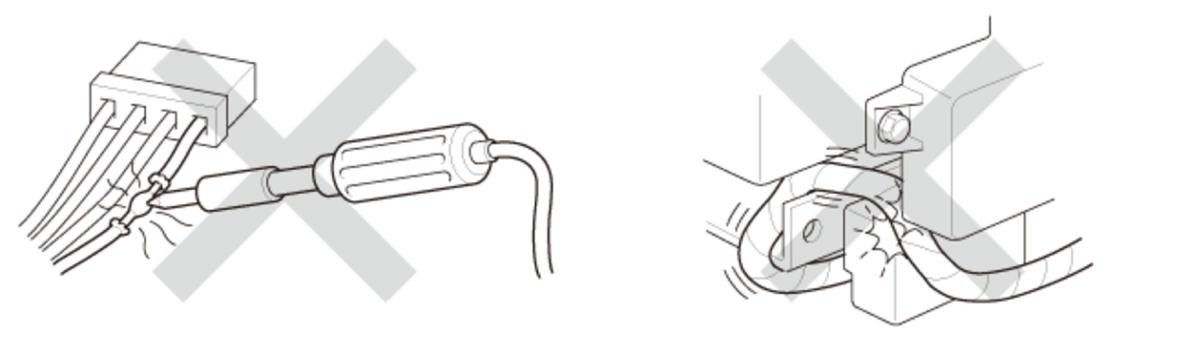

• Never attempt to modify, splice, or repair SRS wiring. If there is an open or damage to the SRS wiring, replace the harness.

Courtesy of HONDA, U.S.A., INC.

• Be sure to install the harness wires so they do not get pinched or interfere with other parts.
• Make sure all SRS ground locations are clean, and the grounds are securely fastened for optimum metal-to-metal contact. Poor grounds can cause intermittent problems that are difficult to diagnose.
• Do not use any silicone based cleaners or lubricants on any SRS connectors or terminals.
