Side Curtain Airbags

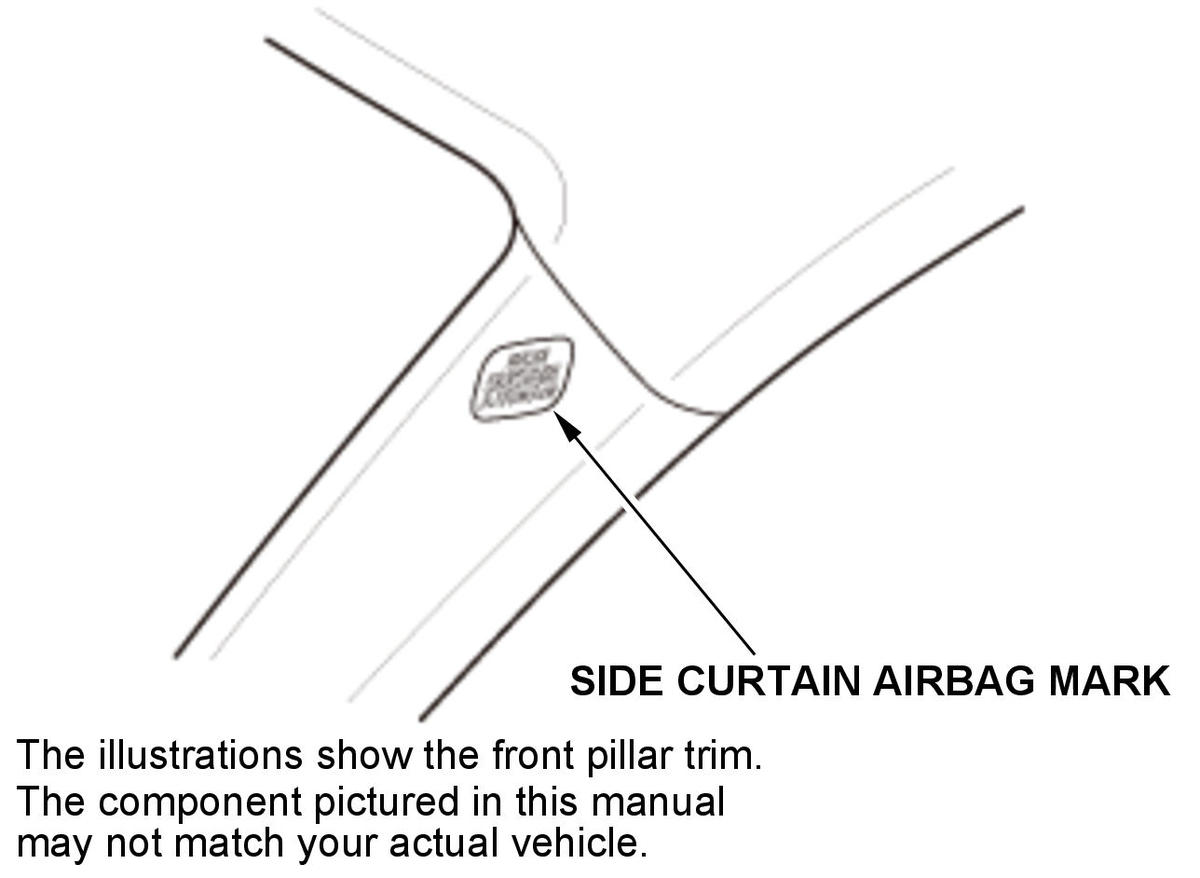

The A-pillar trim and the quarter pillar trim with side curtain airbags have a "SIDE CURTAIN AIRBAG" mark.

Courtesy of HONDA, U.S.A., INC.

The side curtain airbag module assembly is a long, jointed part containing an inflator, a flexible bag, and brackets. When removing or installing the side curtain airbag assembly, never:

• Handle the flexible bag.
• Drop the airbag assembly.
• Cut, tear, or unwrap the tape strips.
