Lever-Locked Connector

The SRS unit connectors have a lever lock.

SRS Unit Connectors

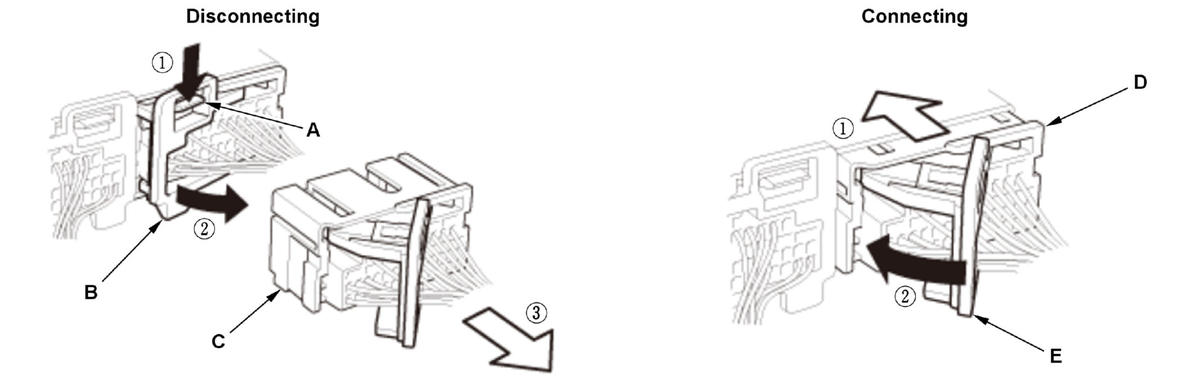

Disconnecting/Connecting

• To release the lock (A), pull the lever (B) while pushing the lock on the outside of the connector, then pull out the connector (C).
• To reconnect the connector (D), push in on the connector. As the connector is pressed in, the lever (E) moves to the locked position.
