Supplemental Restraint System - Testing & Troubleshooting (Except Hybrid)
>>
Circuit Diagram
>>

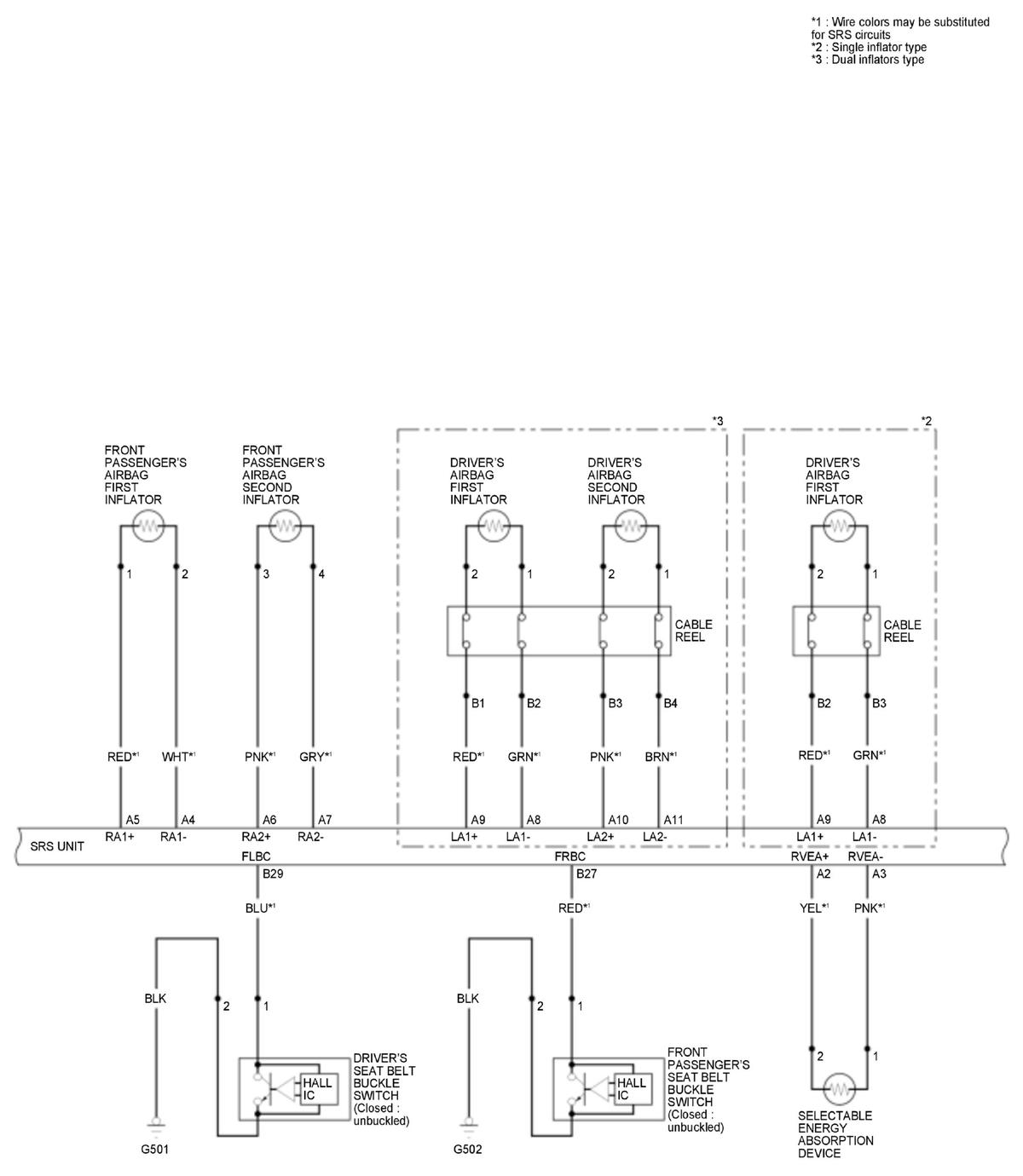

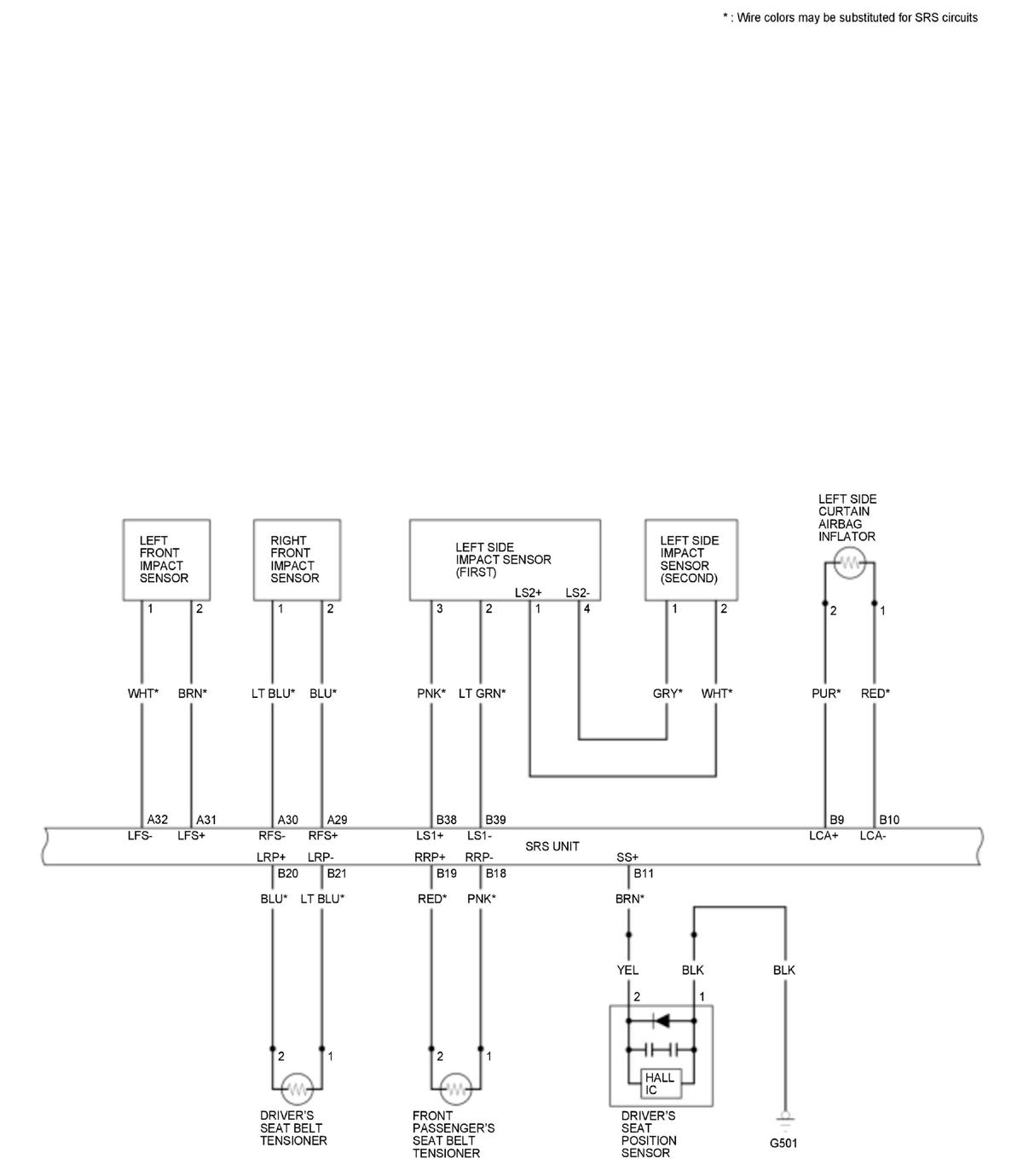

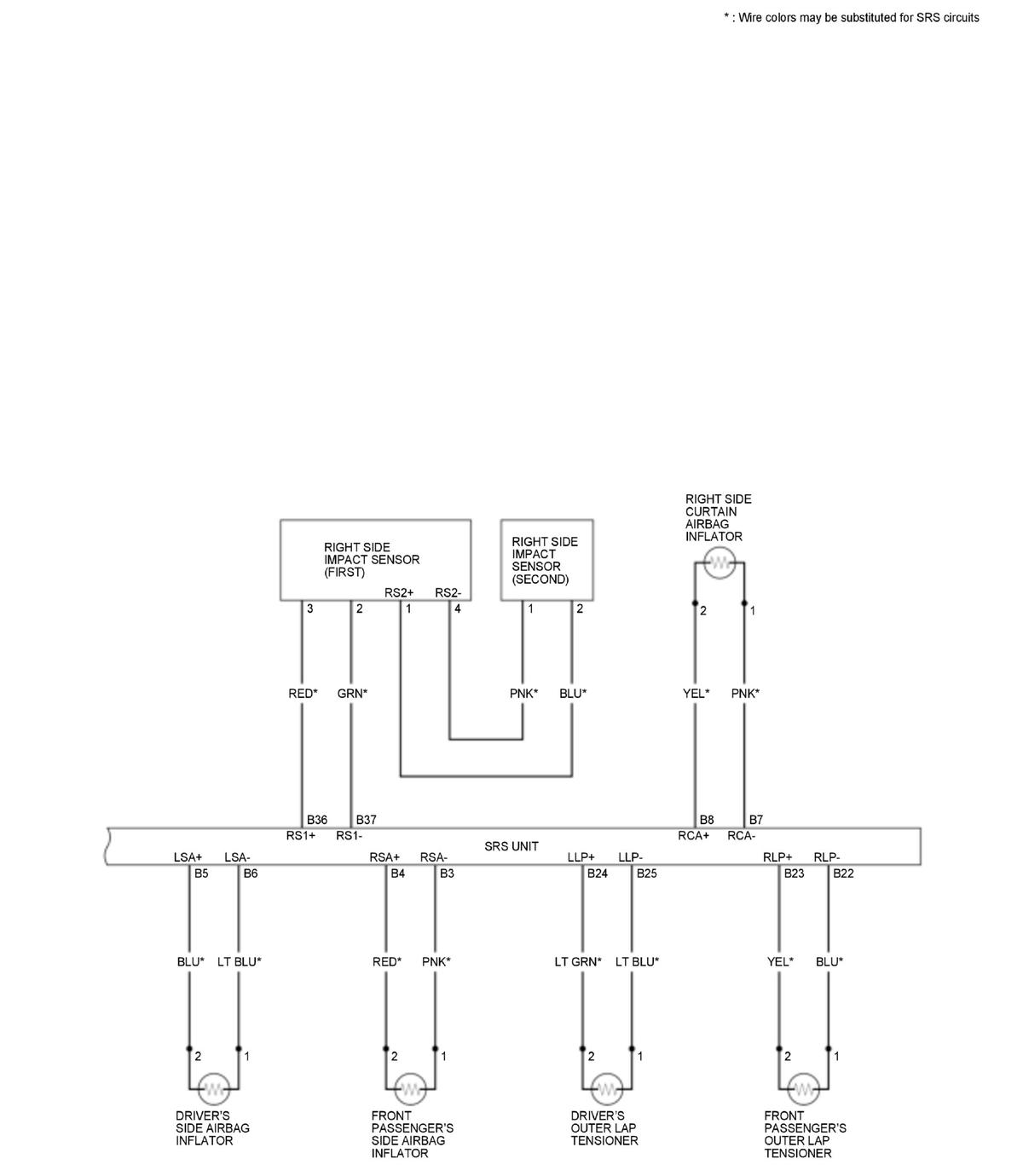

SRS Circuit Diagram (KA/KC)
SRS Circuit Diagram (KA/KC)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
