Driver's Airbag Removal and Installation: Installation

  1. Spring - Install (If necessary)
    Single Inflator Type
    GHH431279GHH431280Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

    Dual Inflators Type

    GHH431279GHH431280Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

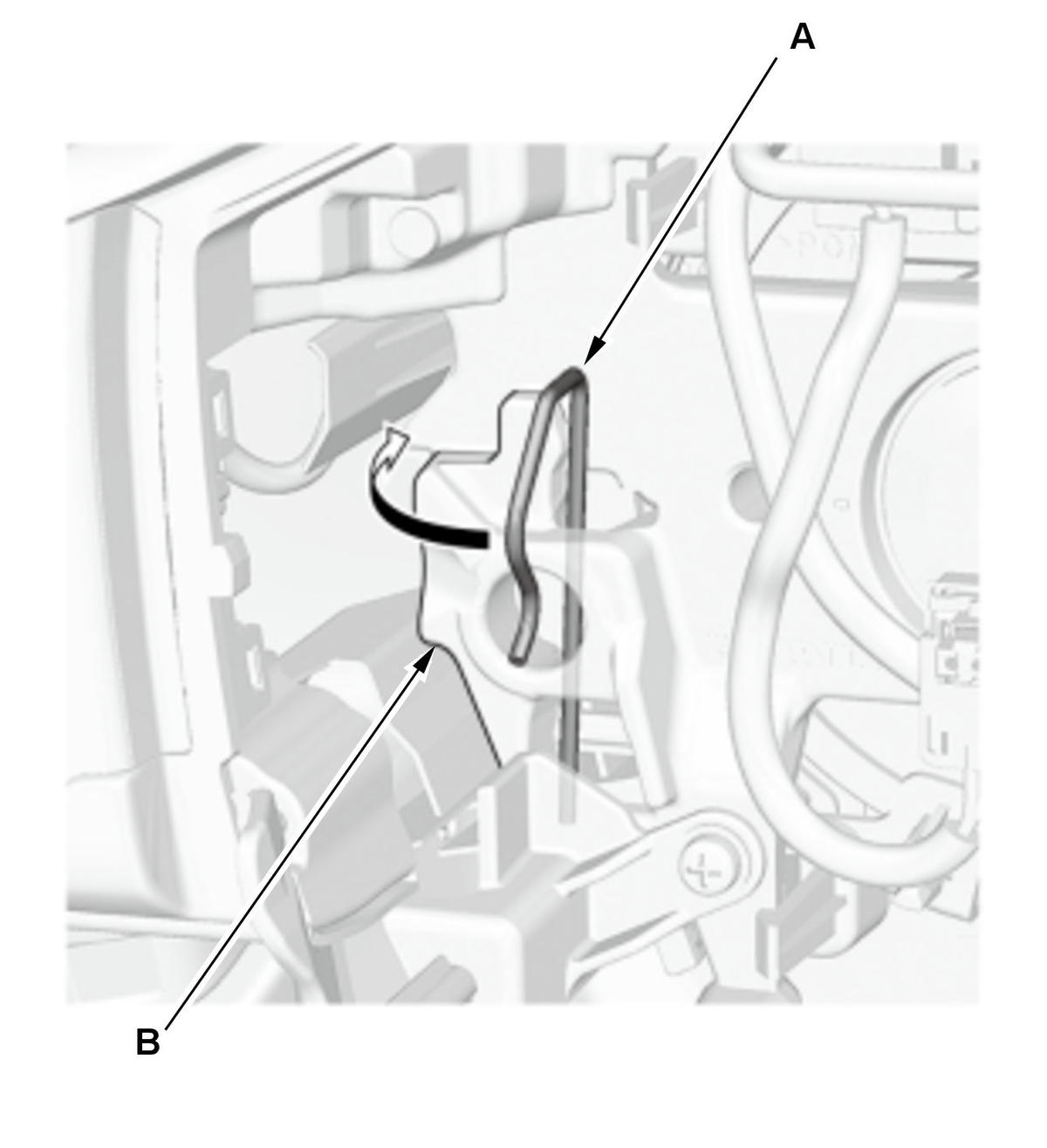

    		 1. Install the springs (A) to the steering wheel (B).
    NOTE:
    • The springs are different between the left and right side. Note the orientation during installation (single inflator type).
    • Make sure that the springs are installed properly.
  2. Driver's Airbag - Install

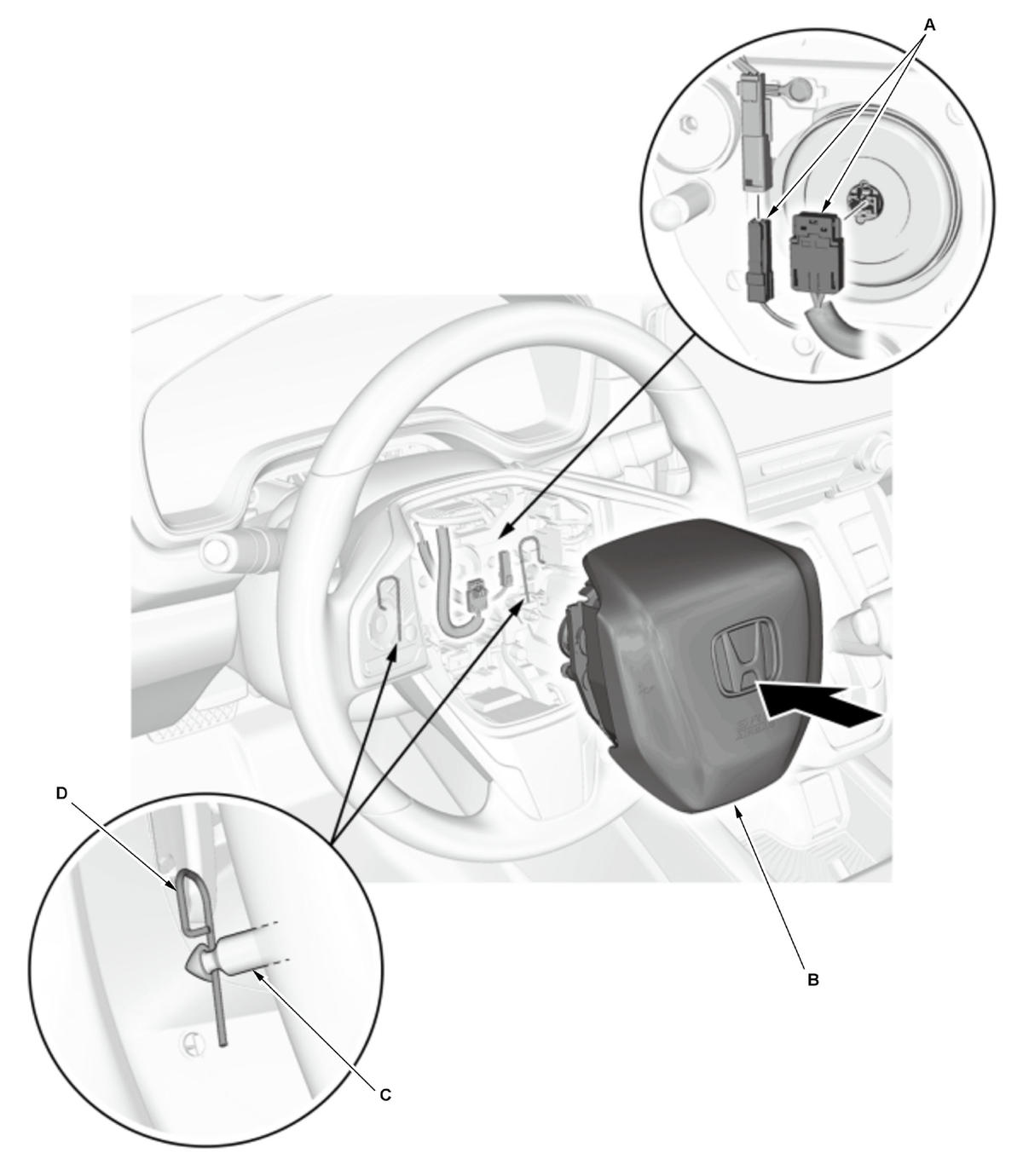

    1. Connect the connectors (A).

    Single Inflator Type

    GHH431281Courtesy of HONDA, U.S.A., INC.

    Dual Inflators Type

    GHH431282Courtesy of HONDA, U.S.A., INC.

    2. Install the driver's airbag (B) by pushing it in until you hear a click.

    NOTE:  Confirm that the front airbag pins (C) are securely mounted to the springs (D).

    GHH431283Courtesy of HONDA, U.S.A., INC.

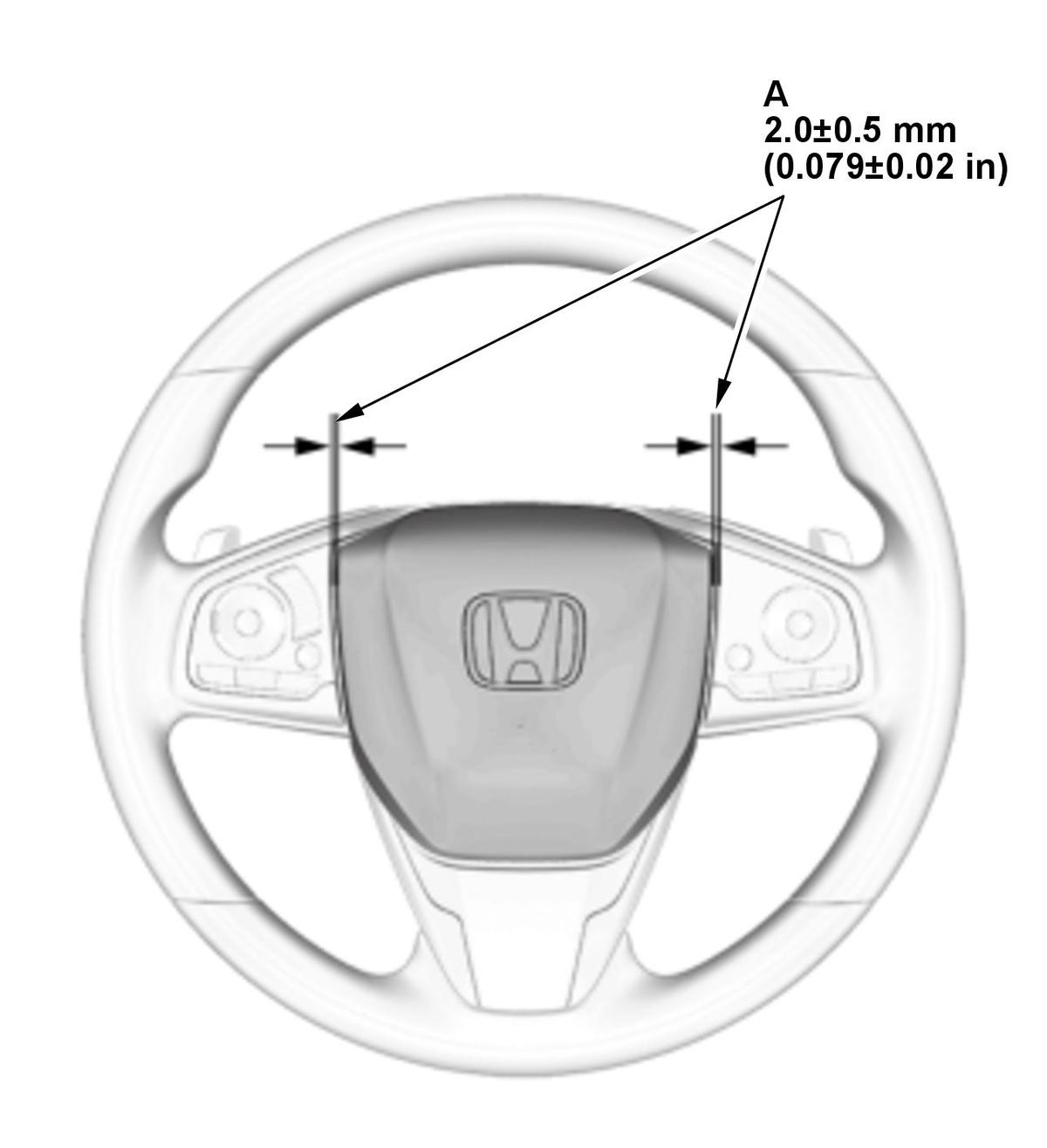

    		 3. Make sure the clearance (A) between the steering wheel and horn pad is the specified value.

    4. After connecting the negative cable to the 12 volt battery, make sure the horn works properly.
  3. SRS Operation - Confirm
    1. Do the 12 volt battery terminal reconnection procedure, turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.
