Lubricants and Fluids (Ecuador) (2019 2020 2021)
| Application |
Lubricant or Fluid |
| Engine |
Recommended Engine Oil: See chart. |
| CVT |
Always use genuine Honda HCF-2.
NOTE:
Using the wrong type of fluid will damage the transmission. |
| Rear differential (with AWD) |
Honda DPSF-II |
| Brake system (including VSA lines) |
Brake Fluid DOT 3 or DOT 4:We recommend genuine Honda Brake Fluid. Using a non-Honda brake fluid can cause corrosion and decrease the life of the system. |
| Cooling system |
We recommend Honda All Season Antifreeze/Coolant Type 2. |

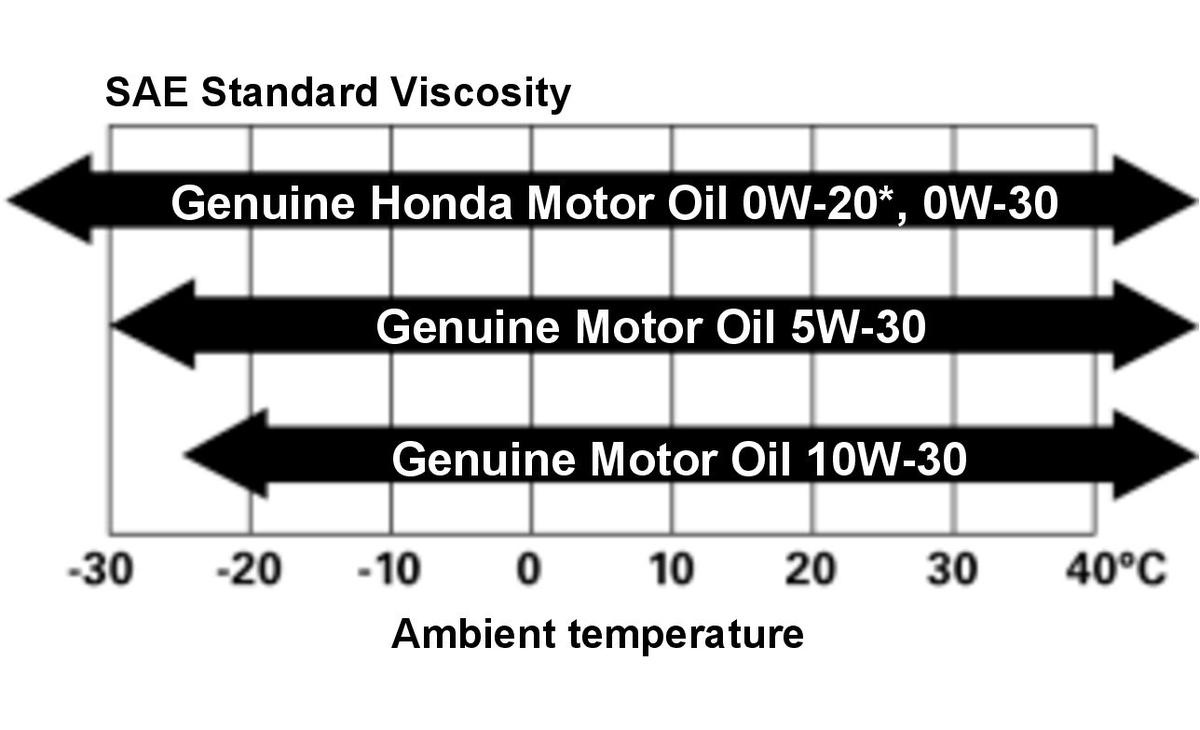

Recommended Engine Oil
- Engine oil viscosity for ambient temperature ranges.
- Using oils other than preferred viscosity may adversely affect consumption.
| Recommended Engine Oil |
Engine Oil Standard |
- Honda Genuine Motor Oil 0W-20*
- Honda Genuine Motor Oil, refer below(0W-20, 0W-30, 5W-30, 10W-30)
*: "Honda Genuine Motor Oil" is formulated to improve fuel economy. Consult your dealer for detail. |
- API SM or higher grade
- ACEA A5/B5

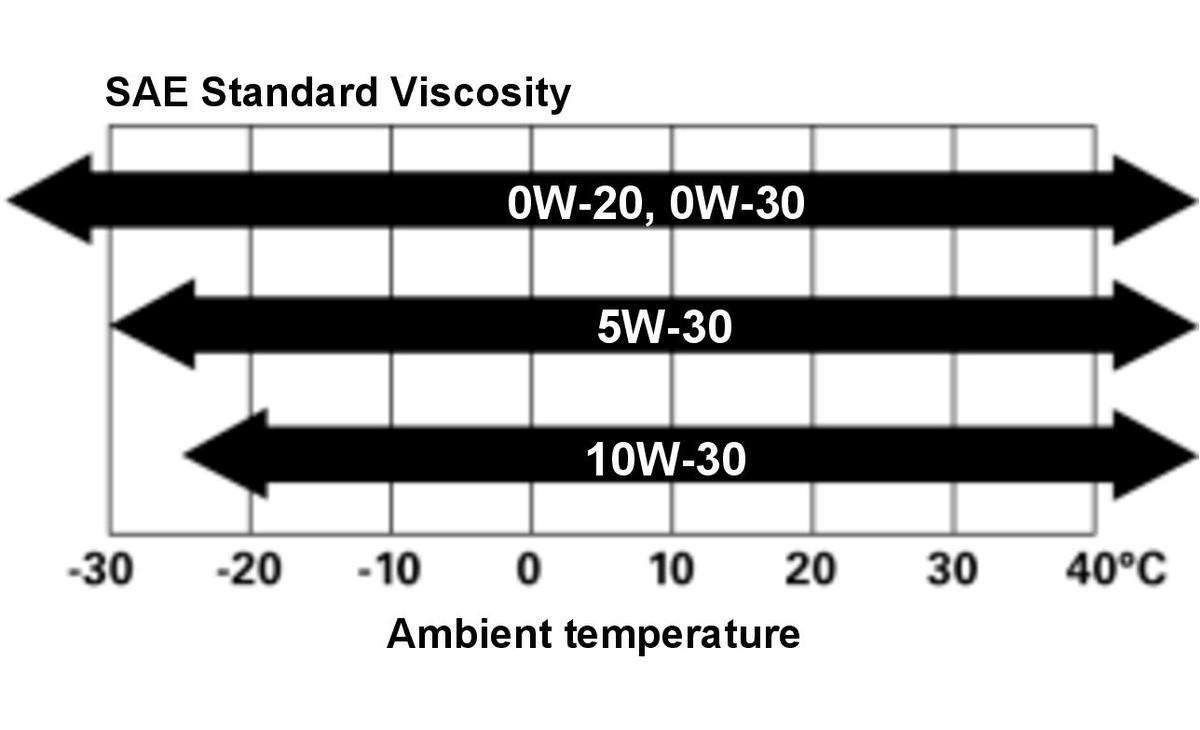

- If "Honda Genuine Motor Oil" is not available, use 0W-20, 0W-30, 5W-30, 10W-30.
|
| |
 Courtesy of HONDA, U.S.A., INC.
|
|
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|

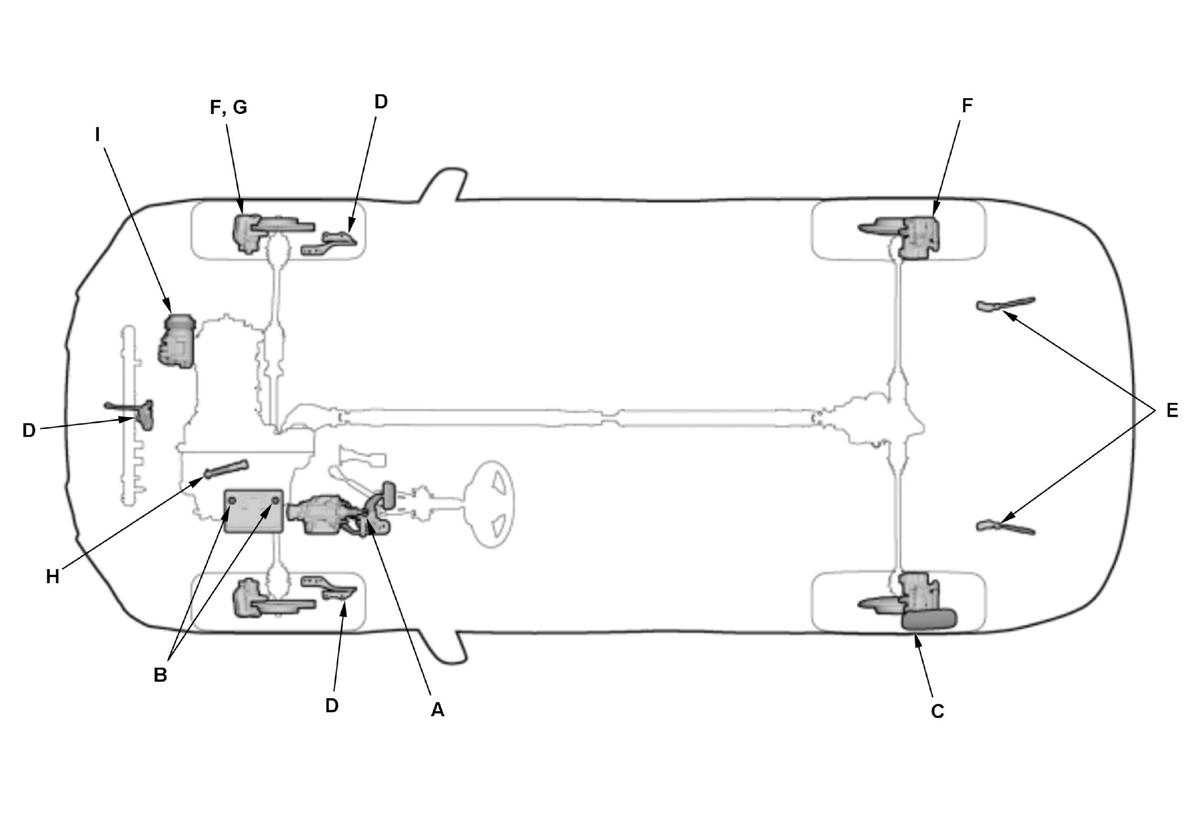

For the details of the lubrication points and the type of lubricants to be applied, refer to the illustrated index and the various work procedures (such as Assembly/Reassembly, Replacement, Overhaul, Installation, etc.) contained in each section.
| Application |
Lubricant or Fluid |
| A |
Brake pedal yoke pin |
Multipurpose grease |
| B |
12 volt battery terminals |
| C |
Fuel fill door |
| D |
Hood hinges and hood latch |
| E |
Tailgate hinges |
| F |
Caliper pins, caliper pin boots, front caliper piston seals, front caliper piston boots |
Service set grease |
| G |
Front caliper piston |
Honda DOT 3 or DOT 4 brake fluid |
| H |
Shift cable end |
Molybdenum grease |
| I |
Air conditioning compressor |
Compressor Oil: DENSO ND-OIL 14 (P/N 38899-50Z-G01) for refrigerant HFO-1234yf (R-1234yf) |
NOTE:
- Lubricate the following areas using the recommended lubricants and fluids.
- In corrosive areas, more frequent lubrication is necessary.
|
