Removal and Installation: 2

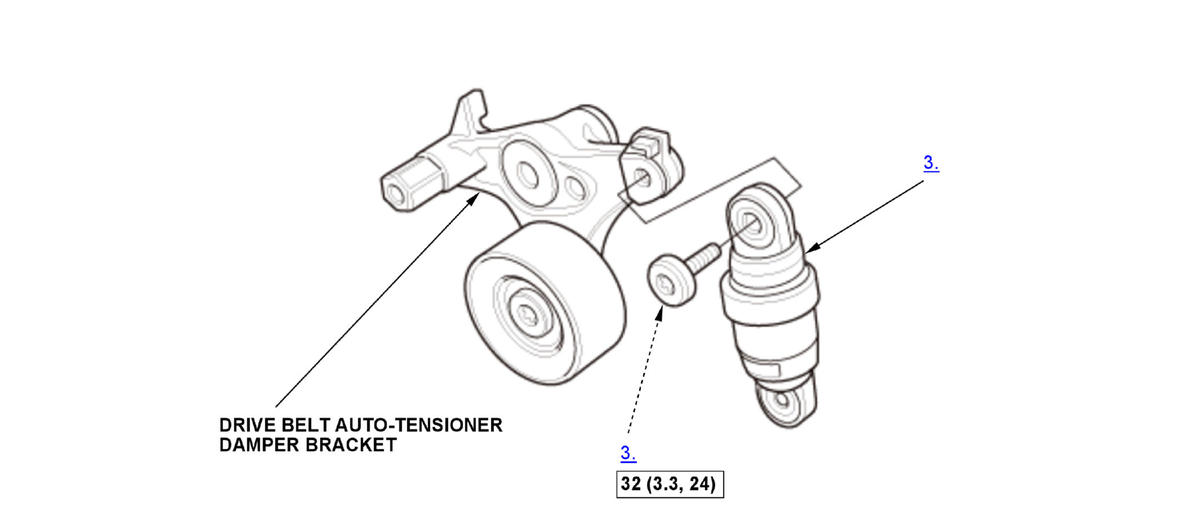

GHH428678Courtesy of HONDA, U.S.A., INC.
Torque: N.m (kgf.m, lbf.ft)
  1. Drive Belt - Remove
  2. Drive Belt Auto-Tensioner - Remove
  3. Drive Belt Auto-Tensioner Damper - Remove
  4. All Removed Parts - Install
    1. Install the parts in the reverse order of removal..
    NOTE: Do the drive belt auto-tensioner air bleeding
