Drive Belt Auto-Tensioner Removal, Installation, and Inspection (1.5 L Engine): Inspection

Drive Belt Auto-Tensioner - Position Check

Courtesy of HONDA, U.S.A., INC.

1. Turn the vehicle to the ON mode, and make sure to turn the A/C switch OFF, then turn the vehicle to the OFF (LOCK) mode.

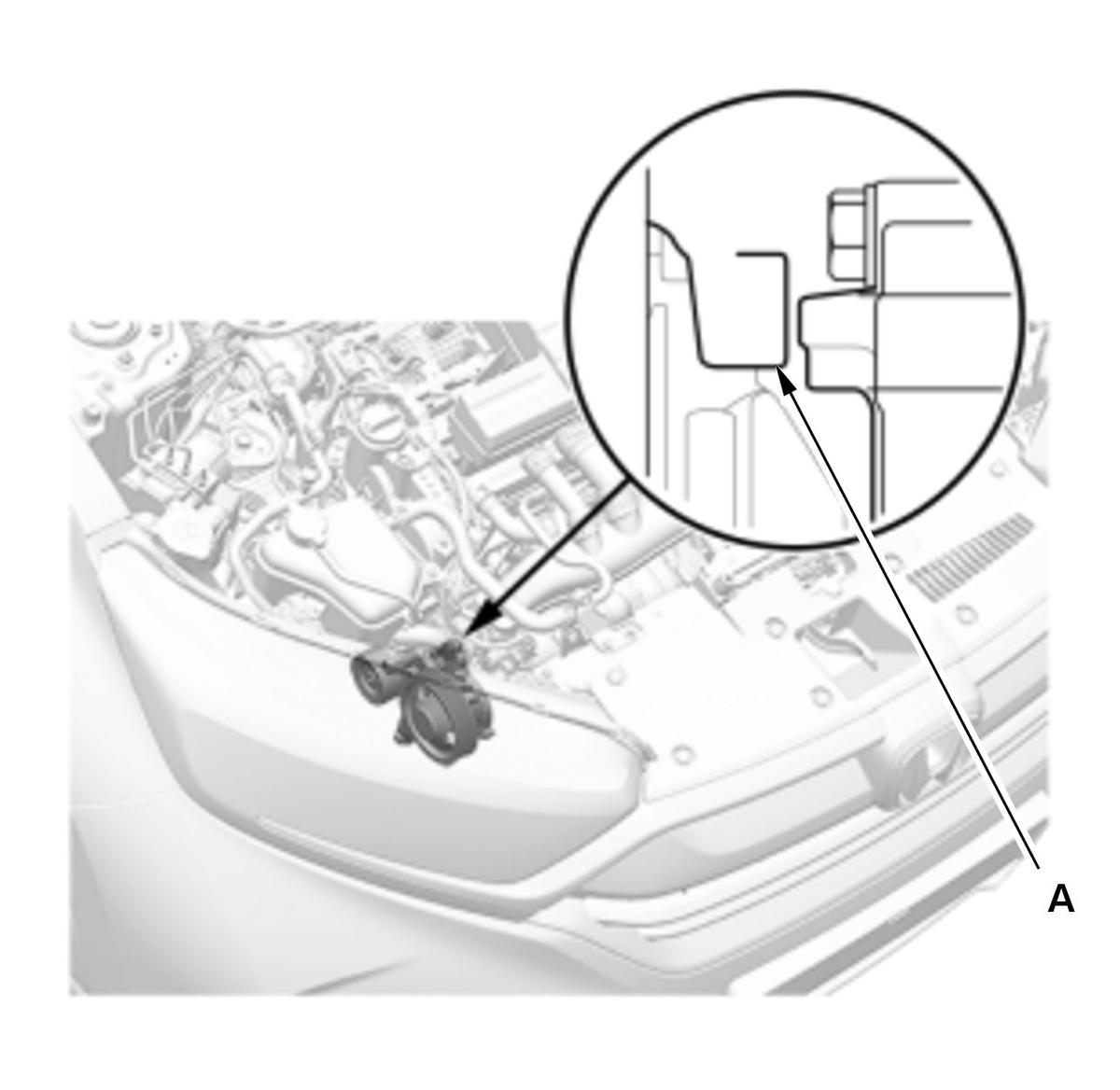

2. Check the position of the drive belt auto-tensioner indicator pointer (A).

3. Start the engine, then check the position again with the engine idling. If the position of the indicator moves or fluctuates a lot, replace the drive belt auto-tensioner.

4. Check for abnormal noise from the tensioner pulley. If you hear any abnormal noise, replace the drive belt auto-tensioner.

Drive Belt - Remove
NOTE: After the drive belt is removed, remove the pin from the drive belt auto-tensioner.

Drive Belt Auto-Tensioner - Inspect

Courtesy of HONDA, U.S.A., INC.

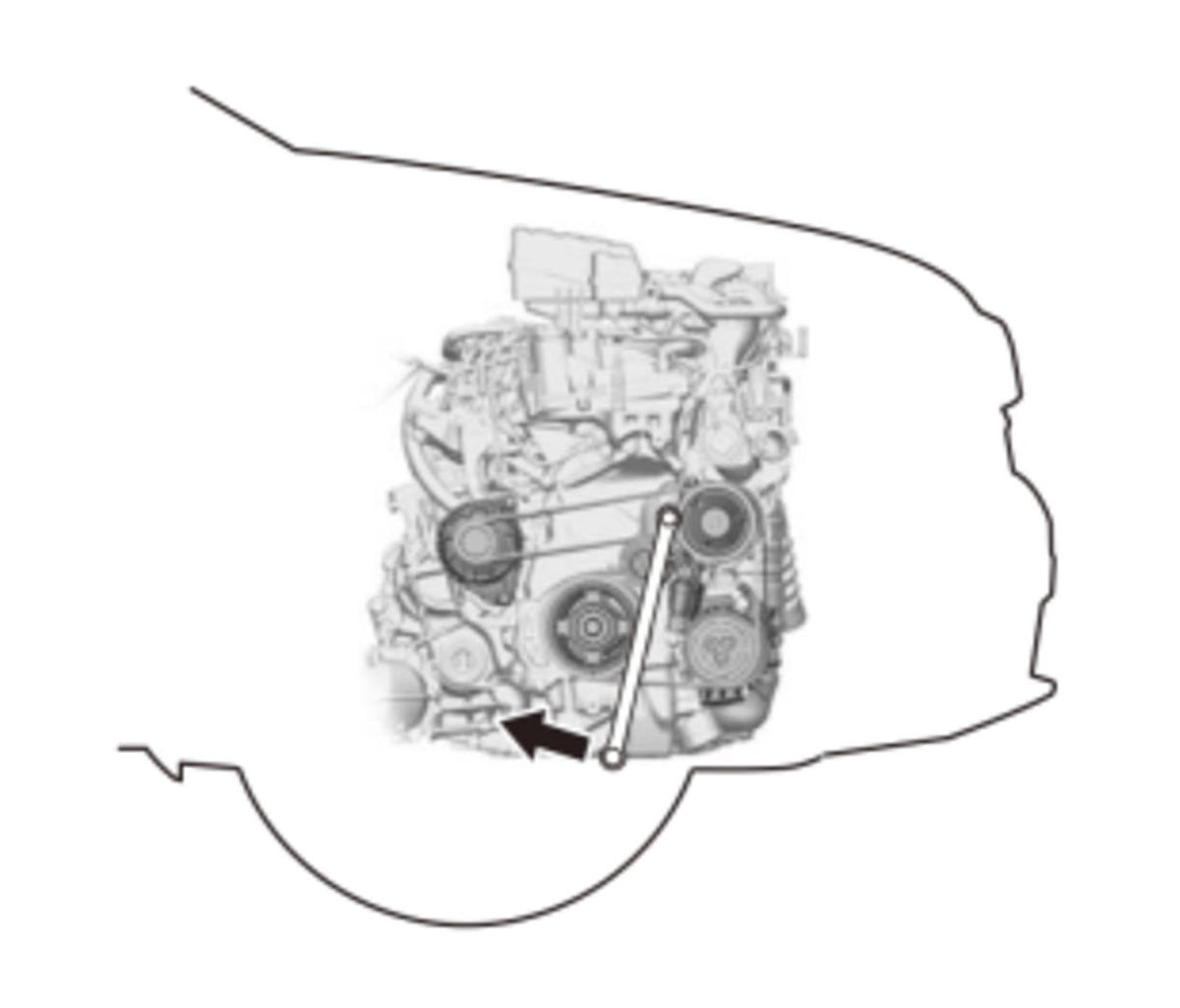

1. Set a wrench on the drive belt auto-tensioner, and slowly turn the wrench in the direction of the arrow.

NOTE:

This is a hydraulic type auto-tensioner, so you must turn the wrench slowly for at least 3 seconds.
Check the belt for cracks or damage.
Check for oil leakage from the damper rubber bellows.
If the tensioner does not move smoothly, or you hear abnormal noise, replace the drive belt auto-tensioner.

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
