Rear Window Defogger Component Location Index

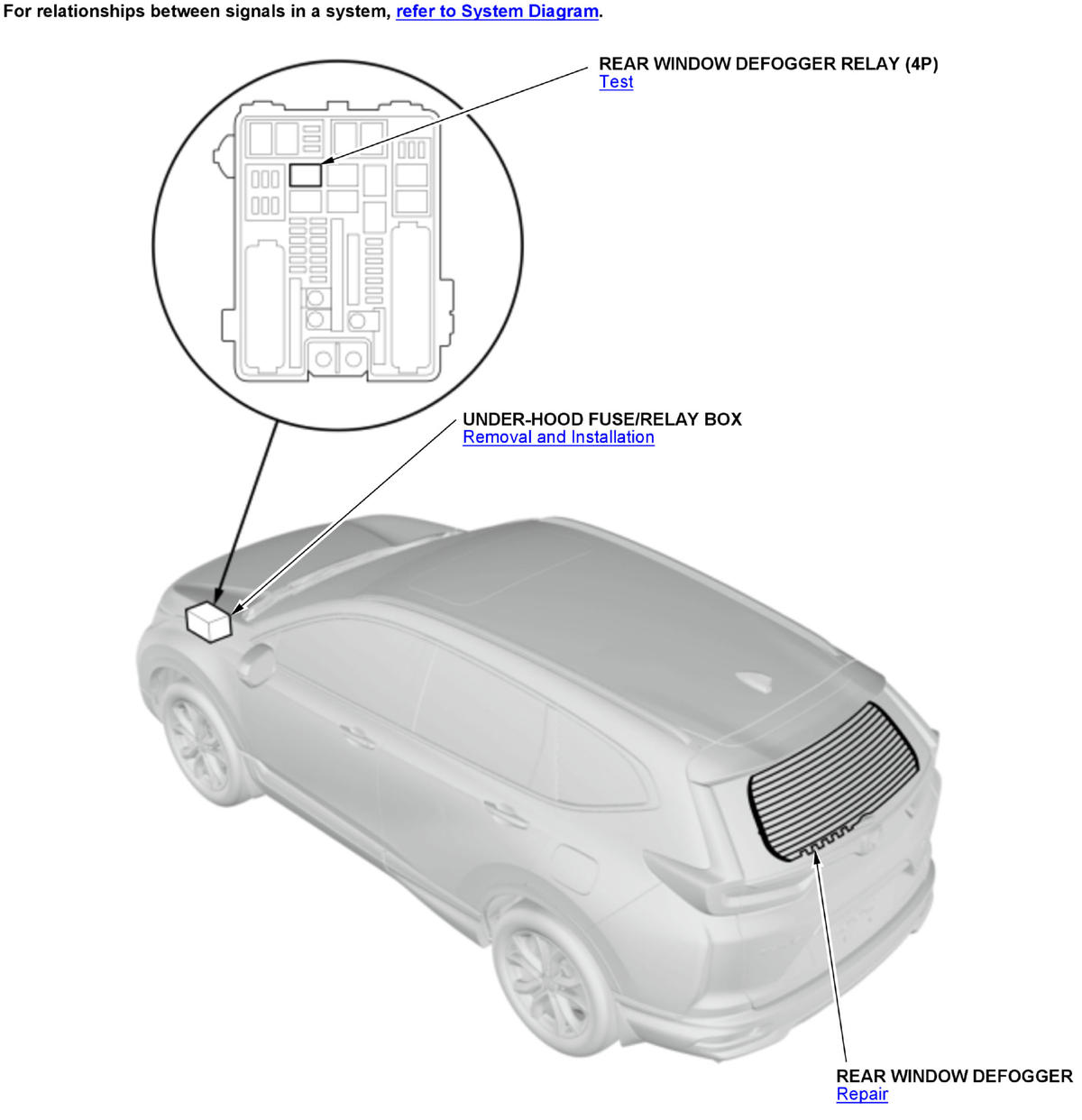

GHH428595

Courtesy of HONDA, U.S.A., INC.

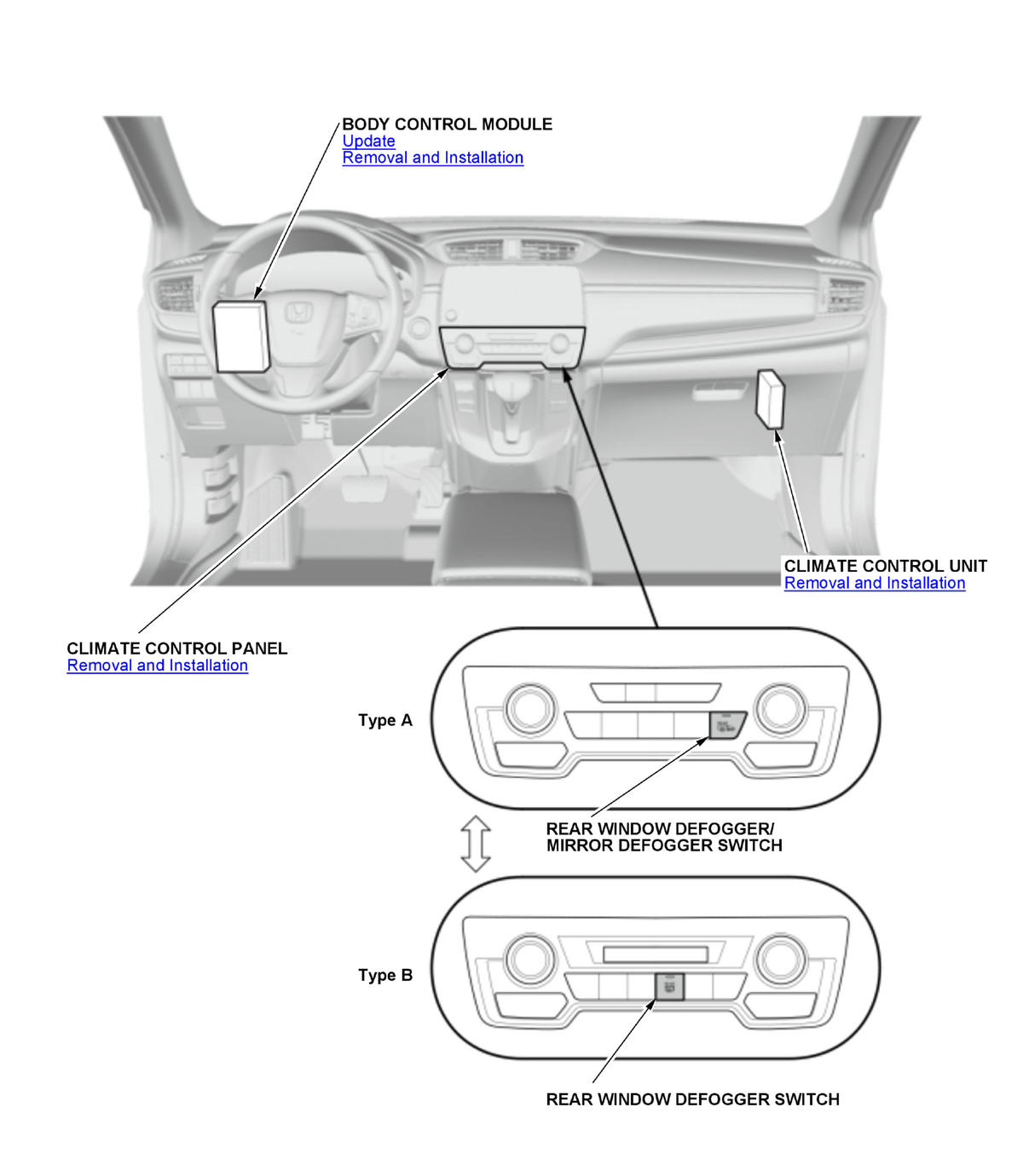

GHH428596

Courtesy of HONDA, U.S.A., INC.
