Honda
>>
2021
>>
CR-V EX-L, AWD
>>
Repair and Diagnosis
>>
Heating, Ventilation & A/C (HVAC)
>>
HVAC Control Systems
>>
HVAC System - Testing & Troubleshooting (Except Hybrid)
>>
Circuit Diagram
>>

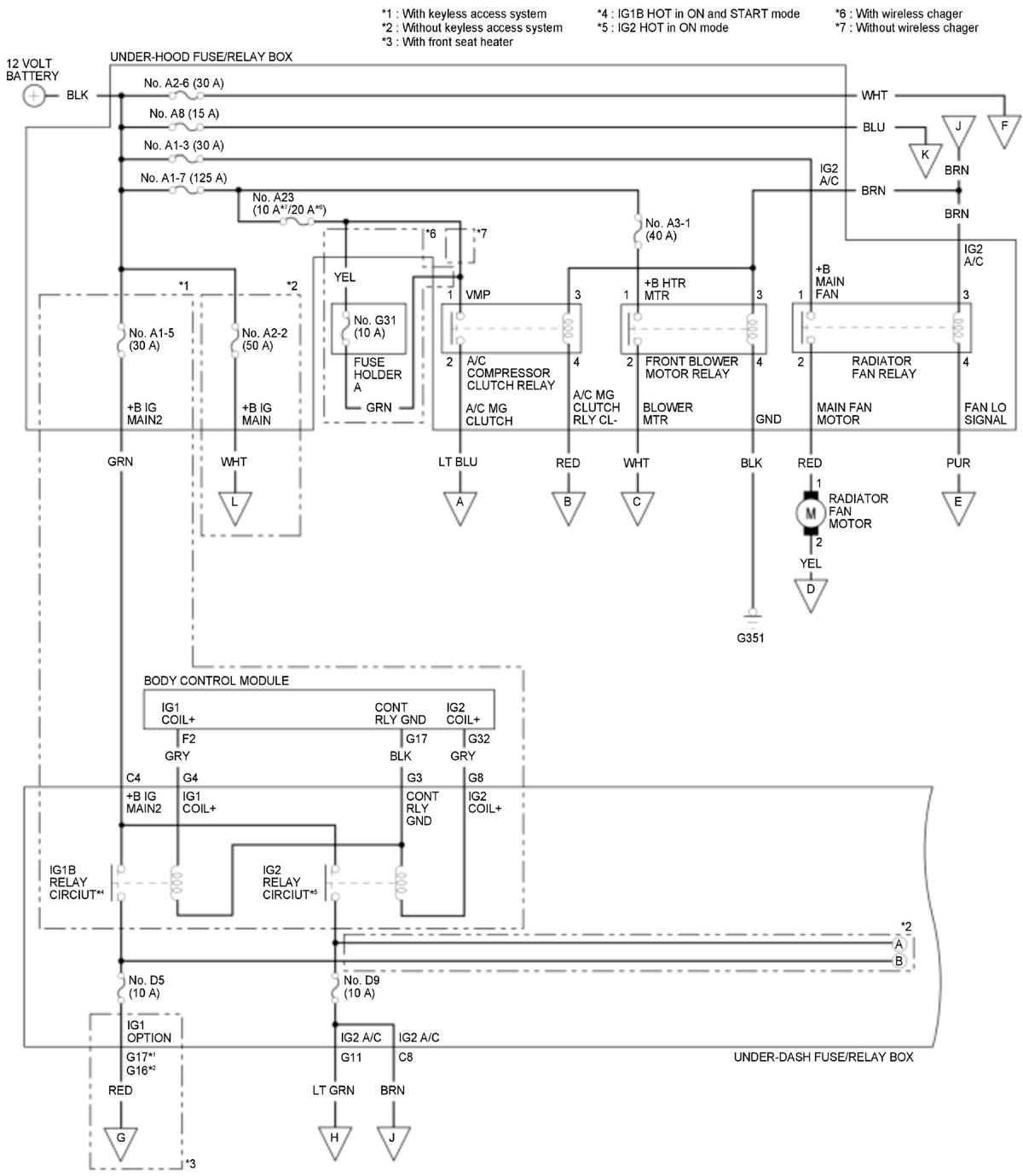

Climate Control System Circuit Diagram (2020 2021)

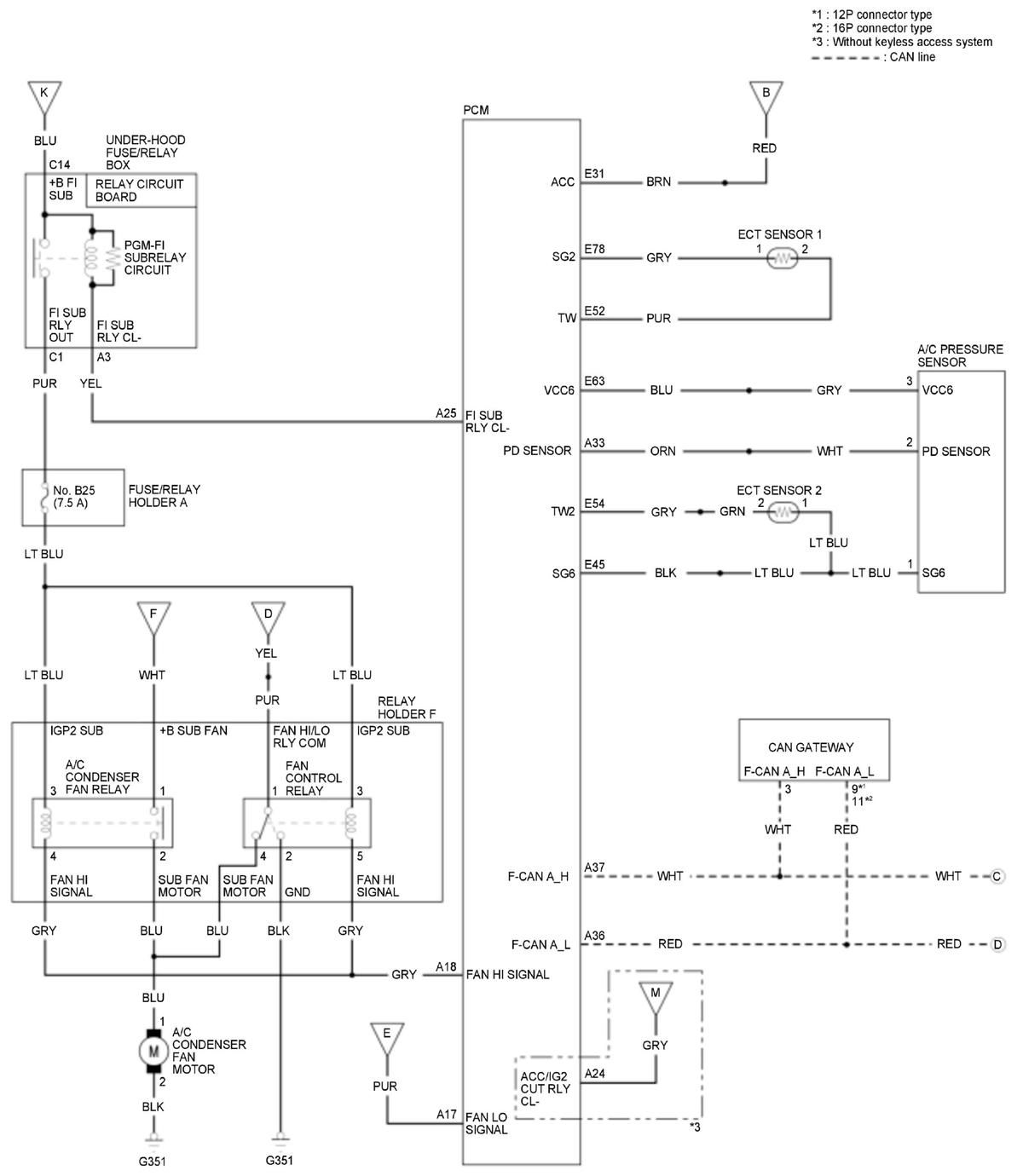

Climate Control System Circuit Diagram (2020 2021)

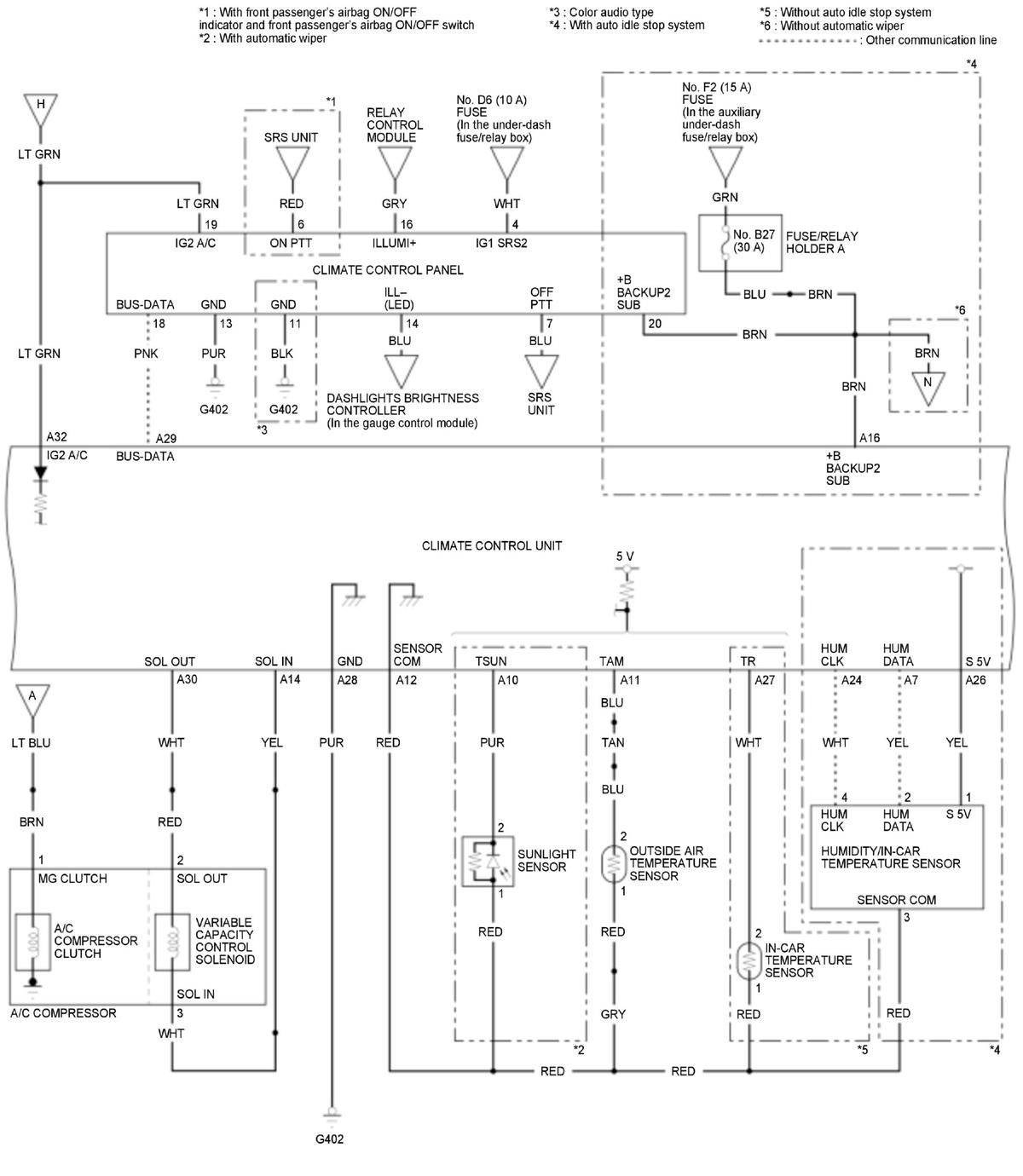

Courtesy of HONDA, U.S.A., INC.

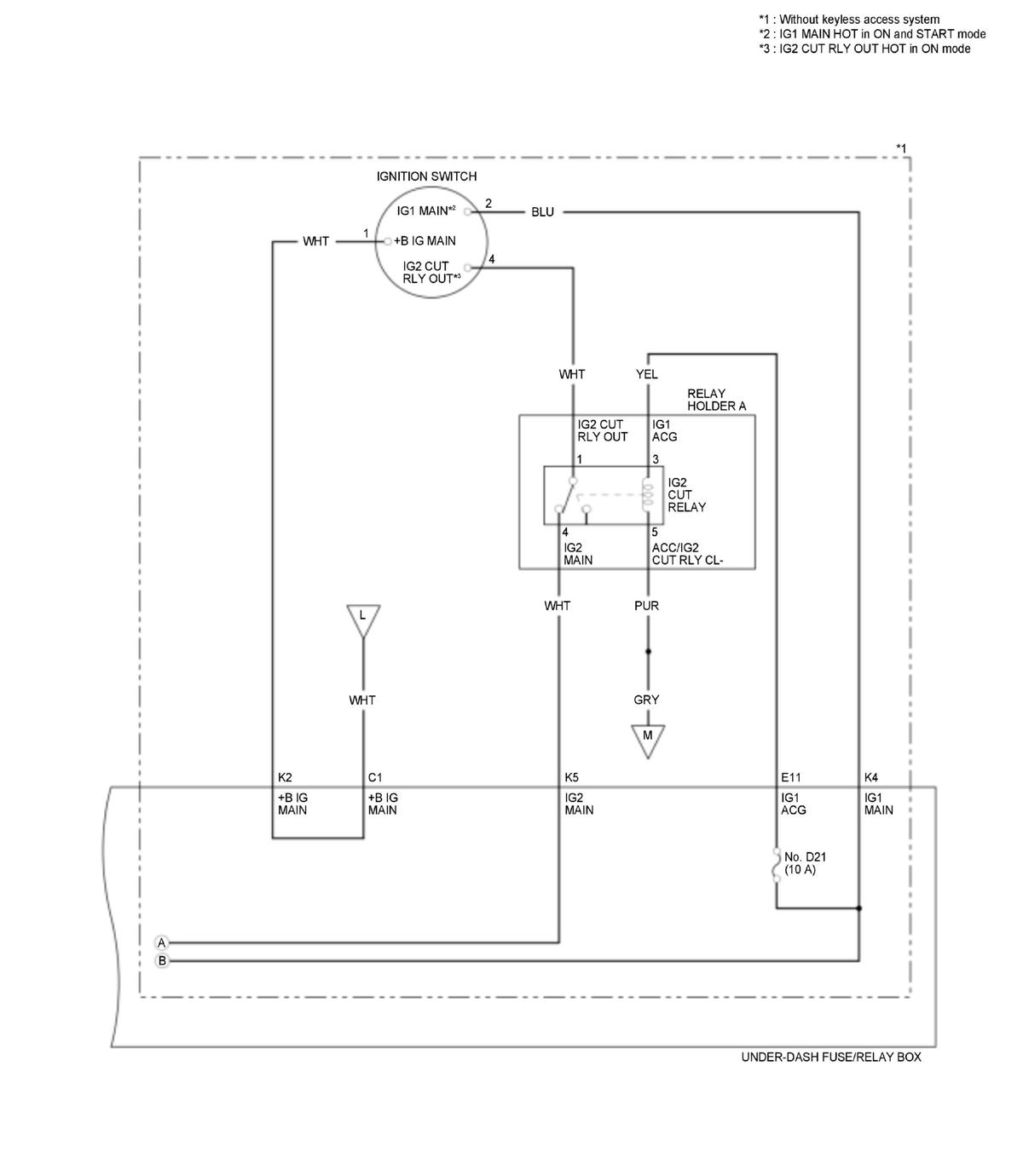

Courtesy of HONDA, U.S.A., INC.

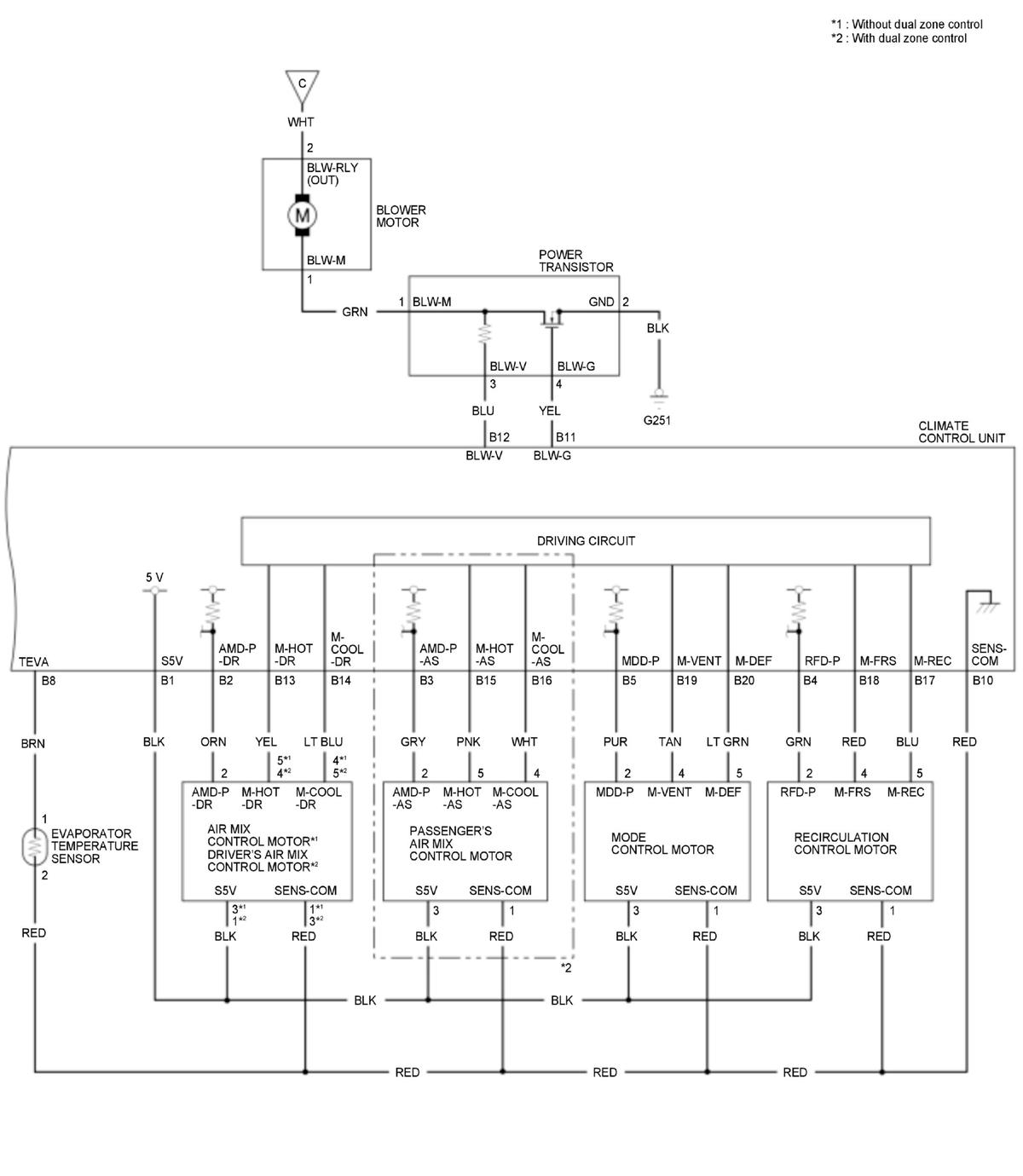

Courtesy of HONDA, U.S.A., INC.

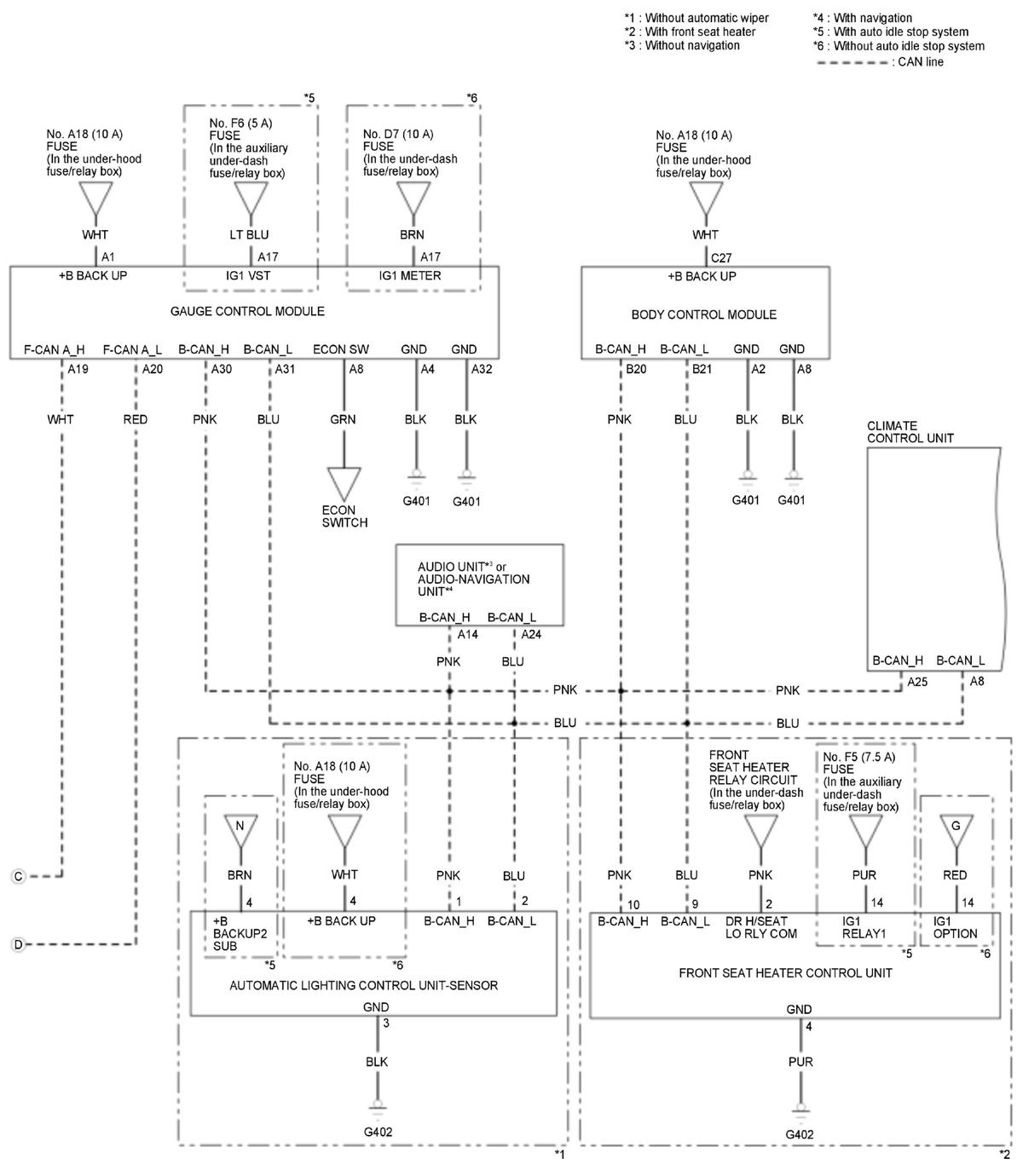

Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
