CR-V EX-L, AWD
>>
Repair and Diagnosis
>>
Heating, Ventilation & A/C (HVAC)
>>
HVAC Control Systems
>>
HVAC System - Testing & Troubleshooting (Except Hybrid)
>>
Circuit Diagram
>>

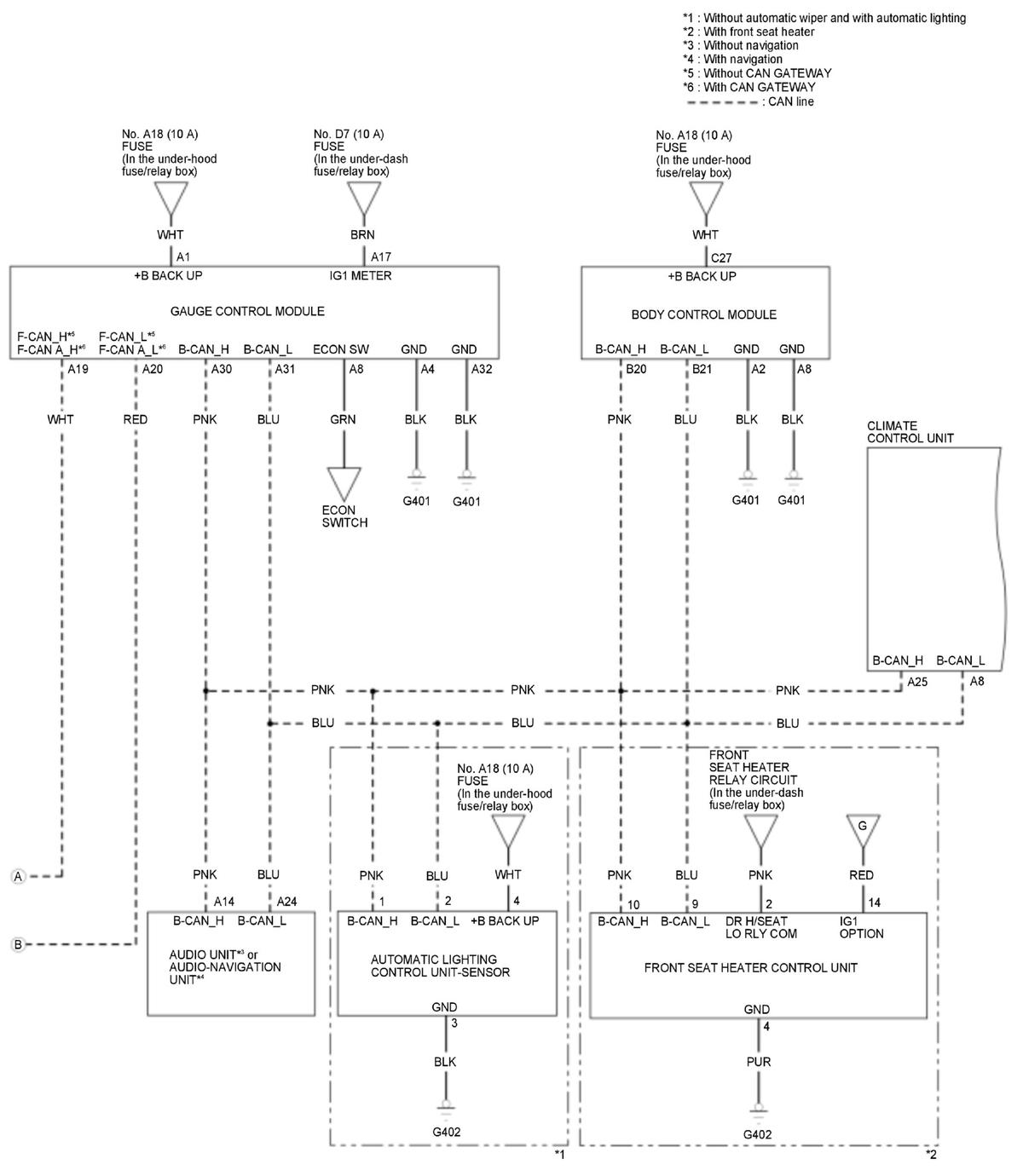

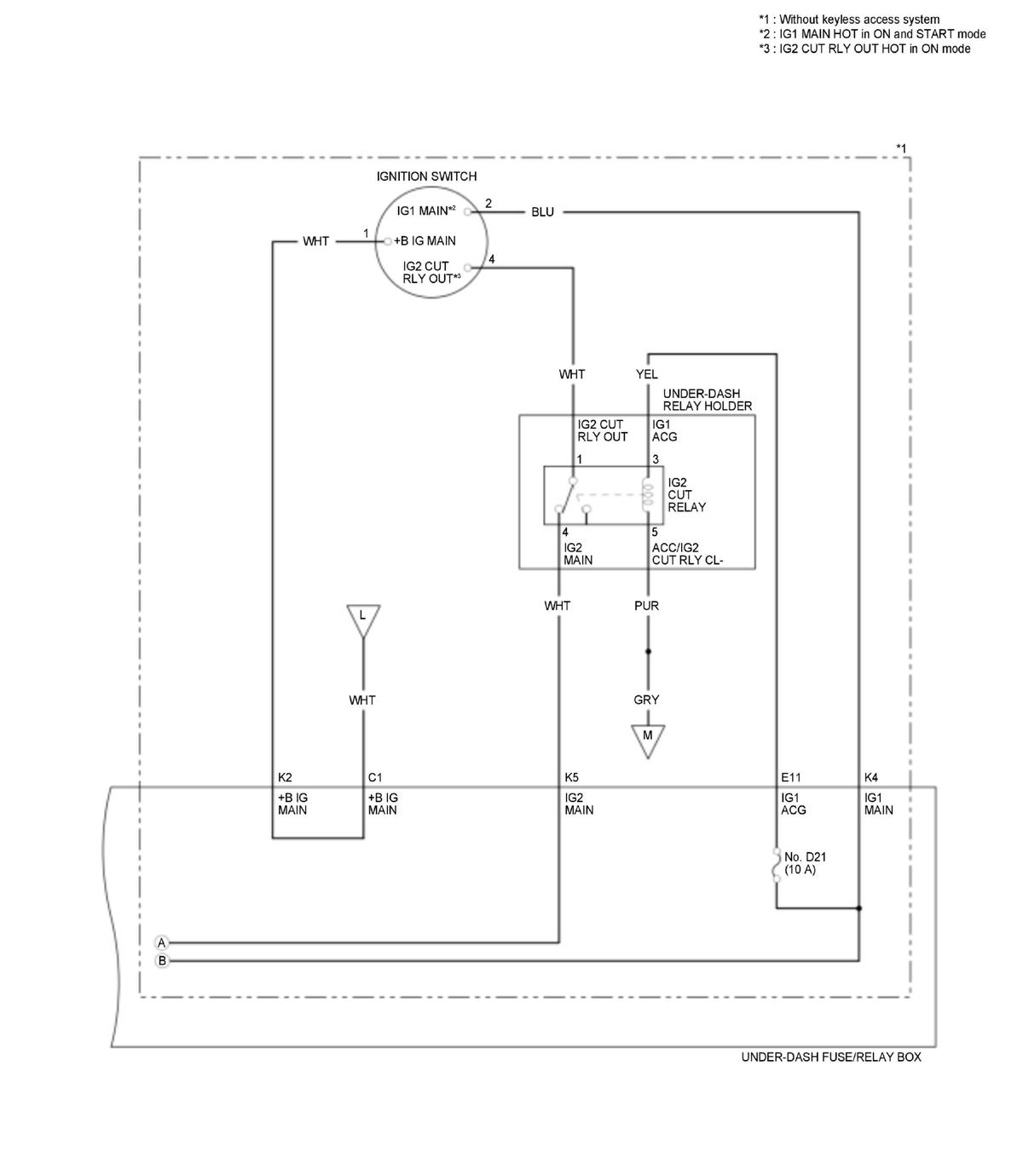

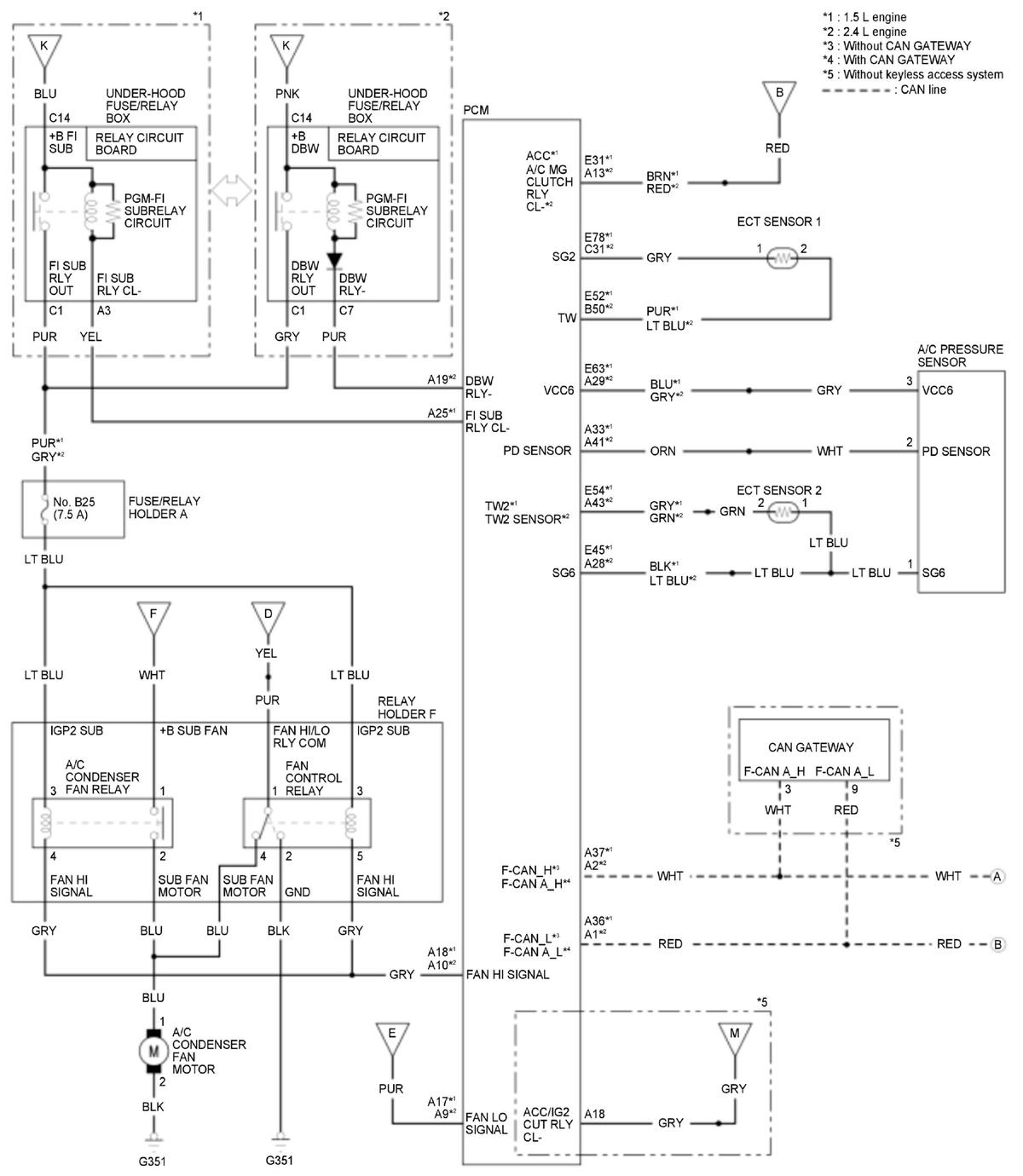

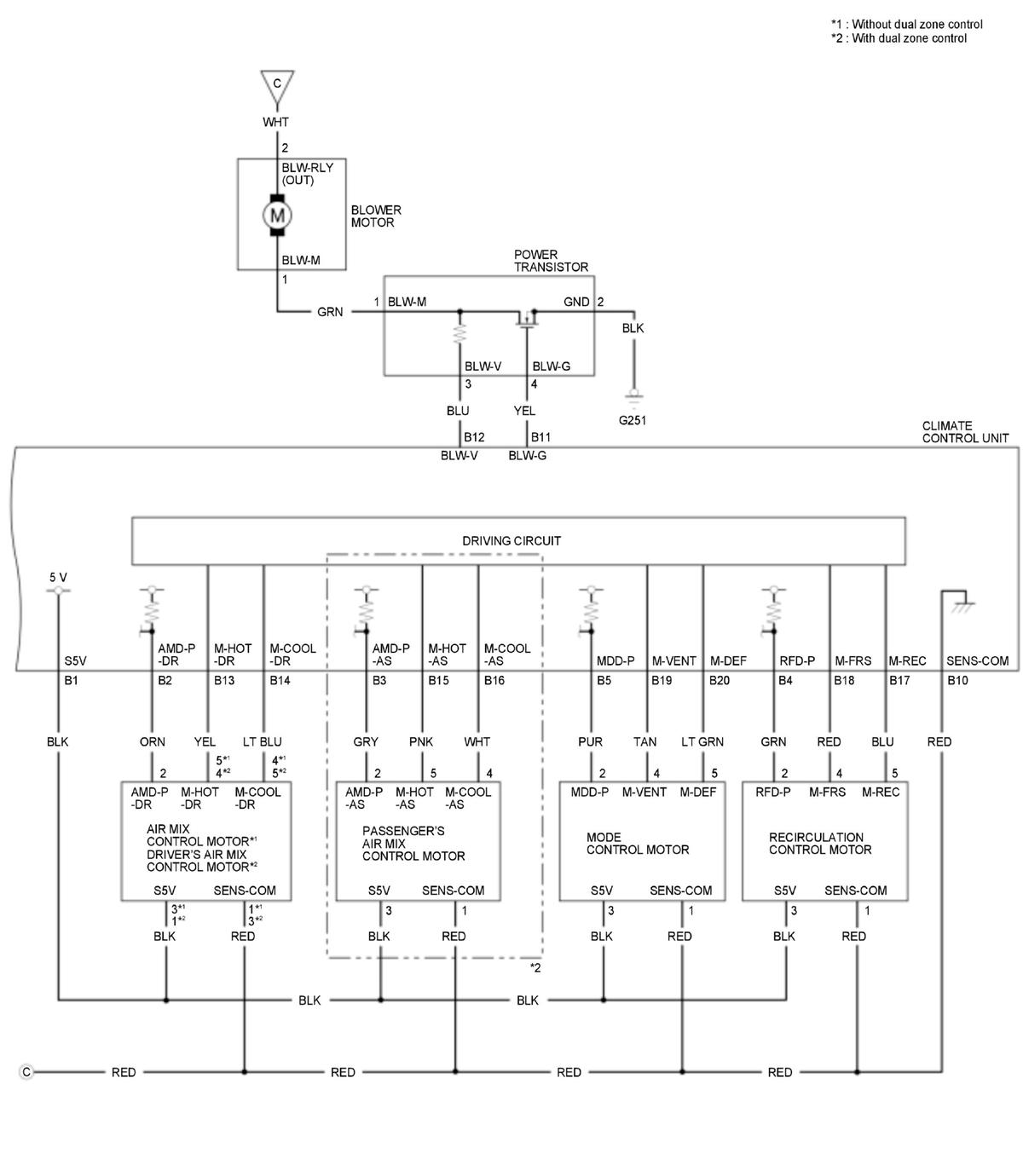

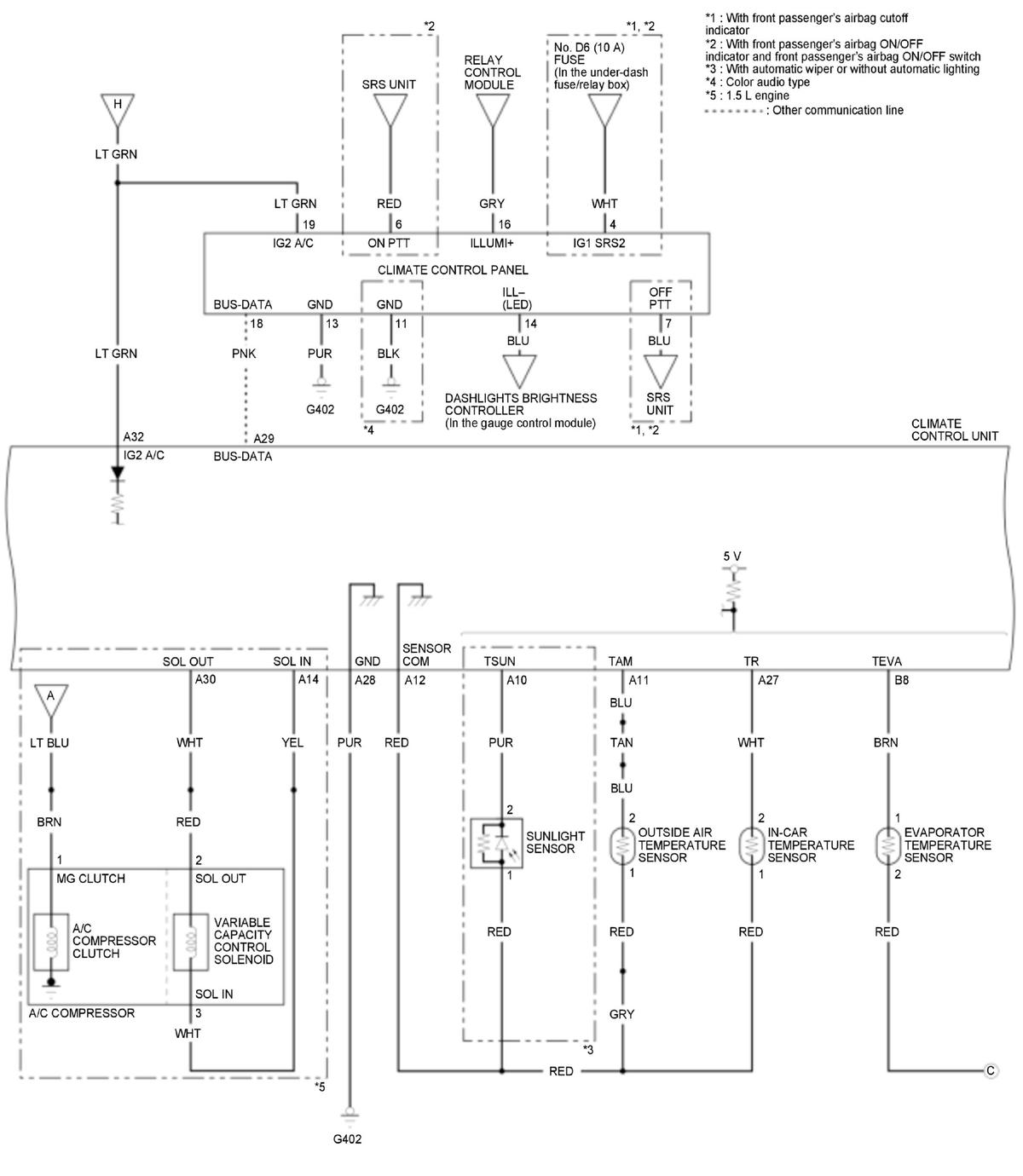

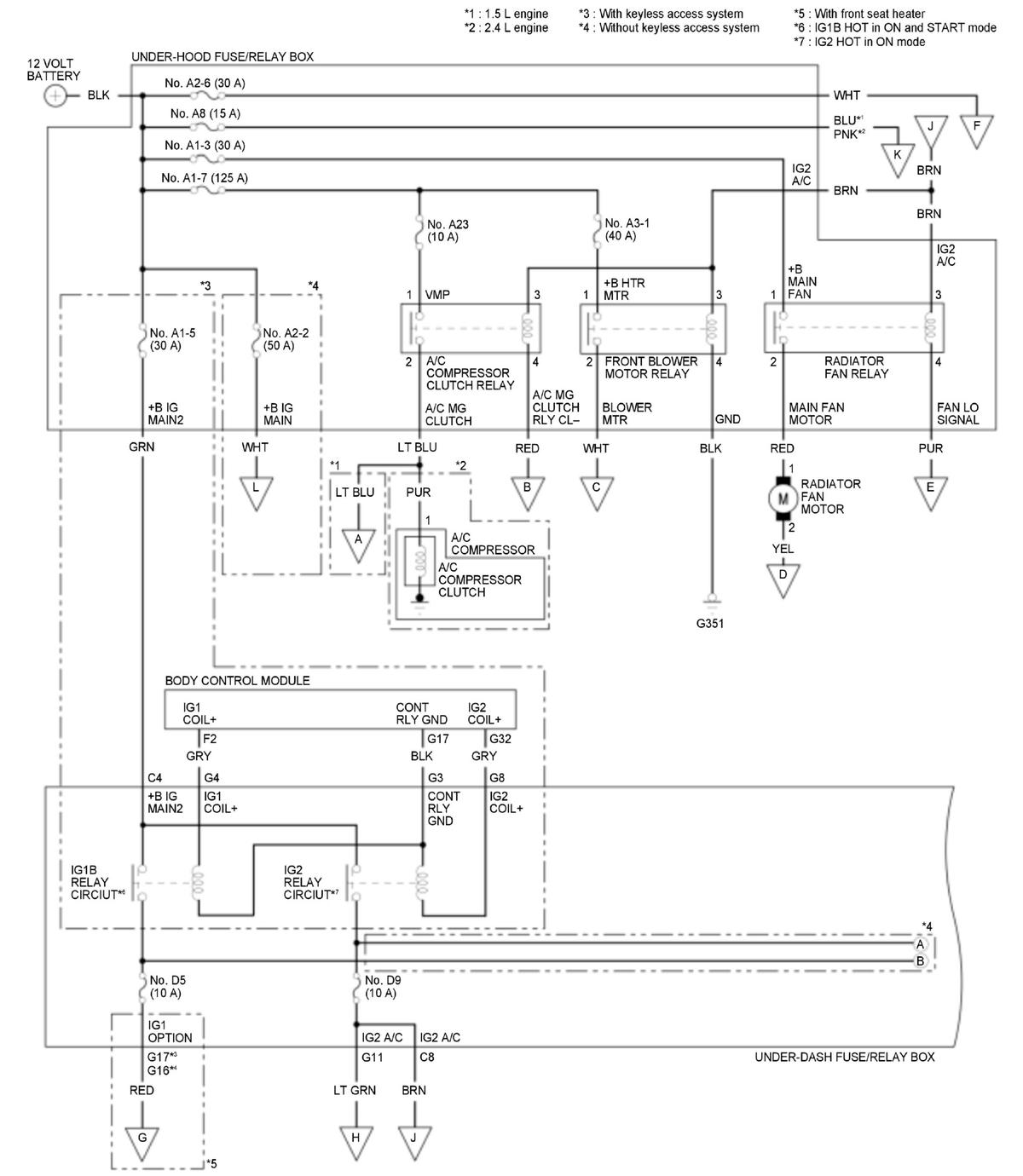

Climate Control System Circuit Diagram (2017 2018 2019)
Climate Control System Circuit Diagram (2017 2018 2019)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
