Sunlight Sensor Removal, Installation, and Test: Test

NOTE:

Before testing the sensor, check for climate control DTCs .
The sunlight sensor with automatic lighting cannot be test. If no DTC indicated, the sunlight sensor is OK.

Sunlight Sensor - Test

Courtesy of HONDA, U.S.A., INC.

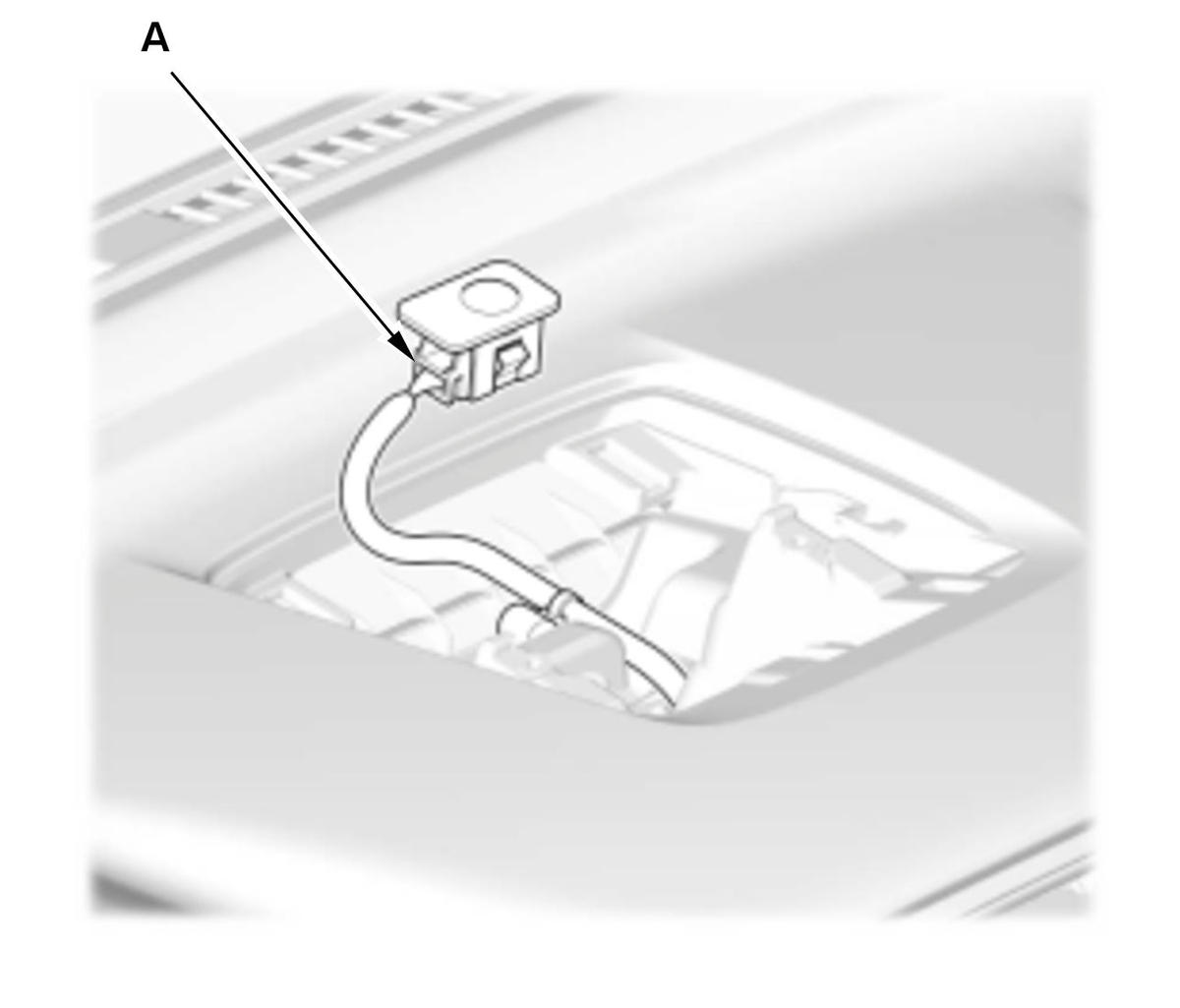

1. Connect the sunlight sensor connector (A).

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

2. Turn the vehicle to the ON mode.

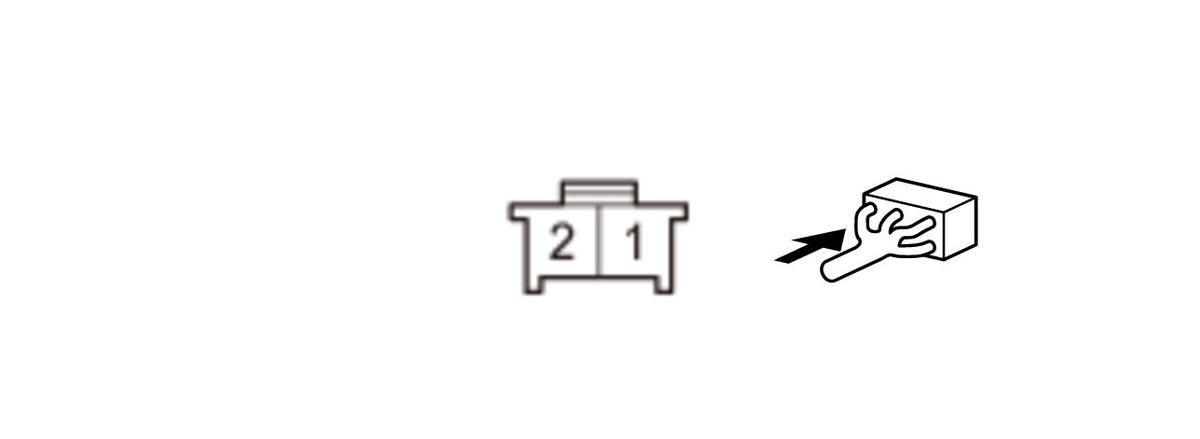

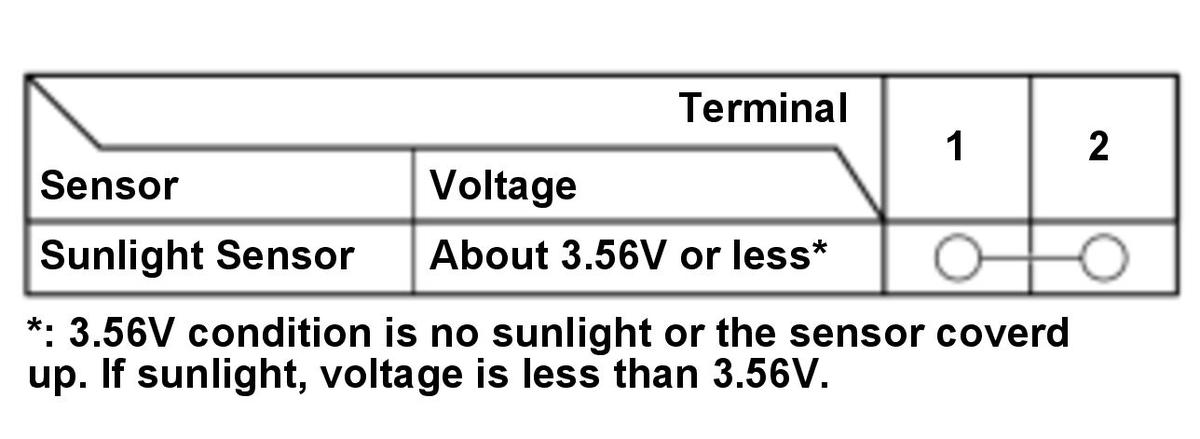

3. Measure the voltage between terminals according to the table.

NOTE:

The voltage readings will not change under the light of a flashlight or a fluorescent lamp.

4. If the voltage is not as specified, replace the sunlight sensor.
