Exploded View

NOTE:  If any seal, insulator, or other part is damaged, replace it with a new one.

  1. HVAC Unit

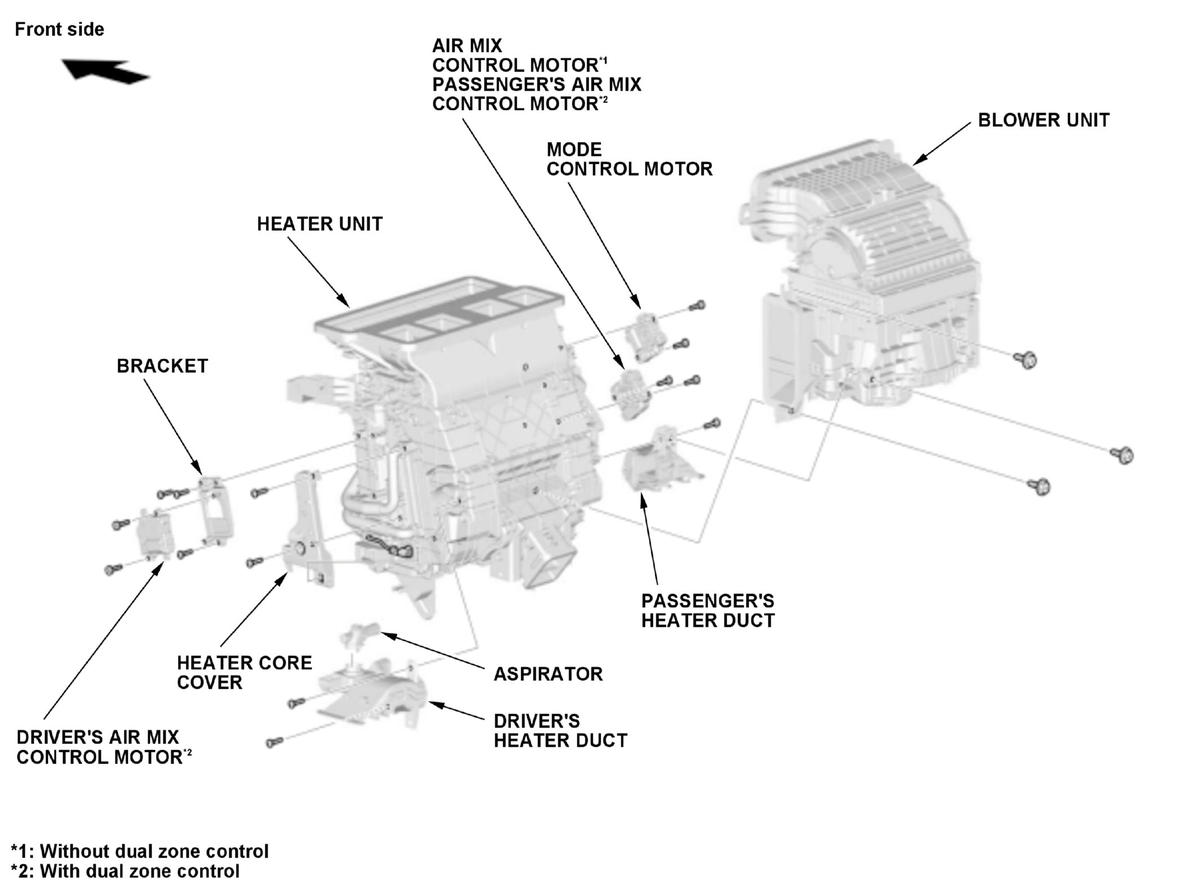

    GHH428866Courtesy of HONDA, U.S.A., INC.

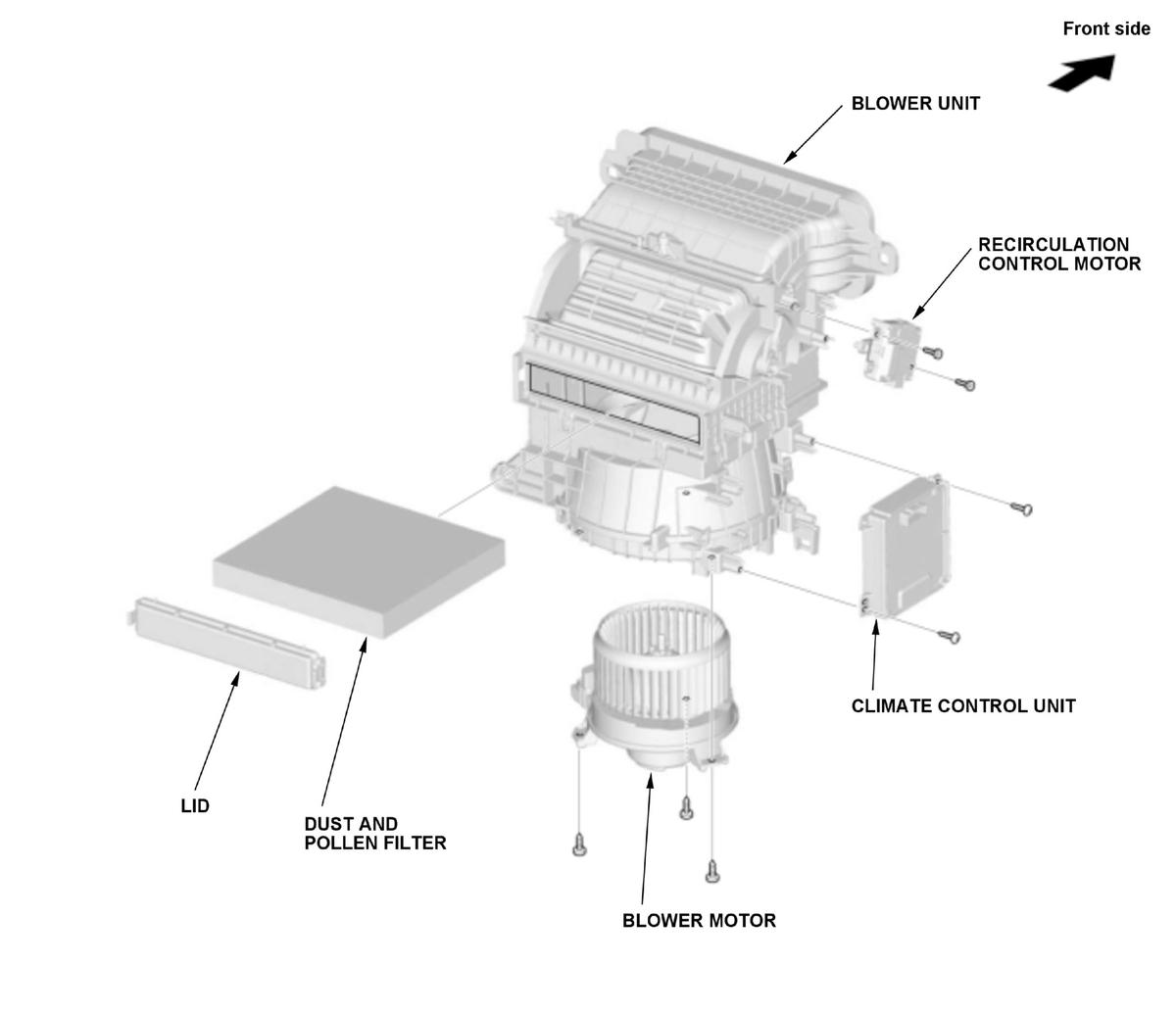

    GHH428867Courtesy of HONDA, U.S.A., INC.

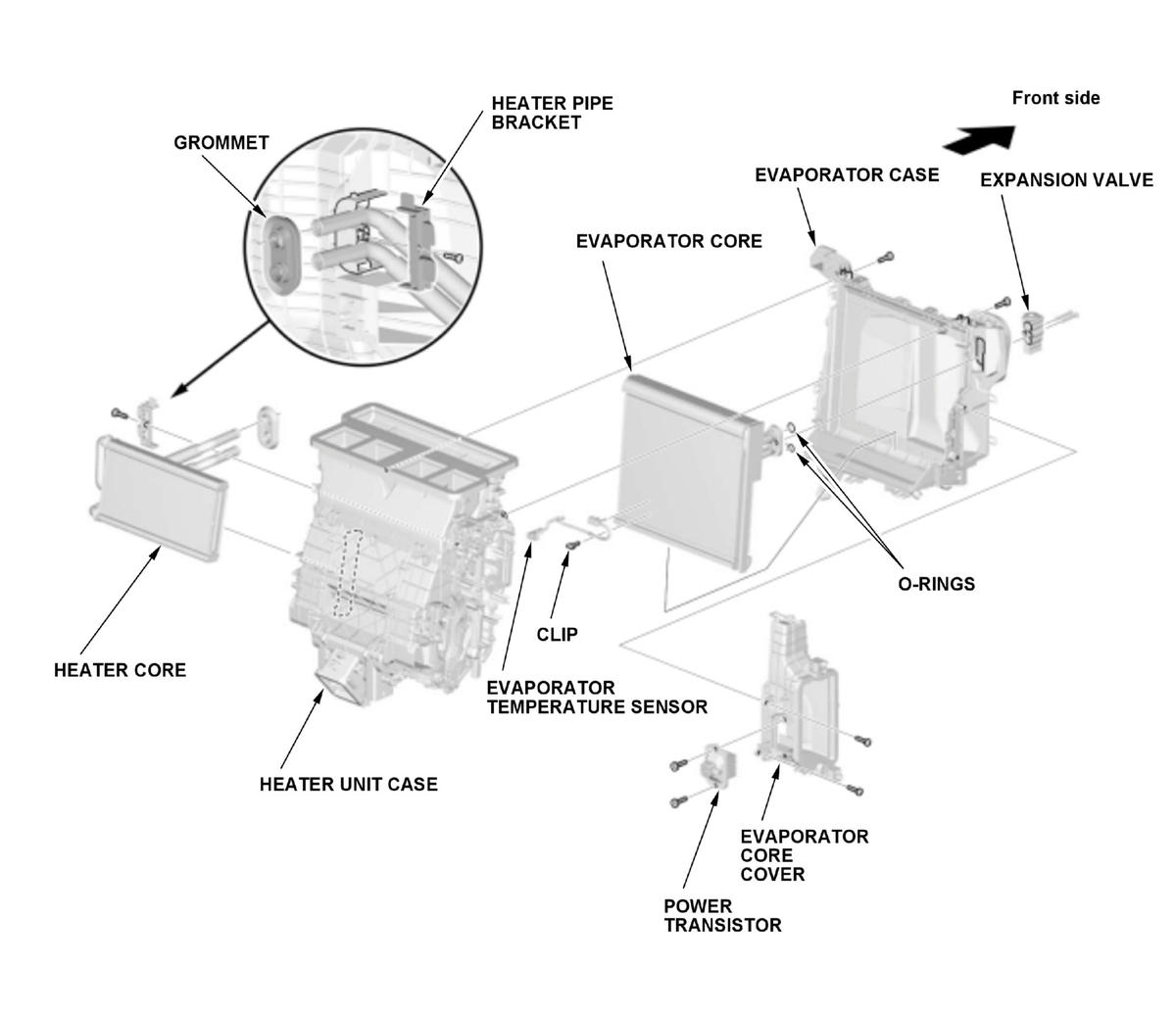

    GHH428868Courtesy of HONDA, U.S.A., INC.
