DTC Troubleshooting: B1232 (A-A6), B1232 (0A)

DTC B1232 or DTC screen A-A6 or DTC indicator 0A  : A short in the evaporator temperature sensor circuit

DTCs (AC)

1. Problem verification

   -1. Clear the DTC with the HDS.

   -2. Turn the vehicle to the OFF (LOCK) mode and then the ON mode.

   -3. Do the Self-Diagnostic Function with the HDS or the climate control unit .

   -4. Check for DTCs.

   DTC Description	DTC
   B1232 A short in the evaporator temperature sensor circuit

   Is DTC B1232 or Error on the DTC screen A-A6 (climate control panel without display) or 0A (climate control panel with display) indicated?

   YES

   Go to step 2.

   NO

   Intermittent failure. Check for loose wires or poor connections on the evaporator temperature sensor circuit.

2. Shorted wire check (TEVA line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Climate control unit connector B (24P)

   -3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Climate control unit connector B (24P): disconnected
   Test point 1	Climate control unit connector B (24P) No. 8
   Test point 2	Body ground

   Is there continuity?

   YES

   Repair a short to ground in the TEVA wire.

   NO

   The TEVA wire is not shorted. Go to step 3.

3. Determine possible failure area (climate control unit, others)

   -1. Measure the resistance between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Climate control unit connector B (24P): disconnected
   Test point 1	Climate control unit connector B (24P) No. 8
   Test point 2	Climate control unit connector B (24P) No. 10

   Courtesy of HONDA, U.S.A., INC.

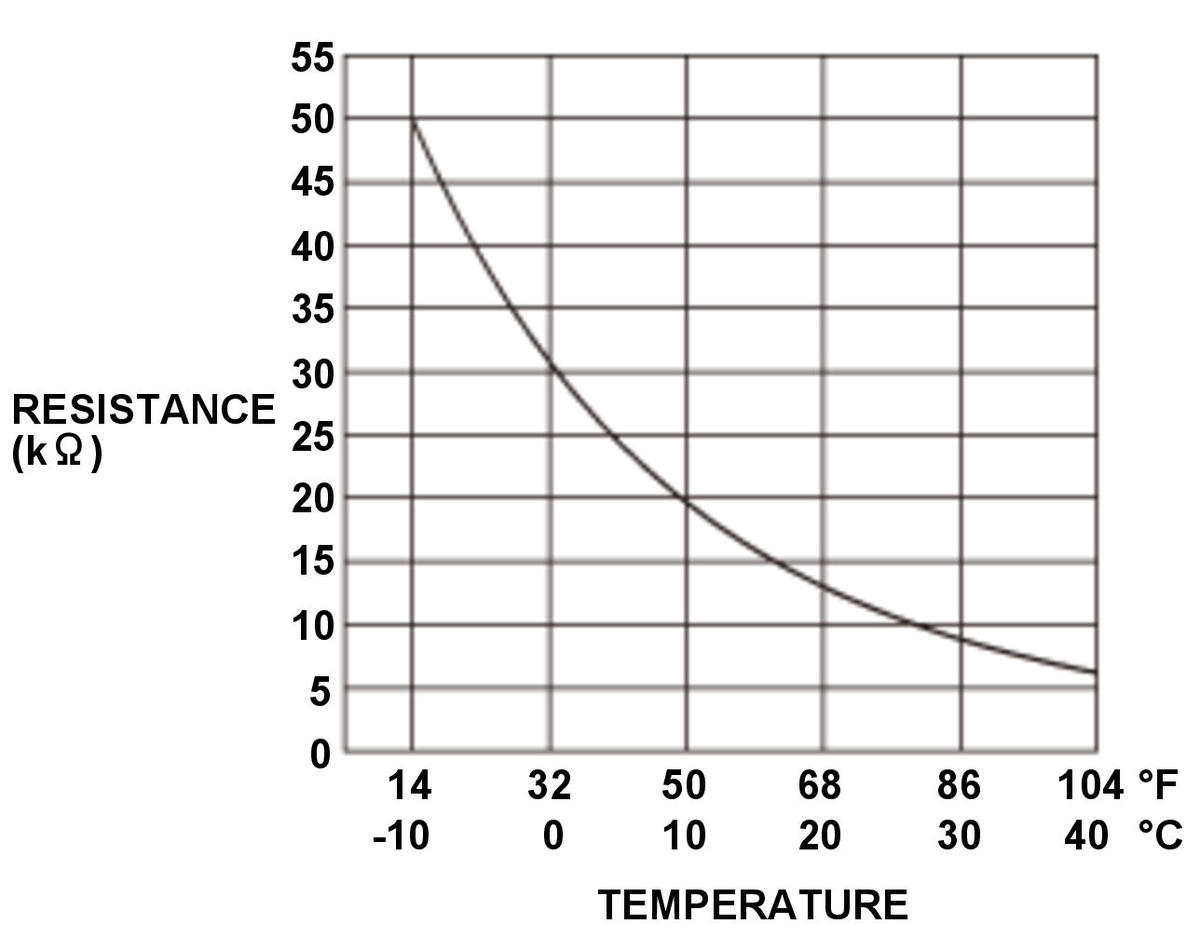

   Is resistance value within the range?

   YES

   Replace the climate control unit .

   NO

   Go to step 4.

4. Shorted wire check (TEVA line to SENS-COM line)

   -1. Disconnect the following connector.

   Evaporator temperature sensor 2P connector

   -2. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Climate control unit connector B (24P): disconnected
   	Evaporator temperature sensor 2P connector: disconnected
   Test point 1	Climate control unit connector B (24P) No. 8

   Test point 2

   Climate control unit connector B (24P) No. 10

   Is there continuity?

   YES

   Repair a short in the TEVA wire to SENS-COM wire.

   NO

   Replace the evaporator temperature sensor .
