Front Individual Map Light Removal, Installation, and Test: Test

WARNING: This page is about a different variant/trim than selected.

Front Individual Map Light - Test

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

NOTE: When doing the front individual map light test, make sure the bulbs are installed correctly and not damaged or burnt out.

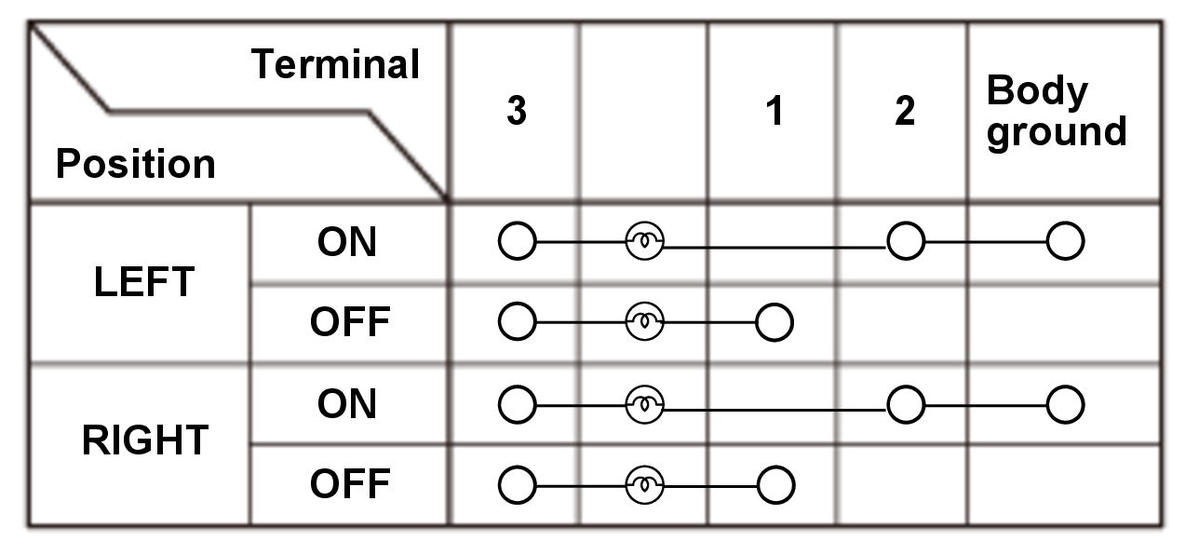

1. Check for continuity between the terminals in each switch position according to the table.

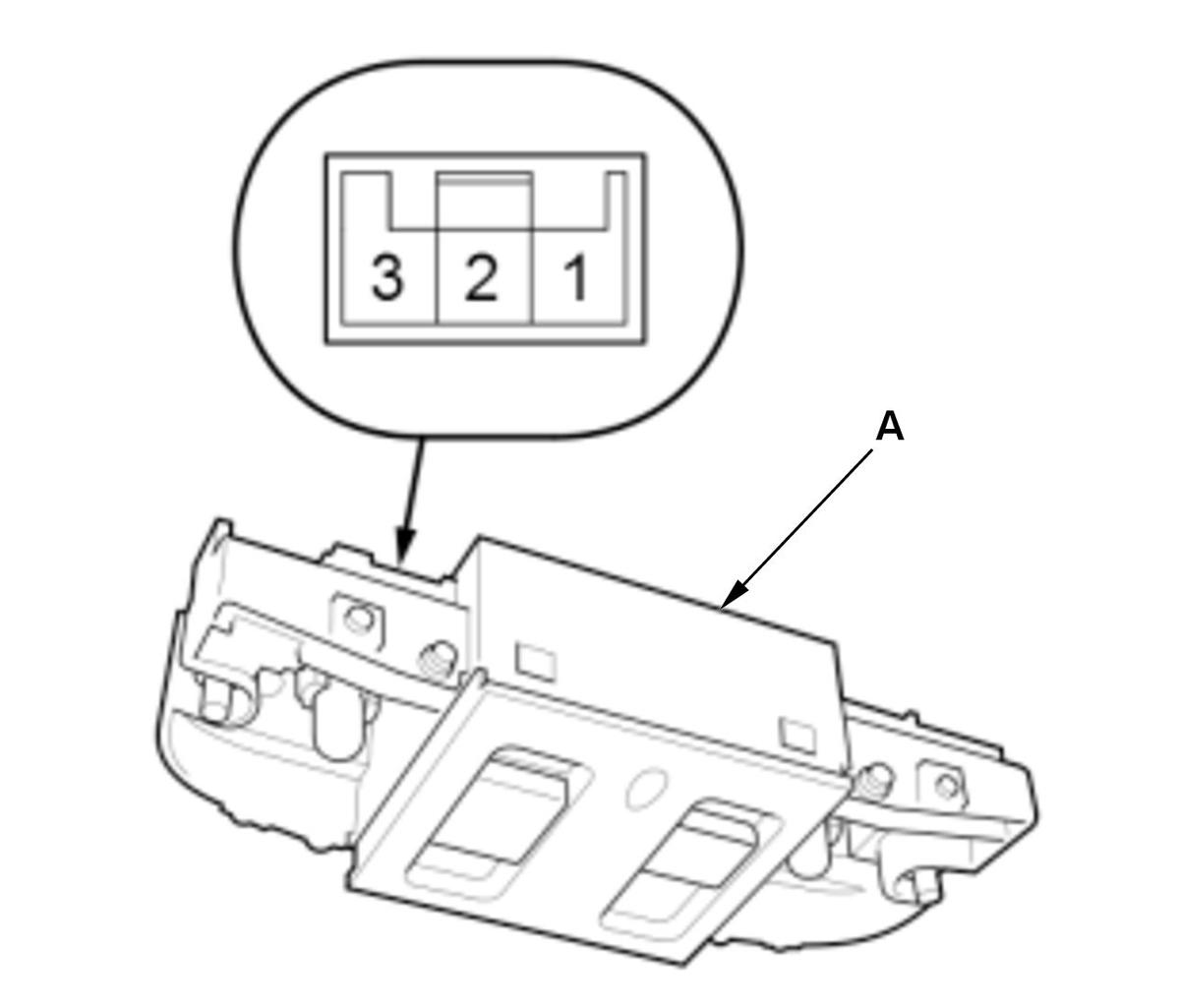

2. If the continuity is not as specified, replace the bulb(s) or the front individual map light (A).
