Ceiling Light Removal, Installation, and Test: Test

WARNING: This page is about a different variant/trim than selected.
  1. Ceiling Light - Test
    GHH379591GHH379592Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH379591GHH379592Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    		 NOTE:  When doing the ceiling light test, make sure the bulbs are installed correctly and not damaged or burnt out.

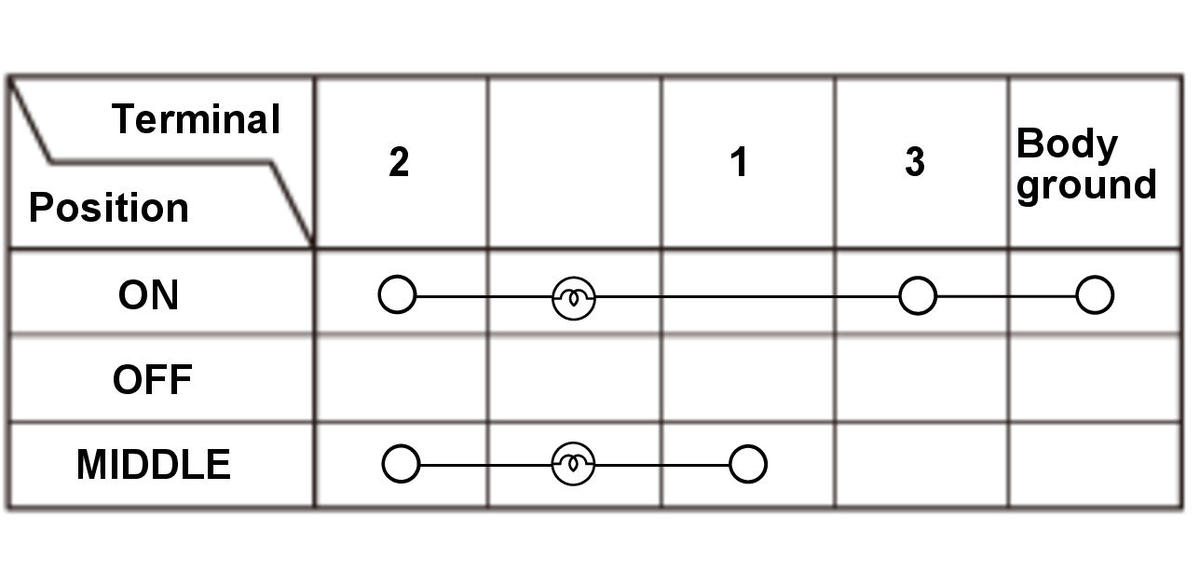

    1. Check for continuity between the terminals in each switch position according to the table.

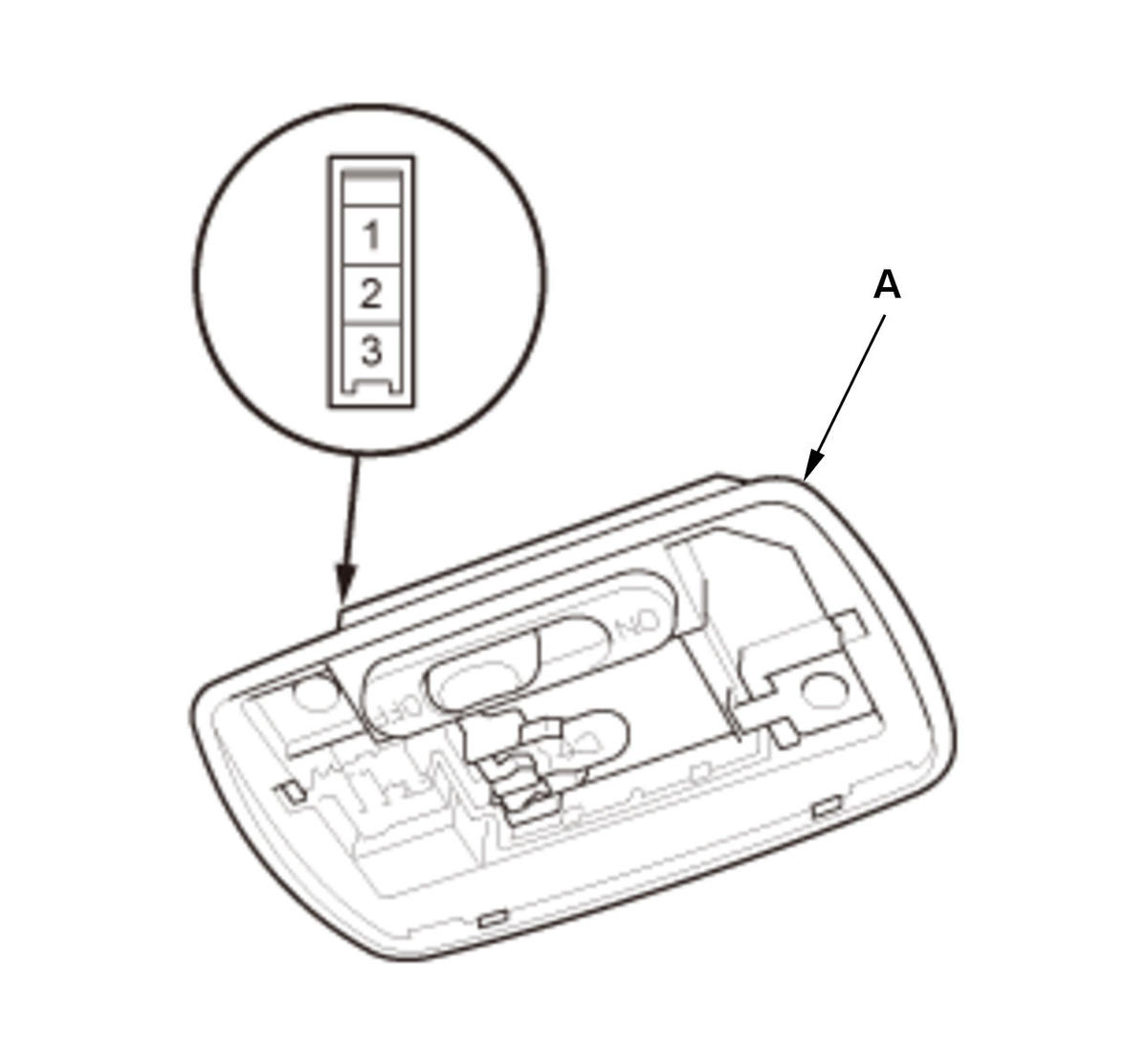

    2. If the continuity is not as specified, replace the bulb or the ceiling light (A).
