Cargo Area Light Removal, Installation, and Test: Test

WARNING: This page is about a different variant/trim than selected.

Cargo Area Light - Test

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

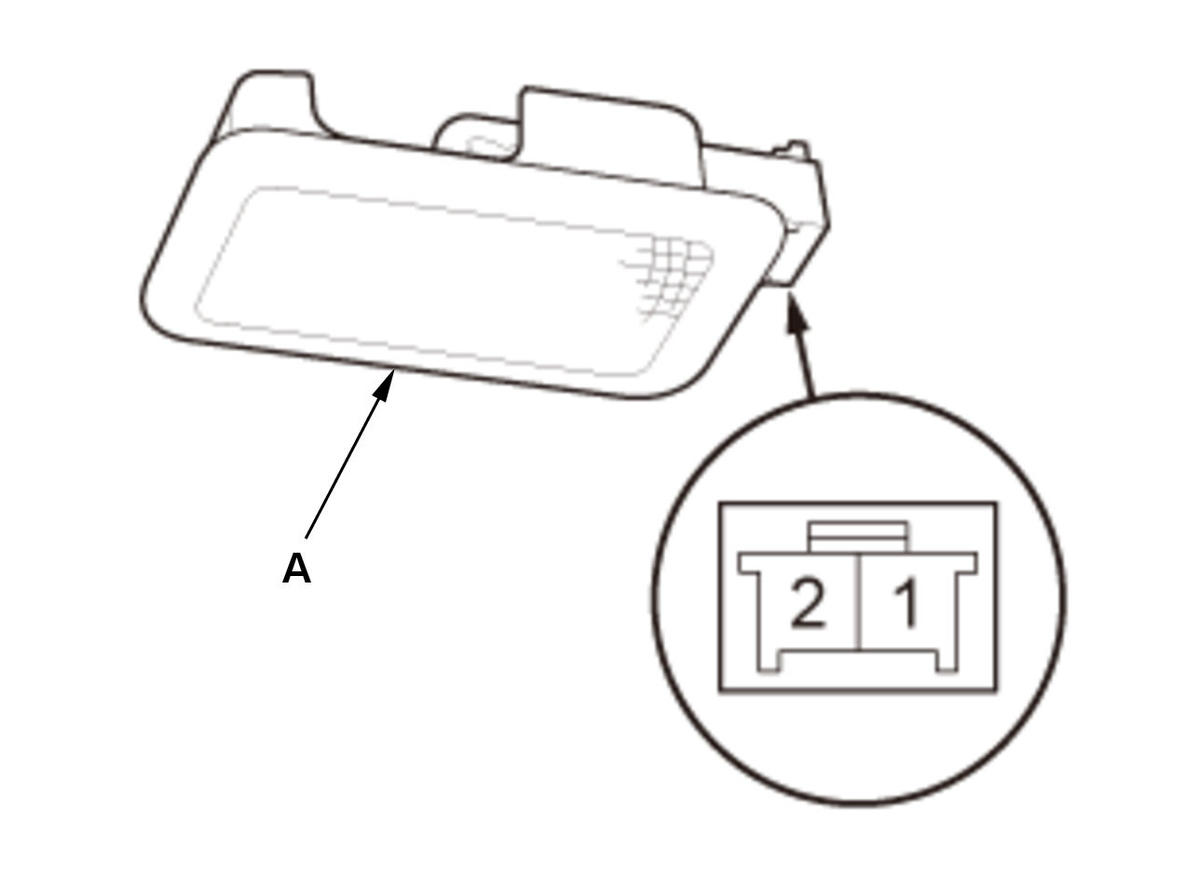

NOTE: When doing the cargo area light (A) test, make sure the bulb is installed correctly and not damaged or burnt out.

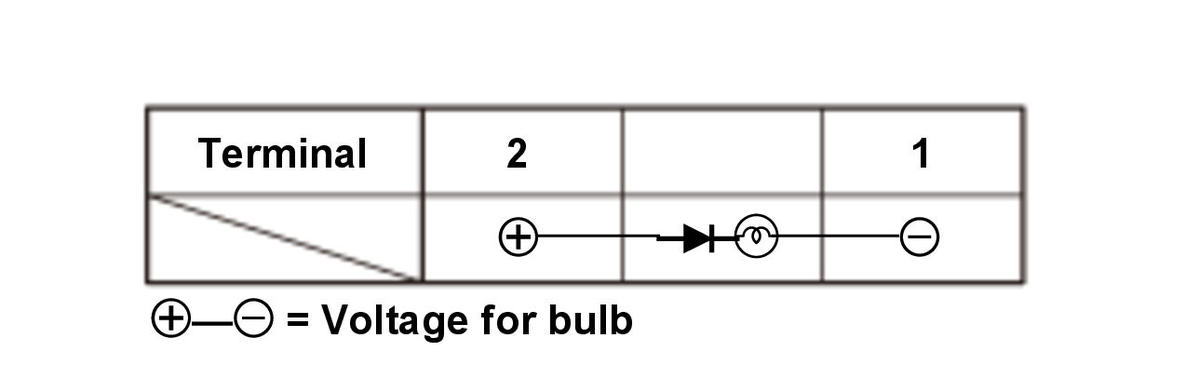

1. Check the light according to the table.

NOTE: Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

2. If the result is not as specified, replace the bulb or cargo area light.
