Ambient Light Removal, Installation, and Test: Test

WARNING: This page is about a different variant/trim than selected.

Ambient Light - Test

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

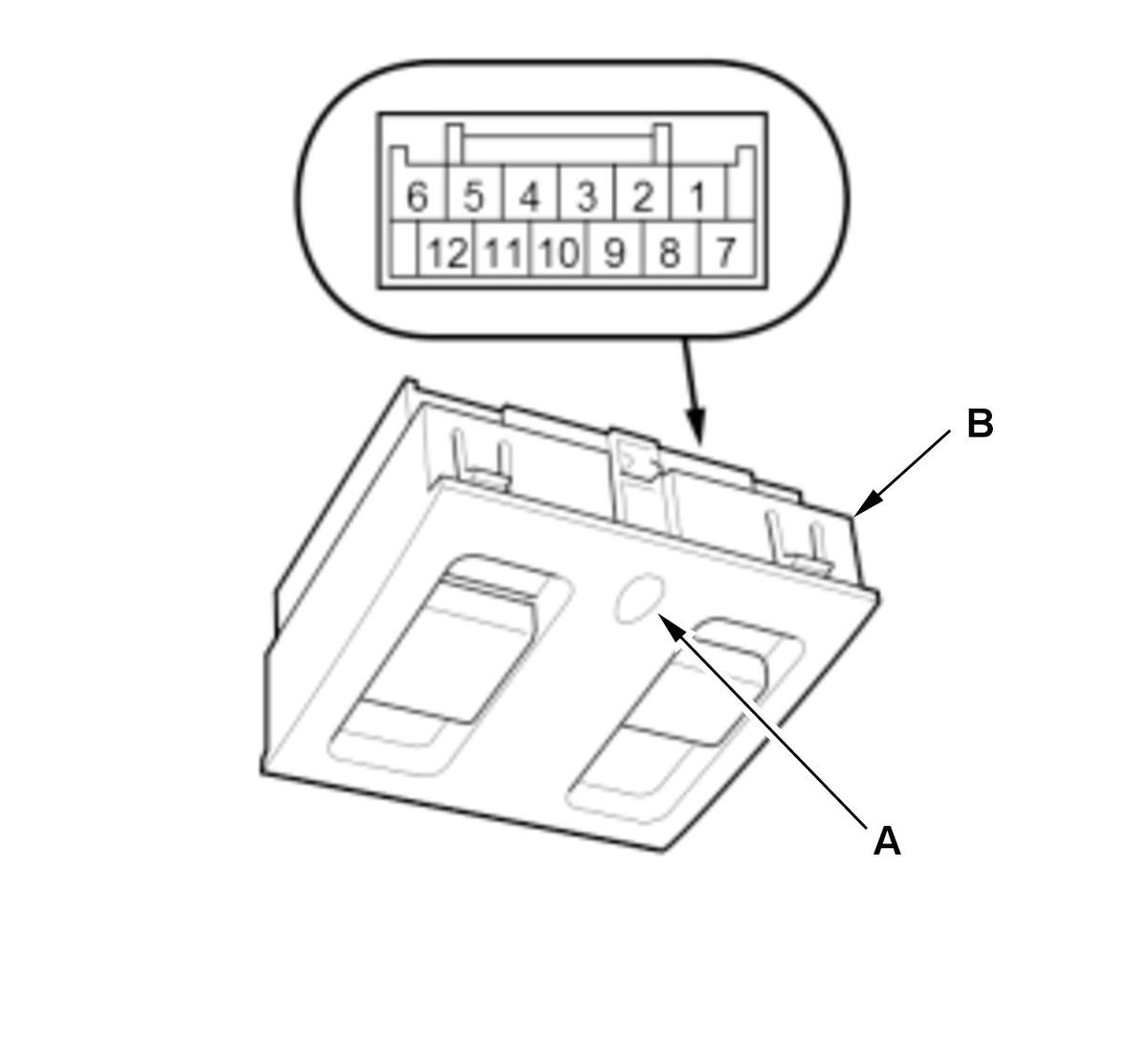

NOTE: The ambient light (A) is built into the interior light switch (B).

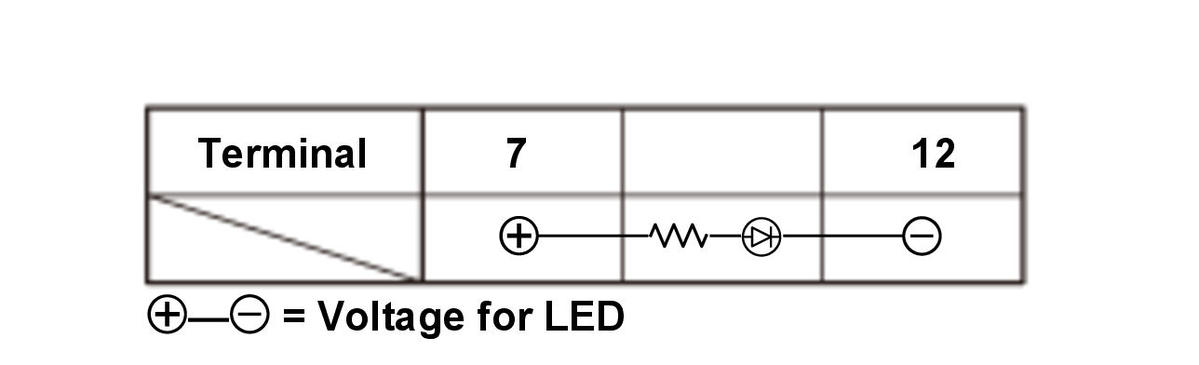

1. Check the lights according to the table.

NOTE:

When an LED is located between terminals, check if the LED illuminates by connecting power and ground to the LED.
Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

2. If the ambient light does not come on, the LED is faulty; replace the interior light switch .
