Moonroof Motor-Control Unit Connector for Inputs and Outputs
WARNING: This page is about a different variant/trim than selected.

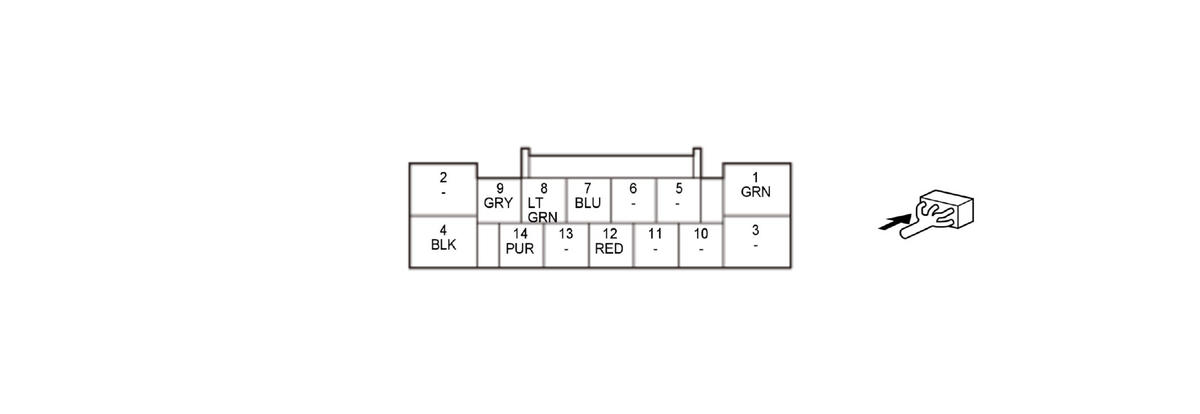

Moonroof Motor-Control Unit 14P Connector (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | +B_SUNROOF | +B power source | About battery voltage at all times |
| 2 | --- | Not used | --- |
| 3 | --- | Not used | --- |
| 4 | GND | Moonroof motor-control unit ground | Less than 0.2 V at all times |
| 5 | --- | Not used | --- |
| 6 | --- | Not used | --- |
| 7 | S/R_SW_OPEN | Detects moonroof switch OPEN signal | With moonroof switch OPEN: less than 0.2 V With moonroof switch any other than OPEN and moonroof motor-control unit is wakeup mode: about battery voltage |
| 8 | S/R_SW_TILT | Detects moonroof switch TILT signal | With moonroof switch TILT: less than 0.2 V With moonroof switch any other than TILT and moonroof motor-control unit is wakeup mode: about battery voltage |
| 9 | S/R_SW_CLOSE | Detects moonroof switch CLOSE signal | With moonroof switch CLOSE: less than 0.2 V With moonroof switch any other than CLOSE and moonroof motor-control unit is wakeup mode: about battery voltage |
| 10 | --- | Not used | --- |
| 11 | --- | Not used | --- |
| 12 | LIN(P/W) | Communication line | --- |
| 13 | --- | Not used | --- |
| 14 | S/R_SW_AUTO | Detects moonroof switch AUTO signal | With moonroof switch AUTO: less than 0.2 V With moonroof switch any other than AUTO and moonroof motor-control unit is wakeup mode: about battery voltage |
