Section 97 (Moonroof - Testing & Troubleshooting (Hybrid))
>>
Circuit Diagram
>>

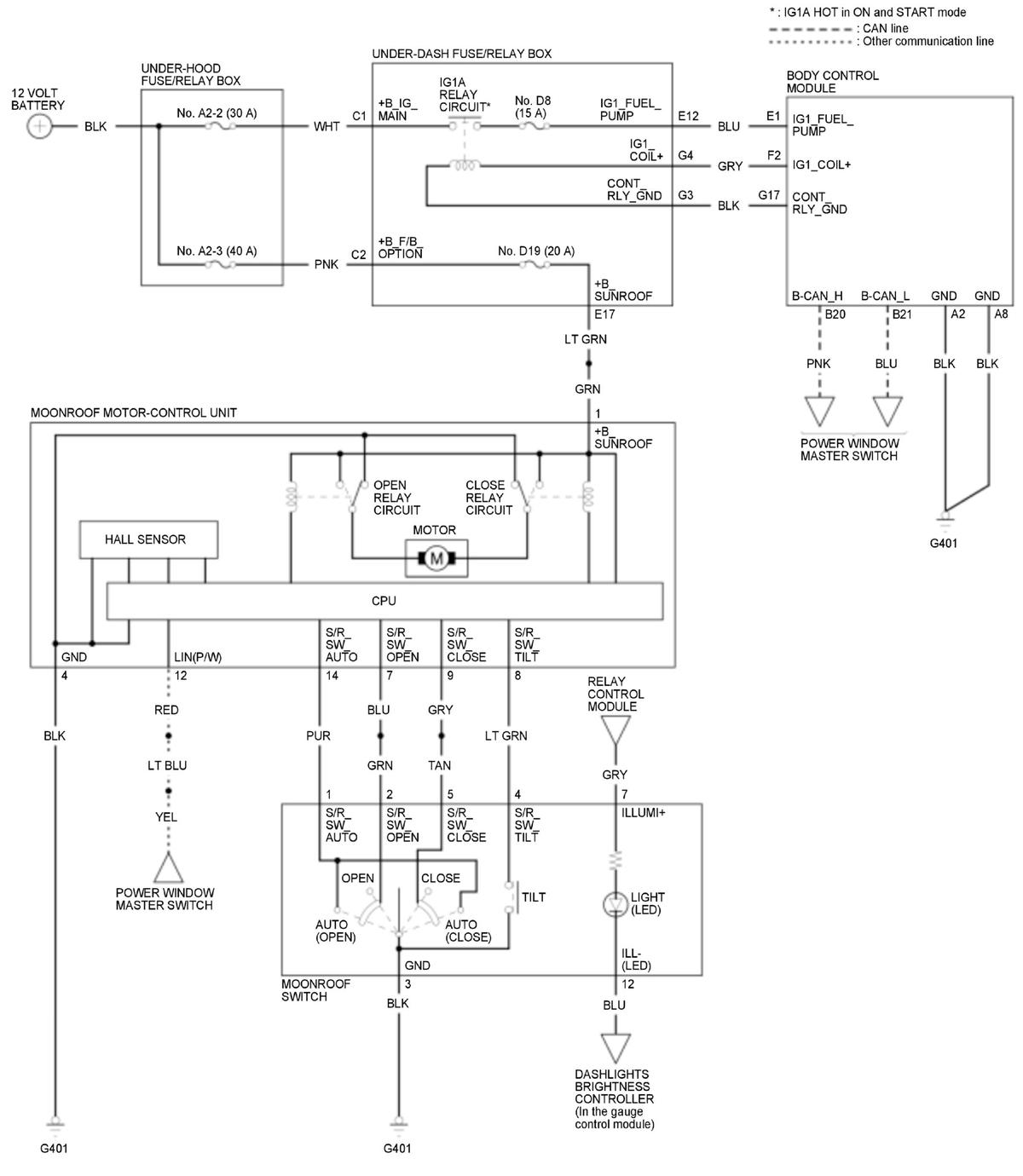

Moonroof Circuit Diagram
Moonroof Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of HONDA, U.S.A., INC.
