Power Mirrors Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

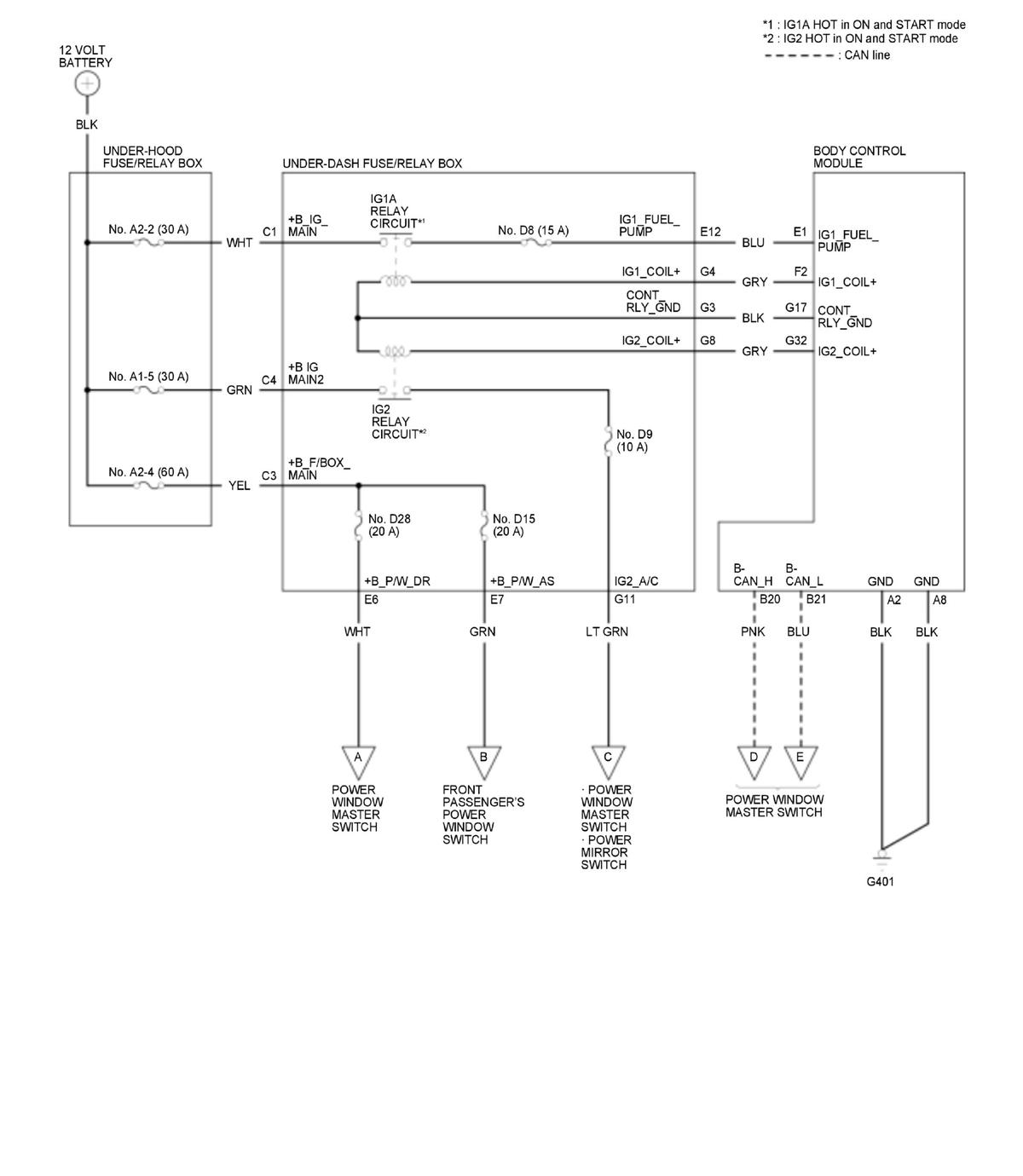

GHH379880Courtesy of HONDA, U.S.A., INC.

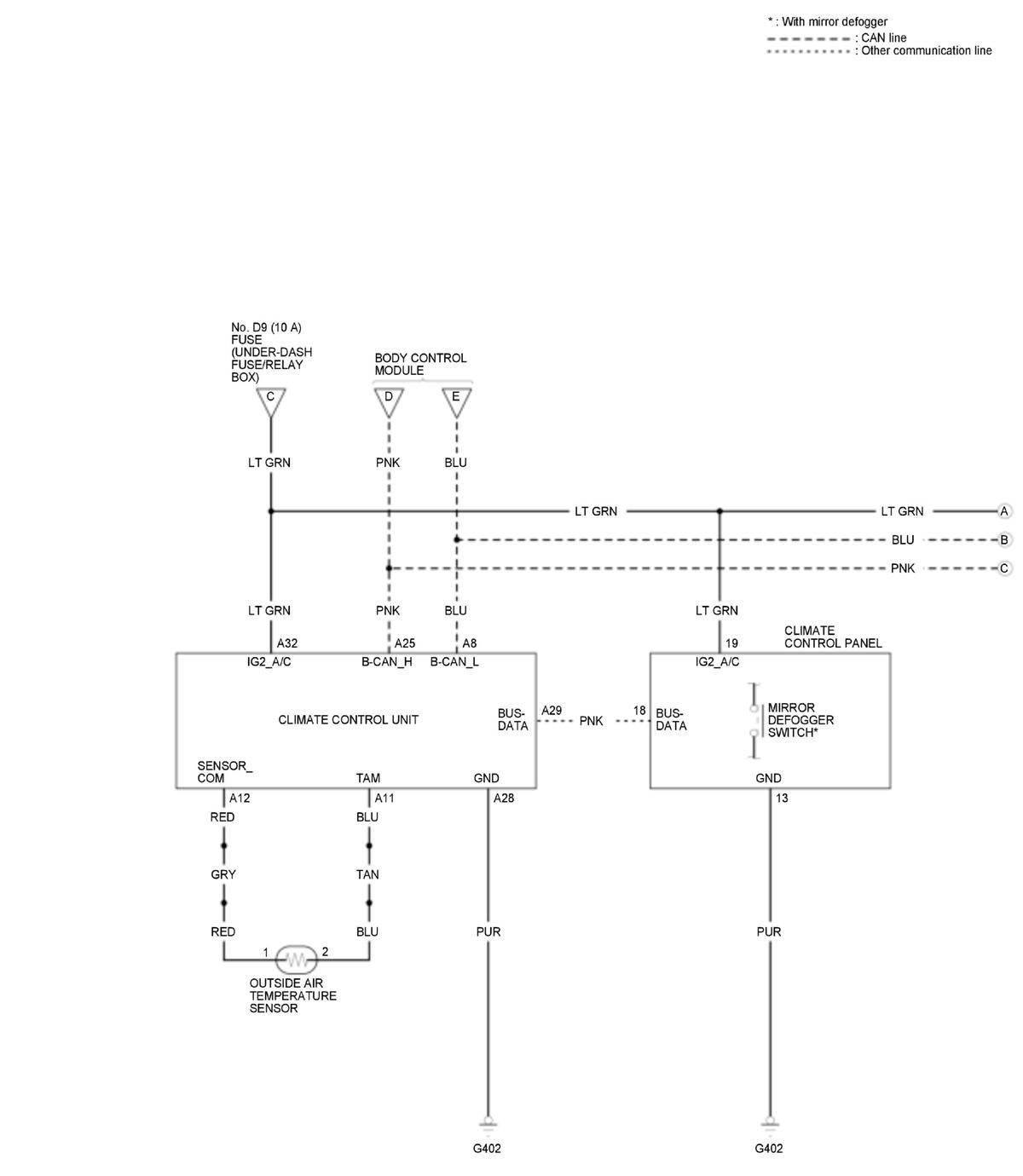

GHH379881Courtesy of HONDA, U.S.A., INC.

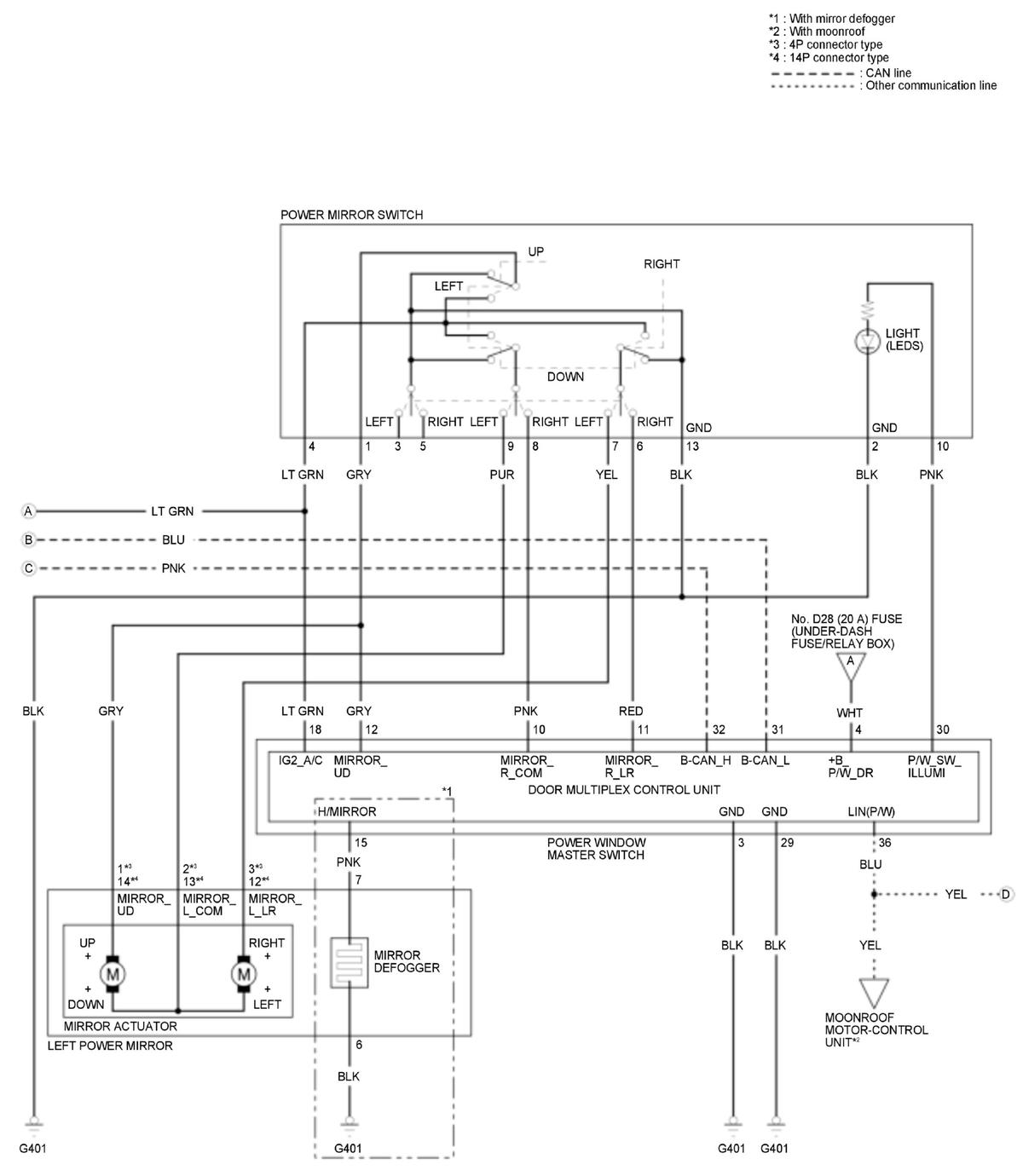

GHH379882Courtesy of HONDA, U.S.A., INC.

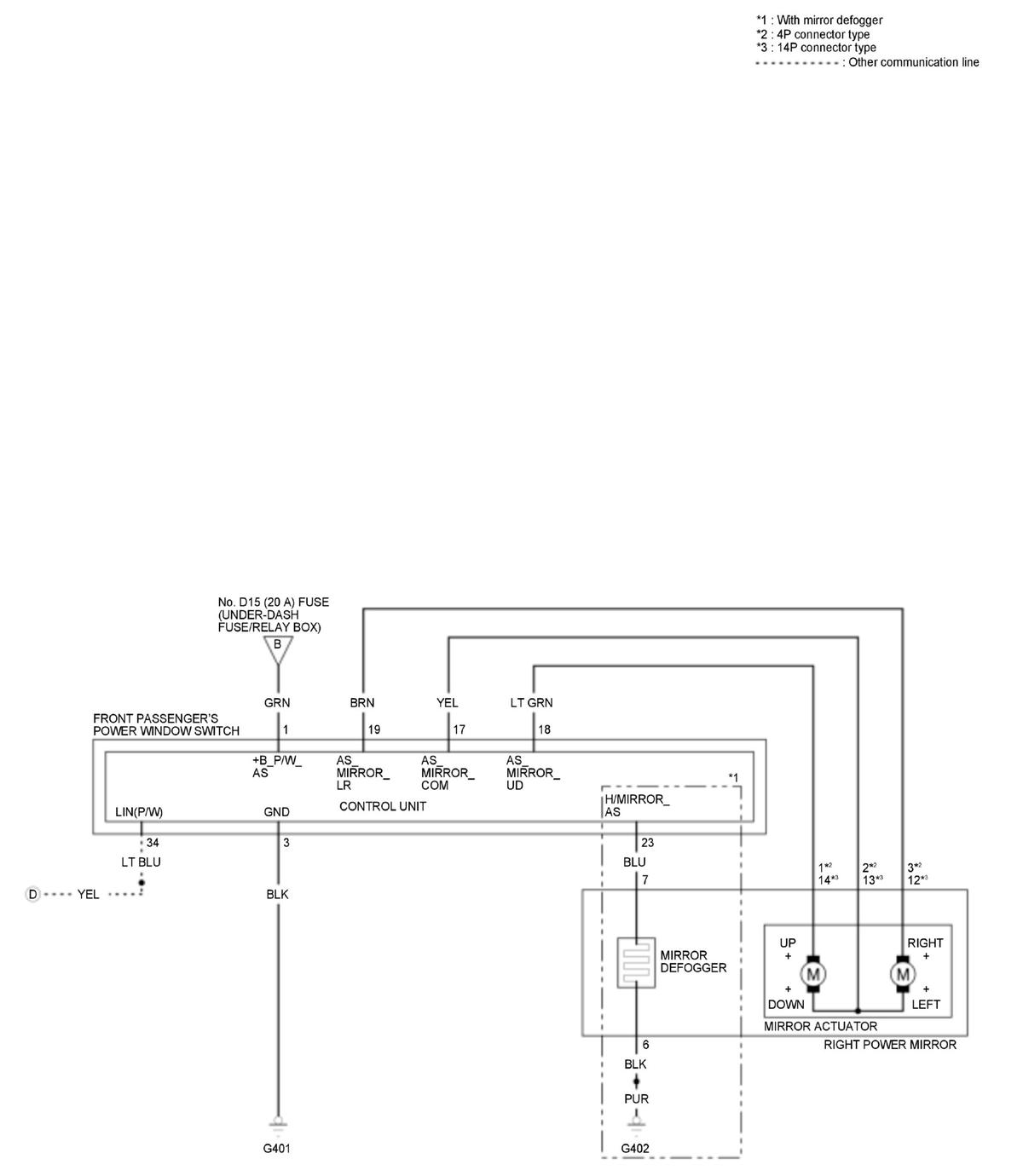

GHH379883Courtesy of HONDA, U.S.A., INC.
