Power Lumbar Support Switch Removal, Installation, and Test: Test

WARNING: This page is about a different variant/trim than selected.

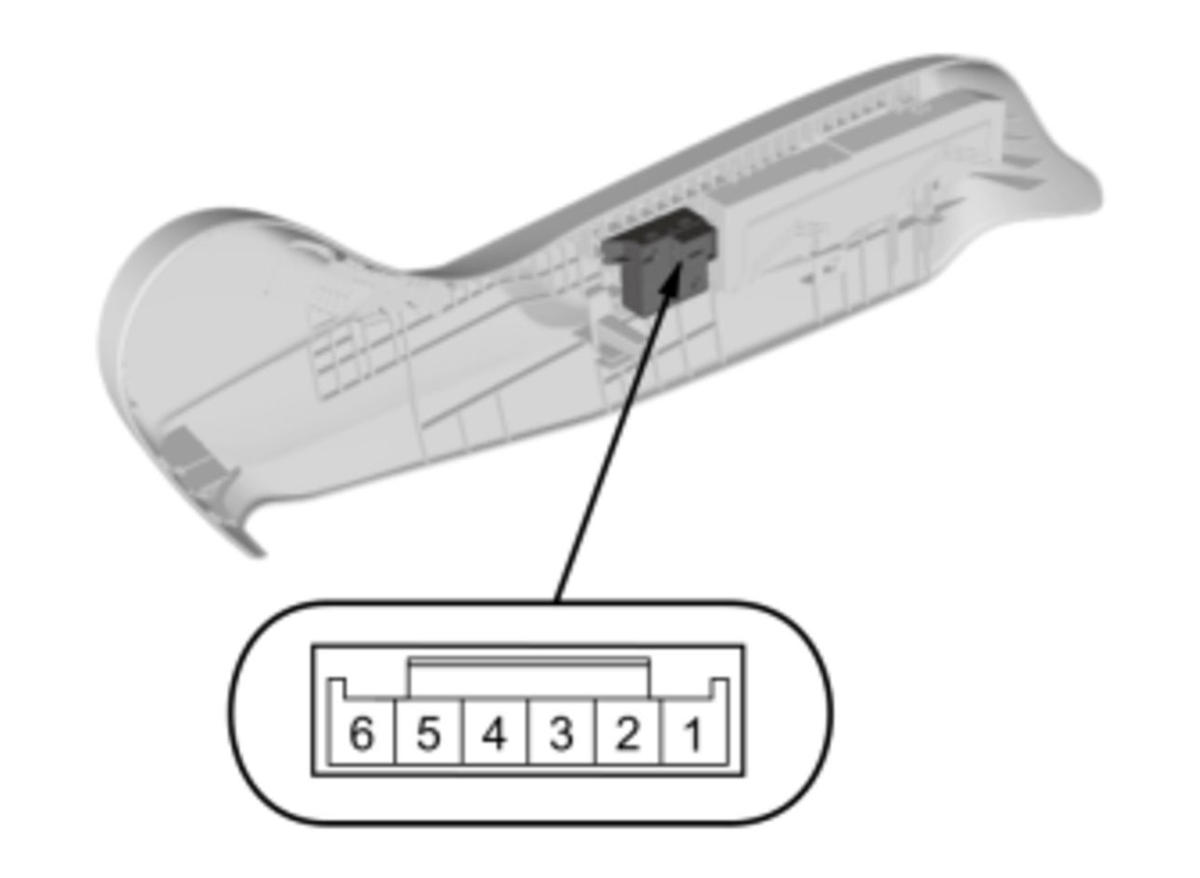

  1. Power Lumbar Support Switch - Test
    GHH380806GHH380807Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH380806GHH380807Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

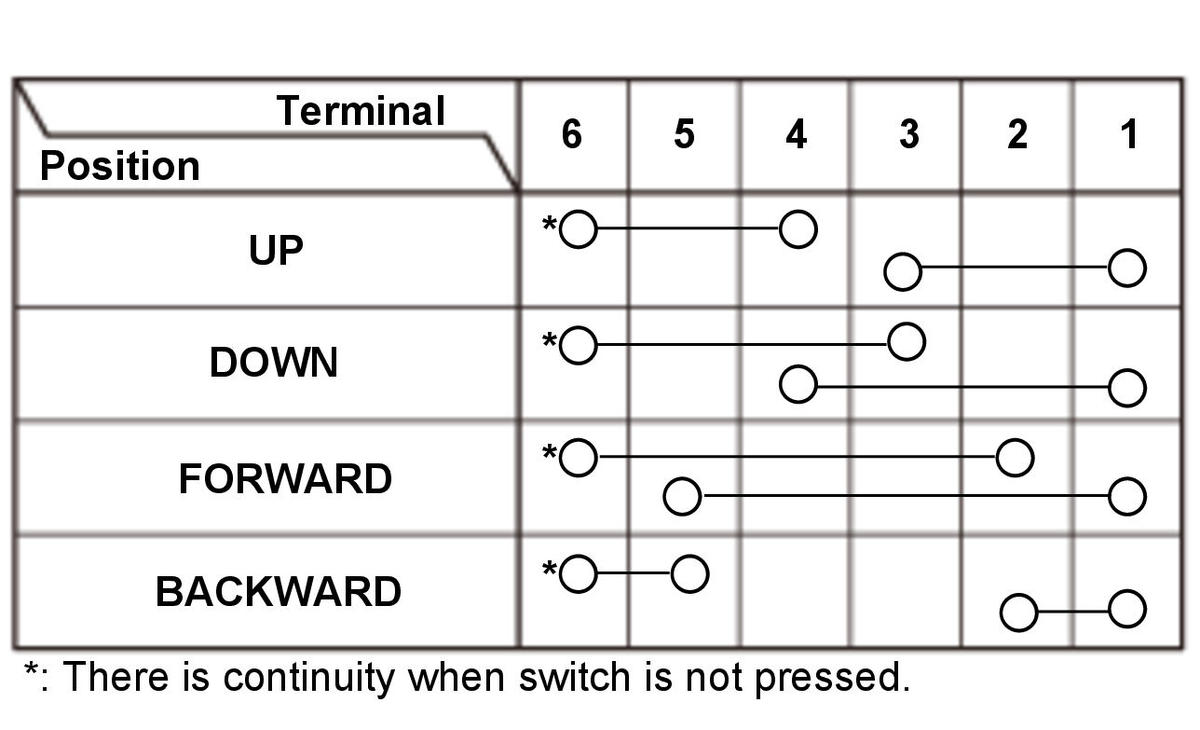

    		 1. Check for continuity between the terminals in each switch position according to the table.

    2. If the continuity is not as specified, replace the power lumbar support switch.
