Removal and Installation

Rear Seat Release Cable (Body Side)

1. Rear Side Trim Panel - Remove
2. Rear Seat Release Lever/Cable - Remove

   Courtesy of HONDA, U.S.A., INC.

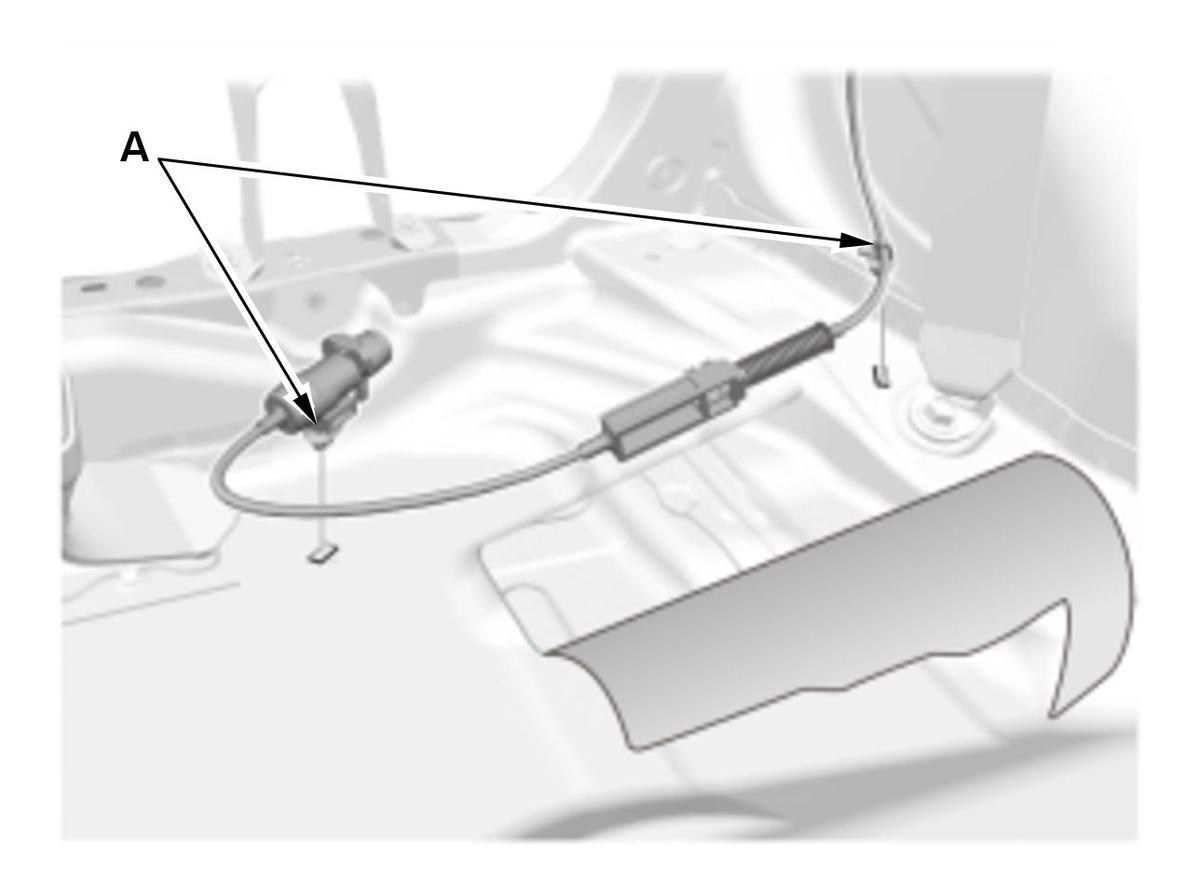

   1. Remove the cable clips (A).

   Courtesy of HONDA, U.S.A., INC.

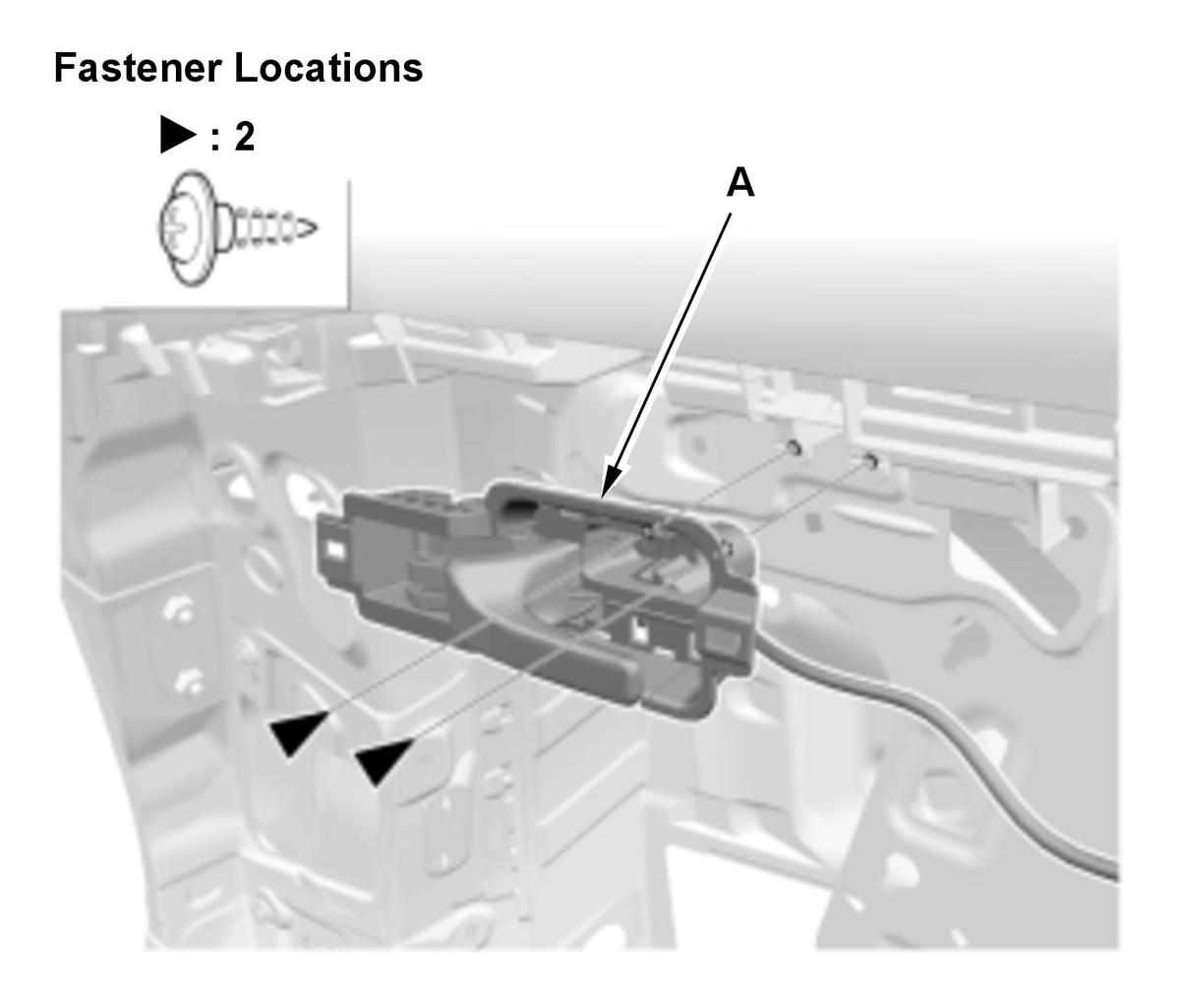

   2. Remove the rear seat release lever (A).

   Courtesy of HONDA, U.S.A., INC.

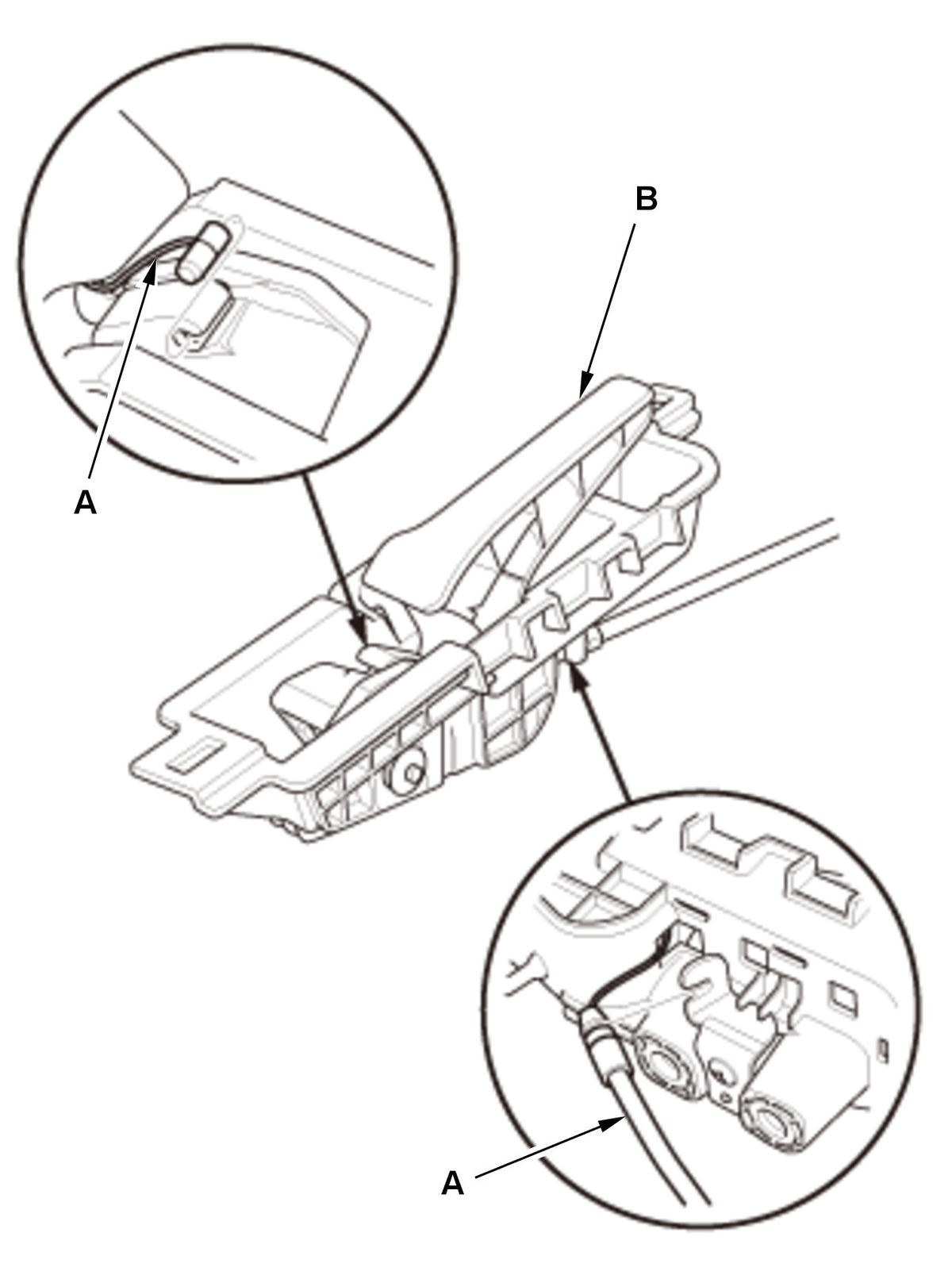

   3. Disconnect the rear seat release cable (A) from the release lever (B).

3. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.

Rear Seat Upper Cable (Seat Side)

1. Rear Seat-Back Cover/Pad - Remove
2. Rear Seat Upper Cable - Remove

   Courtesy of HONDA, U.S.A., INC.

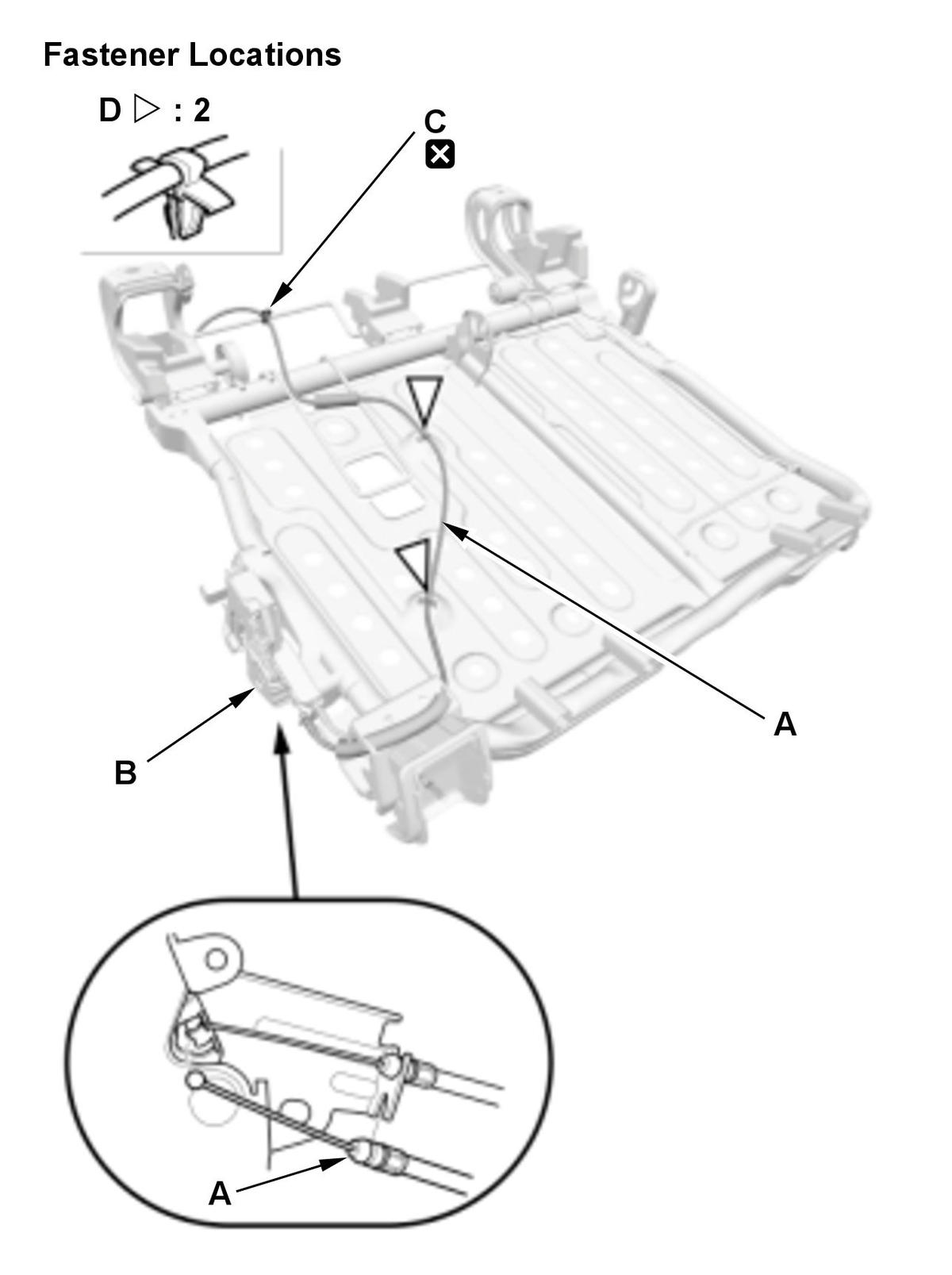

   1. Disconnect the rear seat upper cable (A) from the rear seat-back latch (B). 2. Remove the wire tie (C) and the cable clips (D).

3. All Removed Parts - Install

   1. Install the parts in the reverse order of removal. NOTE:  Replace the wire tie fastening the rear seat upper cable with a new one.
