Cooling Fan Controls System Description - Overview
WARNING: This page is about a different variant/trim than selected.
For locations of each component on vehicle, refer to Component Location Index .
Overview
Cooling Fan Control

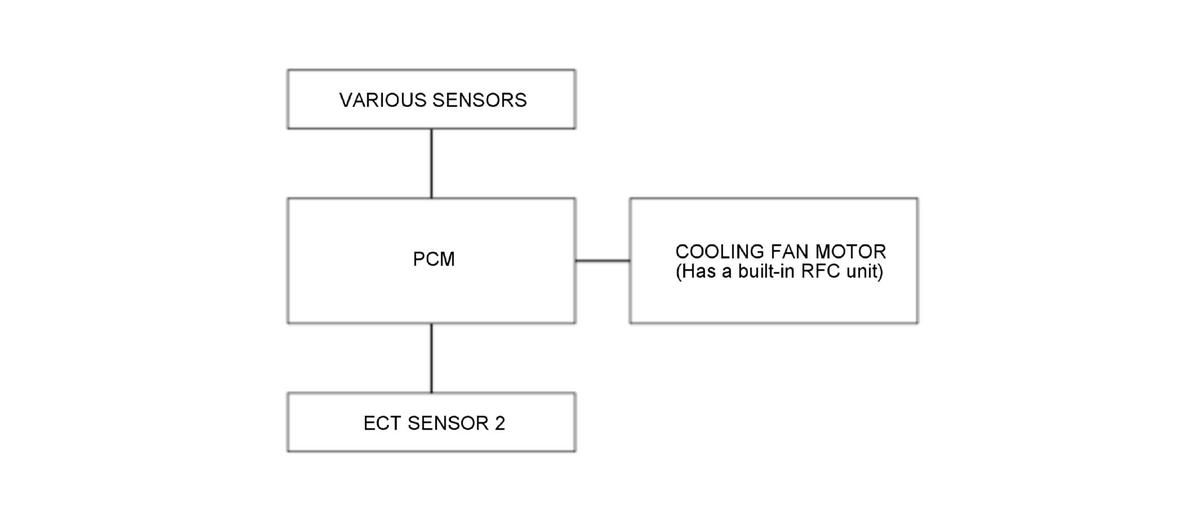

The PCM decides the optimal fan drive depending on the signals from various sensors, and outputs duty signals to control the cooling fan motor. By performing a sensitive drive control depending on the situation, it efficiently maintains the temperature of the coolant, and reduces fan noise. ECT sensor 2 detects the temperature of the coolant.
