Removal and Installation: Procedure

WARNING: This page is about a different variant/trim than selected.

NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

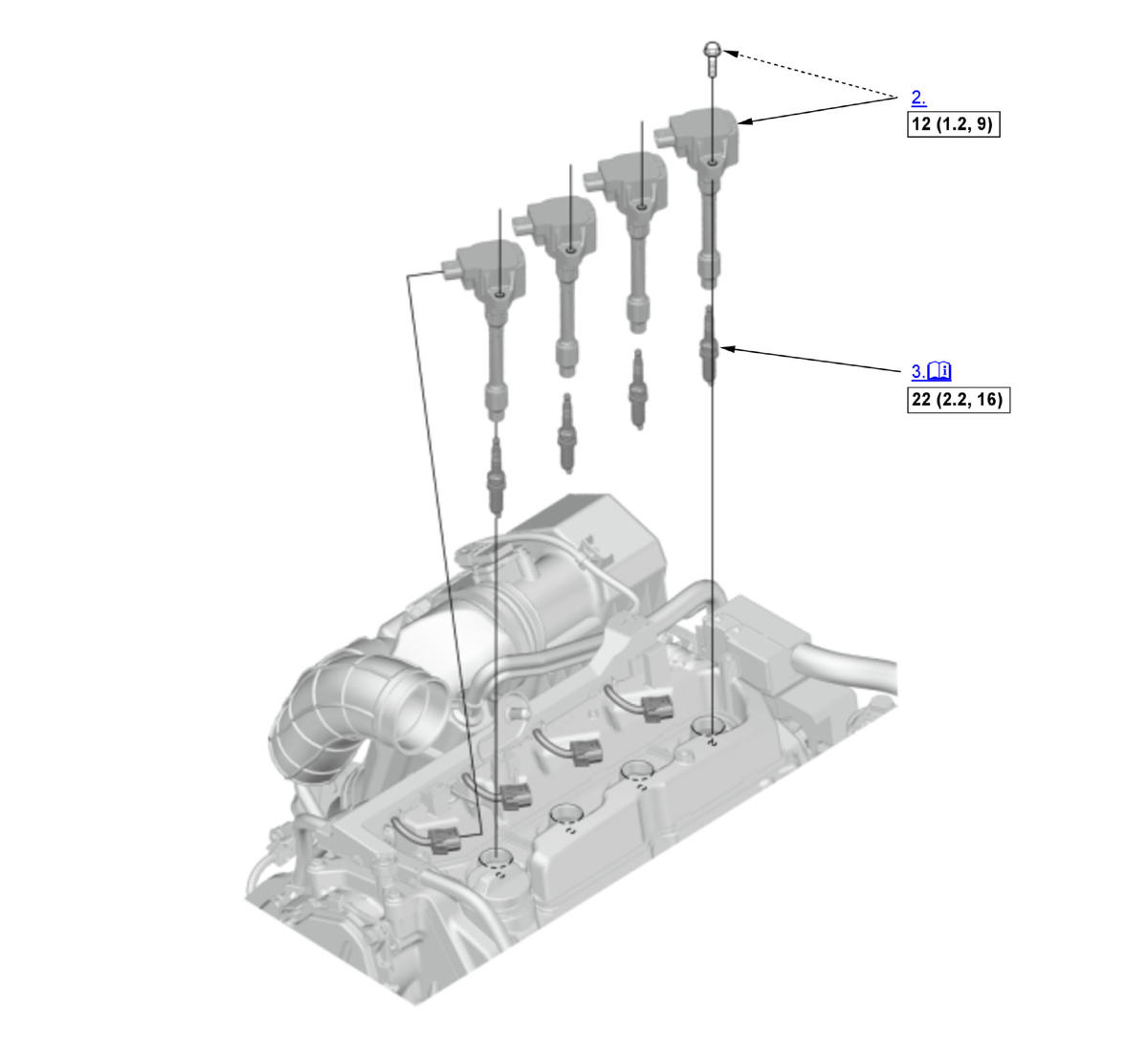

Fig 1: Ignition Coil And Spark Plug Replacement Components With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

Torque: N.m (kgf.m, lbf.ft)

Intake Air Resonator - Remove
Ignition Coil - Remove
Spark Plug - Remove
Note for installation

Screw the spark plugs into the cylinder head, finger-tight, then tighten the spark plugs to the specified torque.
All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Maintenance Minder - Reset (With Maintenance Minder System)

1. If the Maintenance Minder required to replace the spark plugs, reset the Maintenance Minder with the gauge (see "Resetting the Maintenance Minder").
