Intake Rocker Arm Assembly Disassembly

WARNING: This page is about a different variant/trim than selected.
NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

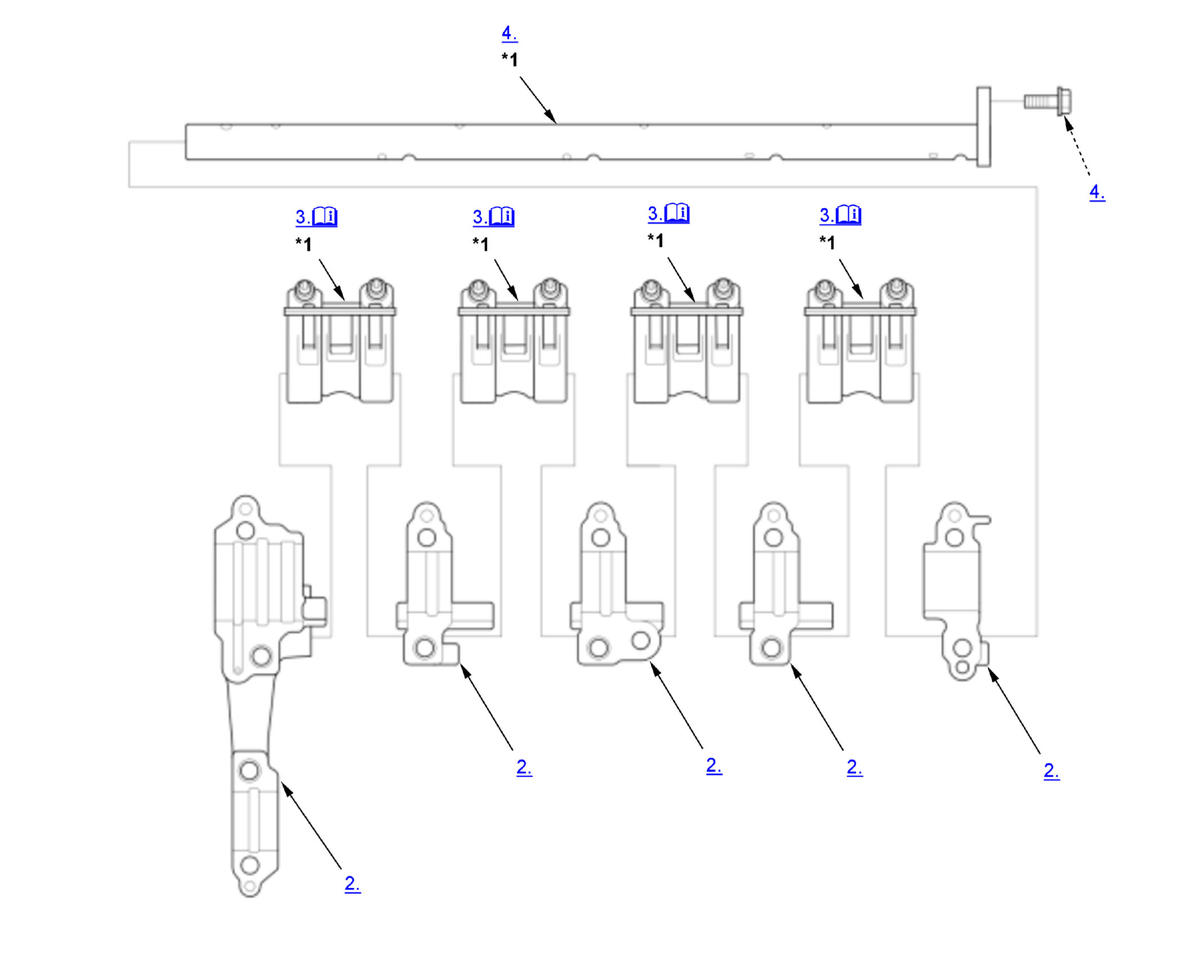

Fig 1: Intake Rocker Arm Assembly Disassembly Components
GHH378187Courtesy of HONDA, U.S.A., INC.
*1 These parts have inspection items
  1. Intake Rocker Arm Assembly - Remove
  2. Rocker Shaft Holder - Remove
  3. Intake Rocker Arm Assembly - Remove

    NOTE:

    • Identify parts as they are removed so they can be reinstalled in its original locations.
    • If reused, the rocker arms must be installed in their original location.
    • Bundle the intake rocker arms with rubber bands to keep them together as a set, and remove the bands after the intake rocker arms have been installed.
    • When replacing the intake rocker arm assembly, remove the fastening hardware from the new intake rocker arm assembly.
  4. Intake Rocker Shaft - Remove
