Intake Rocker Arm Assembly Reassembly

WARNING: This page is about a different variant/trim than selected.

NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

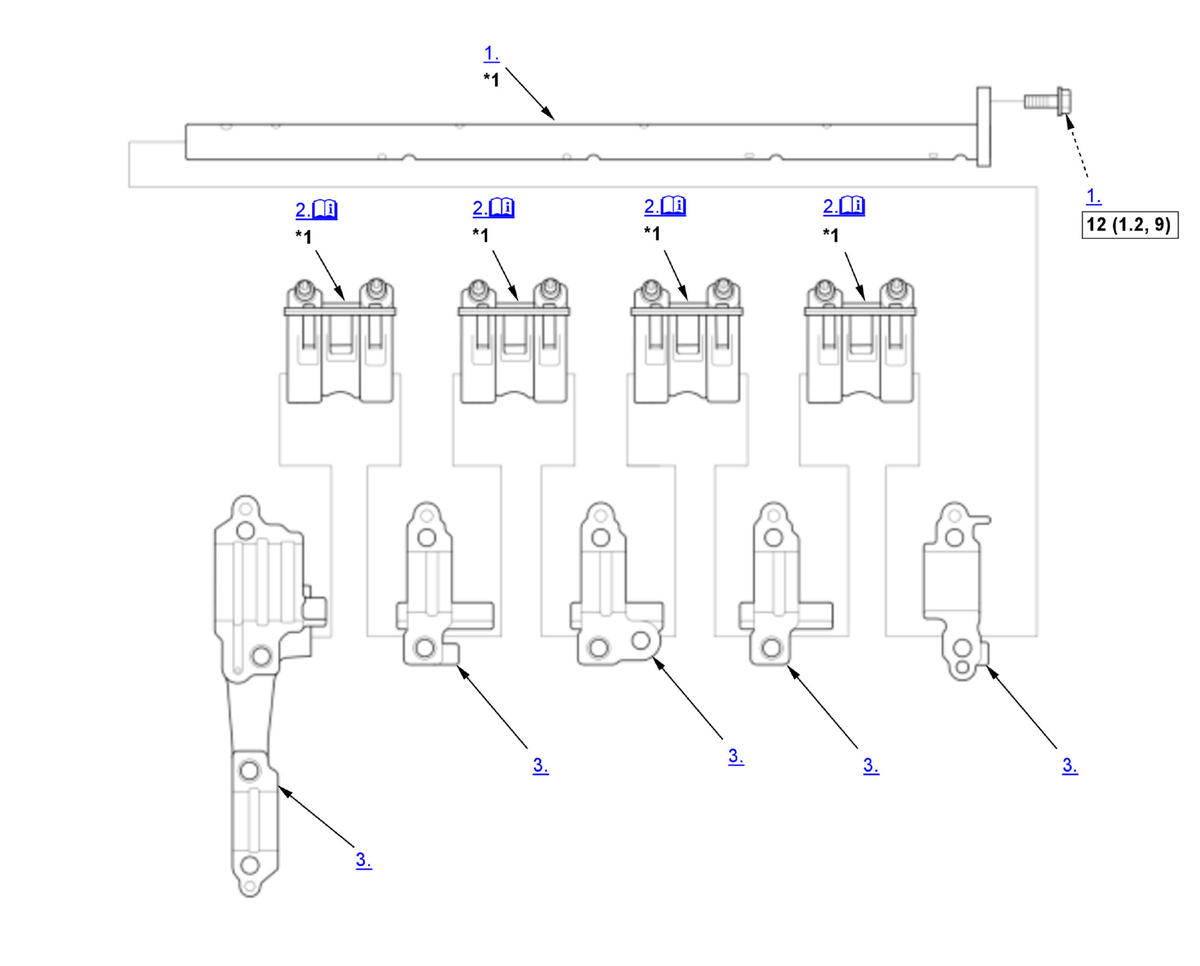

Fig 1: Intake Rocker Arm Assembly Reassembly Components With Torque Specifications

GHH378208

Courtesy of HONDA, U.S.A., INC.

	Torque: N.m (kgf.m, lbf.ft)
*1	These parts have inspection items

Intake Rocker Shaft - Install
Intake Rocker Arm Assembly - Install
NOTE:
- If reused, the rocker arms must be installed in their original locations.
- Bundle the intake rocker arms with rubber bands to keep them together as a set, and remove the bands after the intake rocker arms have been installed.
- Prior to reassembling, clean all the parts in solvent, dry them, and apply new engine oil to all contact points and the bearing surface.
- When replacing the intake rocker arm assembly, remove the fastening hardware from the new intake rocker arm assembly.
Rocker Shaft Holder - Install
Intake Rocker Arm Assembly - Install
