DTC P271A
DTC P271A : Park Pawl Position Sensor A Circuit Low

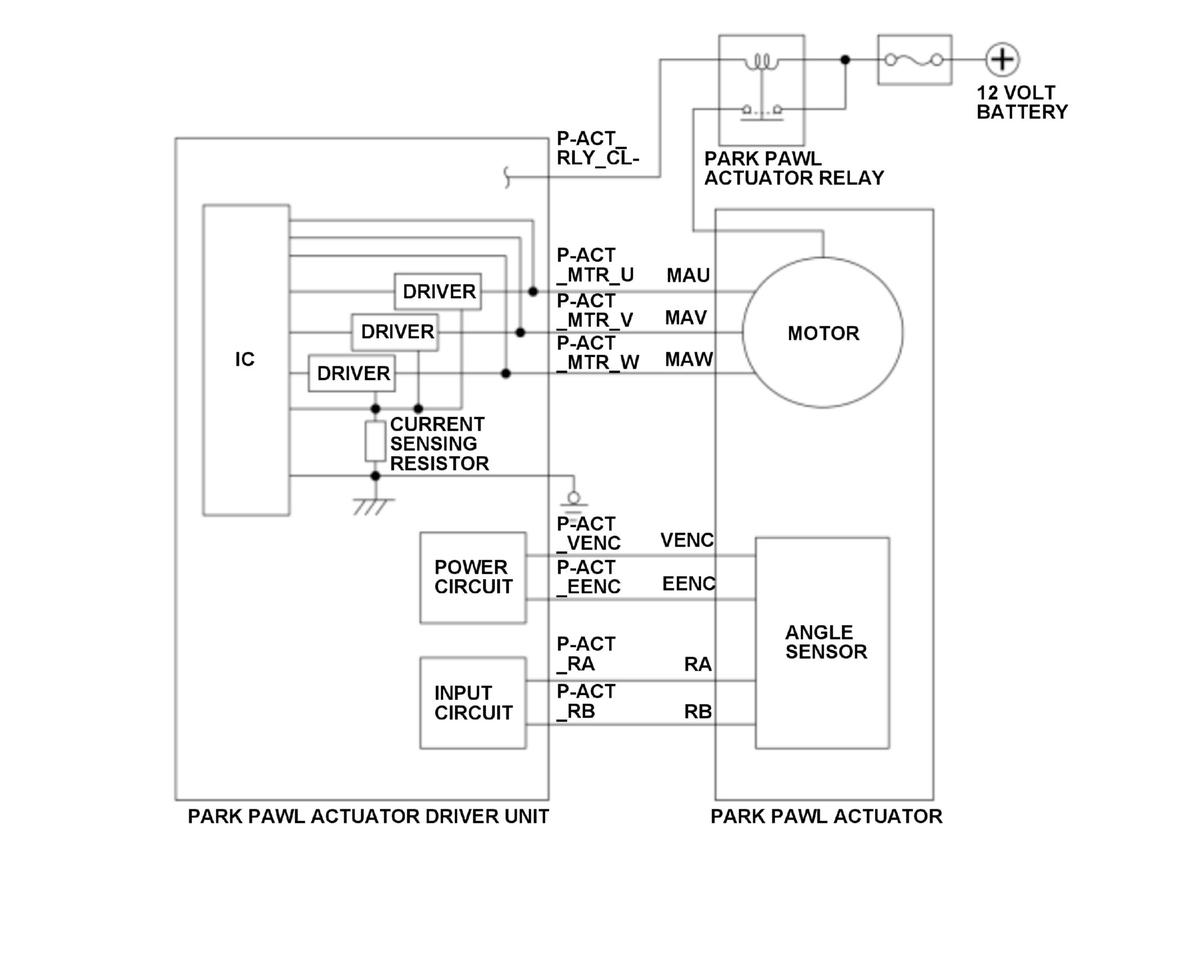

General Description
The park pawl actuator driver unit performs the initial learning and controls the park pawl actuator to switch the position to parking or non-parking by the command from the powertrain control module (PCM). If any abnormalities occur in the angle sensor in the park pawl actuator and the condition continues for a set time, the PCM receives a malfunction from the park pawl actuator driver unit and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | - |
| Sequence | None |
| Duration | 932 milliseconds*104 milliseconds**30 seconds*** |
| DTC Type | One drive cycle, MIL off, shift position indicator blinks |
*: Case 1
**: Case 2
***: Case 3
Enable Conditions
| Condition | Minimum | Maximum |
|---|---|---|
| 12 volt battery voltage [Battery Voltage] | 10.5 V*, ** | - |
| 10.43 V*** | - |
Malfunction Threshold
Any of these conditions is met:
- Case 1
The output value of the angle sensor in the park pawl actuator remains unchanged for 932 milliseconds or more during the initial learning.
- Case 2
The output value of the angle sensor in the park pawl actuator remains unchanged for 104 milliseconds or more when the switching to the parking position or the non-parking position.
- Case 3
The 12 volt battery voltage exceeds the specified value after the 12 volt battery voltage continues to be less than the specified value for at least 30 seconds during the initial learning.
Possible Cause
NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- Park pawl actuator driver unit RA/P-ACT_RA line open
- Park pawl actuator driver unit RB/P-ACT_RB line open
- Park pawl actuator driver unit VENC/P-ACT_VENC line open
- Park pawl actuator driver unit EENC/P-ACT_EENC line open
- Park pawl actuator driver unit RA/P-ACT_RA line short to ground
- Park pawl actuator driver unit RB/P-ACT_RB line short to ground
- Park pawl actuator driver unit VENC/P-ACT_VENC line short to ground
- Park pawl actuator driver unit EENC/P-ACT_EENC line short to ground
- Park pawl actuator driver unit RA/P-ACT_RA line short to power
- Park pawl actuator driver unit RB/P-ACT_RB line short to power
- Park pawl actuator driver unit EENC/P-ACT_EENC line short to power
- Park pawl actuator power supply line abnormal (include fuse blown)
- Park pawl actuator driver unit GND line open
- Park pawl actuator driver unit power supply line abnormal (include fuse blown)
- 12 volt battery abnormal
- Park pawl actuator driver unit internal circuit failure
Confirmation Procedure
Operating Condition
- Turn the vehicle to the ON mode, and wait at least 10 seconds.
- While pressing the brake pedal, shift the transmission to N, D, and R position/mode, then shift transmission to P position/mode and wait at least 5 seconds.
With the HDS
None.
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected, the shift position indicator blinks and a Pending DTC, a Confirmed DTC, and the freeze data are stored in the PCM memory. The MIL does not come on.
Conditions for clearing the DTC
The shift position indicator comes off by turning the vehicle to the OFF (LOCK) mode. The Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the 12 volt battery.
